Typical Characteristics

THVD1428 D101_SLLSF32.gif
DE = VCC D = 0 V
Figure 1. Driver Output Voltage vs Driver Output Current
THVD1428 D103_SLLSF32.gif
DE = VCC TA = 25°C RL = 54 Ω

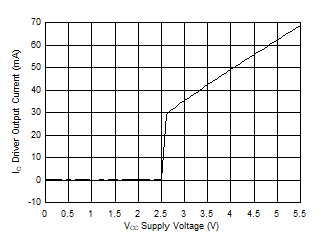

Figure 3. Driver Output Current vs Supply Voltage

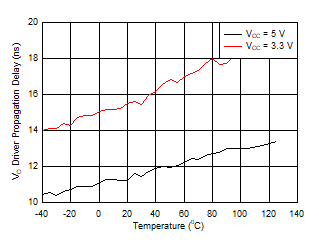

THVD1428 D105_SLLSF32.gifFigure 5. Driver Propagation Delay vs Temperature
THVD1428 D102_SLLSF32.gif
DE = VCC D = 0 V
Figure 2. Driver Differential Output voltage vs Driver Output Current

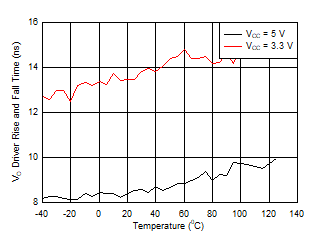

THVD1428 D104_SLLSF32.gifFigure 4. Driver Rise or Fall Time vs Temperature

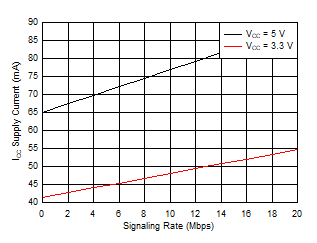

THVD1428 D106_SLLSF32.gifFigure 6. Supply Current vs Signal Rate
