8.4.4 Operation Timing – Power Up

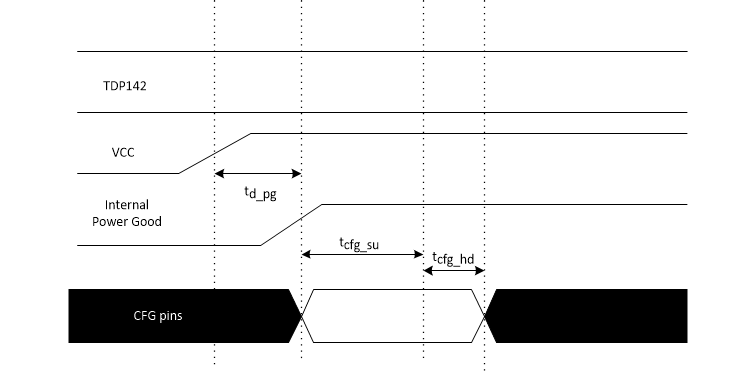

TDP142 Power_timing_digarm.gifFigure 10. Power-Up Timing

Table 3. Power-Up Timing(1)(2)

PARAMETER MIN MAX UNIT
td_pg VCC (minimum) to Internal Power Good asserted high 500 µs
tcfg_su CFG(1) pins setup(2) 50 µs
tcfg_hd CFG(1) pins hold 10 µs
tVCC_RAMP VCC supply ramp requirement 100 ms
(1) Following pins comprise CFG pins: I2C_EN, DPEQ[1:0].
(2) Recommend CFG pins are stable when VCC is at min.
