High-to-Low Transition Characteristics

When the A side of the bus is driven to 30% of VCCA, the B side driver turns on. This drives the B-side to 0V for a short period (see Figure 6-2), and then the B-side rises to the static offset voltage of 0.5V (VOL of TCA9617B). This effect, called an inverted pedestal, allows the B-side to drive to logic low much faster than driving to the static offset. Driving to the static offset voltage requires that the fall time be slowed to prevent ringing.

GUID-0DB8C316-2916-496E-8B20-7CDFAF79693E-low.gifFigure 6-1 Bus A (0.8V to 5.5V Bus) Waveform

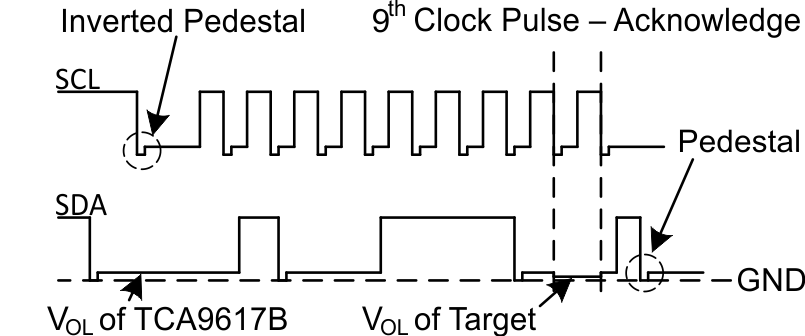

GUID-0F3F3C18-CC84-47F2-94DB-1EDF2C95988B-low.gifFigure 6-2 Bus B (2.2V to 5.5V Bus) Waveform
