Power Supply Recommendations

Power-On Reset Requirements

In the event of a glitch or data corruption, the TCA9534 can be reset to its default conditions by using the power-on reset feature. Power-on reset requires that the device goes through a power cycle to be completely reset. This reset also happens when the device is powered on for the first time in an application.

The two types of power-on reset are shown in Figure 38 and Figure 39.

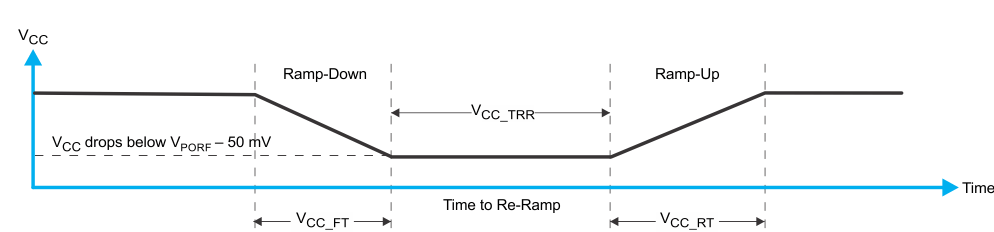

TCA9534 pwron02_cps204.gif Figure 38. VCC is Lowered Below the PORF Threshold, Then Ramped Back Up to VCC

Table 8 specifies the performance of the power-on reset feature for the TCA9534 for both types of power-on reset.

Table 8. Recommended Supply Sequencing and Ramp Rates(1)

PARAMETER MIN MAX UNIT
VCC_FT Fall rate See Figure 38 1 2000 ms
VCC_RT Rise rate See Figure 38 0.1 2000 ms
VCC_TRR Time to re-ramp (when VCC drops to VPOR_MIN – 50 mV or when VCC drops to GND) See Figure 38 1 μs
VCC_GH Level that VCCP can glitch down to, but not cause a functional disruption when VCCX_GW = 1 μs See Figure 39 1.2 V
VCC_MV The minimum voltage that VCC can glitch down to without causing a reset (VCC_GH must not be violated) See Figure 39 1.5 V
VCC_GW Glitch width that does not cause a functional disruption when VCCX_GH = 0.5 × VCCx See Figure 39 10 μs
All supply sequencing and ramp rate values are measured at TA = 25°C

Glitches in the power supply can also affect the power-on reset performance of this device. The glitch width (VCC_GW) and height (VCC_GH) are dependent on each other. The bypass capacitance, source impedance, and device impedance are factors that affect power-on reset performance. Figure 39 and Table 8 provide more information on how to measure these specifications.

TCA9534 pwron03_scps254.gif Figure 39. Glitch Width and Glitch Height

VPOR is critical to the power-on reset. VPORR is the voltage level at which the reset condition is released and all the registers and the I2C-SMBus state machine are initialized to their default states. The value of VPOR differs based on the VCC being lowered to or from 0. Figure 40 and Table 8 provide more details on this specification.

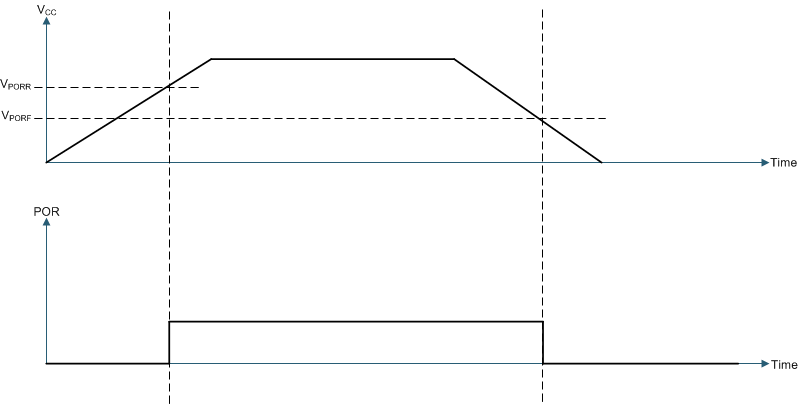

TCA9534 POR_waveform_cps197.gif Figure 40. VPOR
