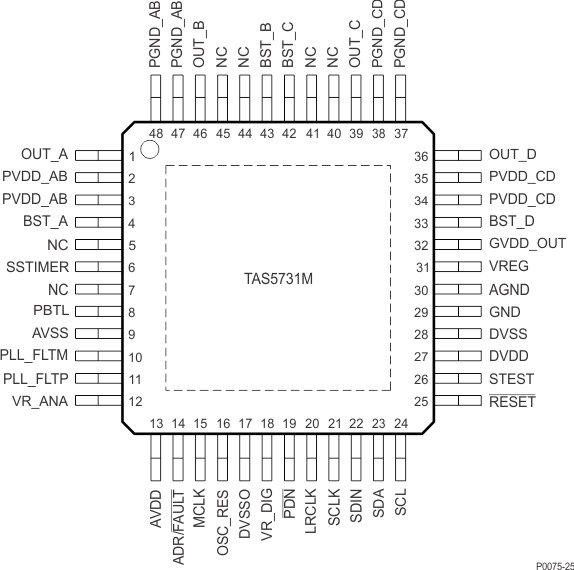

6 Pin Configuration and Functions

PHP Package
48-Pin HTQFP
Top View
TAS5731M P0075-25_SLOS838.gif

Pin Functions

PIN TYPE(1) 5-V TOLERANT TERMINATION(2) DESCRIPTION
NAME NO.
AGND 30 P Local analog ground for power stage, which must be connected to the system ground.
ADR/FAULT 14 DIO Dual function terminal which sets the LSB of the 7-bit I2C address to "0" if pulled to GND and to "1" if pulled to DVDD. If configured to be a fault output by the methods described in I²C Address Selection and Fault Output, this terminal is pulled low when an internal fault occurs. A pull-up or pull-down resistor is required, as is shown in the Typical Application Circuit Diagrams. If pulled high (to DVDD), a 15-kΩ resistor must be used to minimize in-rush current at power up and to isolate the net if the pin is used as a fault output, as described above.
AVDD 13 P 3.3-V analog power supply
AVSS 9 P Analog 3.3-V supply ground
BST_A 4 P High-side bootstrap supply for half-bridge A
BST_B 43 P High-side bootstrap supply for half-bridge B
BST_C 42 P High-side bootstrap supply for half-bridge C
BST_D 33 P High-side bootstrap supply for half-bridge D
DVDD 27 P 3.3-V digital power supply
DVSS 28 P Digital ground
DVSSO 17 P Oscillator ground
GND 29 P Analog ground for power stage
GVDD_OUT 32 P Gate drive internal regulator output
LRCLK 20 DI 5-V Pulldown Input serial audio data left/right clock (sample-rate clock)
MCLK 15 DI 5-V Pulldown Master clock input
NC 5, 7, 40, 41, 44, 45 – No connect
OSC_RES 16 AO Oscillator trim resistor. Connect an 18.2-kΩ, 1% resistor to DVSSO.
OUT_A 1 O Output, half-bridge A
OUT_B 46 O Output, half-bridge B
OUT_C 39 O Output, half-bridge C
OUT_D 36 O Output, half-bridge D
PBTL 8 DI Pulldown Low means BTL mode; high means PBTL mode. Information goes directly to power stage.
PDN 19 DI 5-V Pullup Power down, active-low. PDN prepares the device for loss of power supplies by shutting down the noise shaper and initiating the PWM stop sequence.
PGND_AB 47, 48 P Power ground for half-bridges A and B
PGND_CD 37, 38 P Power ground for half-bridges C and D
PLL_FLTM 10 AO PLL negative loop-filter terminal
PLL_FLTP 11 AO PLL positive loop-filter terminal
PVDD_AB 2, 3 P Power-supply input for half-bridge output A and B
PVDD_CD 34, 35 P Power-supply input for half-bridge output C and D
RESET 25 DI 5-V Pullup Reset, active-low. A system reset is generated by applying a logic low to this pin. RESET is an asynchronous control signal that restores the DAP to its default conditions and places the PWM in the hard-mute (high-impedance) state.
SCL 24 DI 5-V I2C serial control clock input
SCLK 21 DI 5-V Pulldown Serial audio-data clock (shift clock). SCLK is the serial-audio-port input-data bit clock.
SDA 23 DIO 5-V I2C serial control data interface input/output
SDIN 22 DI 5-V Pulldown Serial audio data input. SDIN supports three discrete (stereo) data formats.
SSTIMER 6 AI Controls ramp time of OUT_x to minimize pop. Leave this pin floating for BD mode. Requires capacitor of 2.2 nF to GND in AD mode. The capacitor determines the ramp time.
STEST 26 DI Factory test pin. Connect directly to DVSS.
VR_ANA 12 P Internally regulated 1.8-V analog supply voltage. This pin must not be used to power external devices.
VR_DIG 18 P Internally regulated 1.8-V digital supply voltage. This pin must not be used to power external devices.
VREG 31 P Digital regulator output. Not to be used for powering external circuitry.
PowerPAD™ P Provides both electrical and thermal connection from the device to the board. A matching ground pad must be provided on the PCB and the device connected to it via solder. For proper electrical operation, this ground pad must be connected to the system ground
(1) TYPE: A = analog; D = 3.3-V digital; P = power/ground/decoupling; I = input; O = output
(2) All pullups are 20-µA weak pullups and all pulldowns are 20-µA weak pulldowns. The pullups and pulldowns are included to assure proper input logic levels if the terminals are left unconnected (pull-ups → logic 1 input; pulldowns → logic 0 input). Devices that drive inputs with pullups must be able to sink 20 µA while maintaining a logic-0 drive level. Devices that drive inputs with pulldowns must be able to source 20 µA while maintaining a logic-1 drive level.
