8 Parameter Measurement Information

SN75LVDS83A set_hold_lls846.gif
All input timing is defined at IOVDD / 2 on an input signal with a 10% to 90% rise or fall time of less than 3 ns. CLKSEL = 0 V.
Figure 5. Set Up and Hold Time Definition

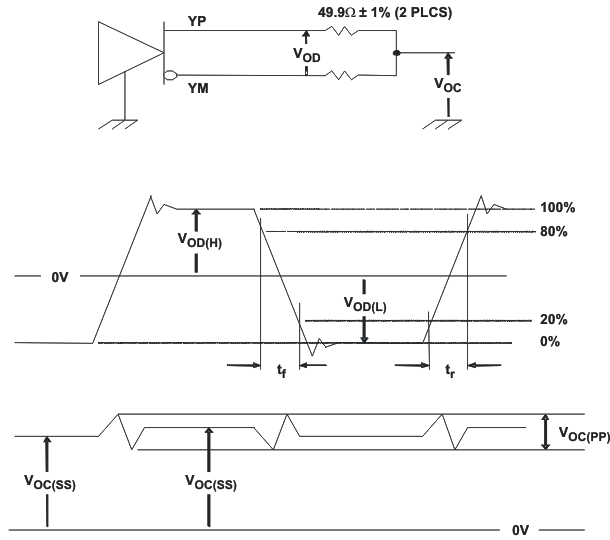

SN75LVDS83A test_load_lls846.gif Figure 6. Test Load and Voltage Definitions for LVDS Outputs
SN75LVDS83A gray_scale_lls846.gif
The 16 grayscale test pattern test device power consumption for a typical display pattern.
Figure 7. 16 Grayscale Test Pattern
SN75LVDS83A worst_case_lls846.gif
The worst-case test pattern produces nearly the maximum switching frequency for all of the LVDS outputs.
Figure 8. Worst-Case Power Test Pattern
SN75LVDS83A timing_lls846.gif
CLKOUT is shown with CLKSEL at high-level.
CLKIN polarity depends on CLKSEL input level.
Figure 9. SN75LVDS83A Timing Definitions
SN75LVDS83A out_clock_lls846.gif Figure 10. Output Clock Jitter Test Set Up

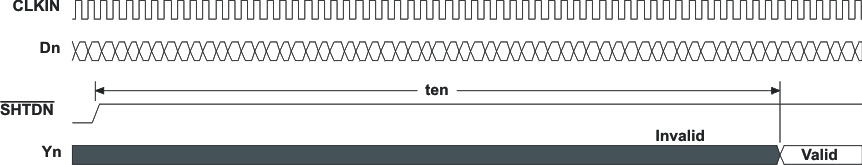

SN75LVDS83A enable_time_lls846.gif Figure 11. Enable Time Waveforms

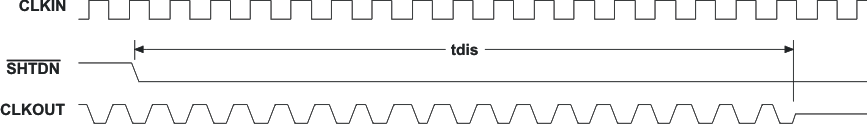

SN75LVDS83A disable_time_lls846.gif Figure 12. Disable Time Waveforms
