6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VCC Supply voltage range(2) –0.5 4 V
Voltage range Differential I/O –0.5 4 V
Control I/O –0.5 VCC + 0.5 V
Continuous power dissipation See Power Dissipation Characteristics
Tstg Storage temperature 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values, except differential voltages, are with respect to the network ground terminal.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±10000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1500
Machine model(3) ±200
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
(3) Tested in accordance with JEDEC Standard 22, Test Method A115-A.

6.3 Recommended Operating Conditions

typical values for all parameters are VCC = 3.3 V and TA = 25°C; all temperature limits are specified by design
MIN NOM MAX UNIT
VCC Supply voltage 3 3.3 3.6 V
CCOUPLING Coupling capacitor 12 nF
Operating free-air temperature 0 85 °C

6.4 Thermal Information

THERMAL METRIC(1) SN75LVCP601 UNIT
RTJ (WQFN)
20 PINS
RθJA Junction-to-ambient thermal resistance 38 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 40 °C/W
RθJB Junction-to-board thermal resistance 10 °C/W
ψJT Junction-to-top characterization parameter 0.5 °C/W
ψJB Junction-to-board characterization parameter 0.9 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 15.2 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DEVICE PARAMETERS
PD Power dissipation in active mode DEWx = EN = VCC, EQx = DEx = NC, K28.5 pattern at 6 Gbps, VID = 700 mVp-p 215 288 mW
PSD Power dissipation in standby mode EN = 0 V, DEWx = EQx = DEx = NC, K28.5 pattern at 6 Gbps, VID = 700 mVp-p 5 mW
ICC Active-mode supply current EN = 3.3 V, DEWx = 0 V, EQx = DEx = NC,
K28.5 pattern at 6 Gbps, VID = 700 mVp-p		 65 80 mA
ICC_ALP Acive power-save mode ICC When device is enabled and auto low-power conditions are met 6.5 10 mA
ICC_STDBY Standby mode supply current EN = 0 V 1 mA
Maximum data rate 1 6 Gbps
OUT-OF-BAND (OOB)
VOOB Input OOB threshold f = 750 MHz 50 78 150 mVpp
DVdiffOOB OOB differential delta 25 mV
DVCMOOB OOB common-mode delta 50 mV
CONTROL LOGIC
VIH Input high voltage For all control pins 1.4 V
VIL Input low voltage 0.5 V
VINHYS Input hysteresis 115 mV
IIH High-level input current EQx, DEx = VCC 30 µA
EN, DEWx = VCC 1
IIL Low-level input current EQx, DEx = GND –30 µA
EN, DEWx = GND –10
RECEIVER AC/DC
ZDIFFRX Differential-input impedance 85 100 115 Ω
ZSERX Single-ended input impedance 40 Ω
VCMRX Common-mode voltage 1.8 V
RLDiffRX Differential-mode return loss (RL) f = 150 MHz to 300 MHz 18 28 dB
f = 300 MHz to 600 MHz 14 17
f = 600 MHz to 1.2 GHz 10 12
f = 1.2 GHz to 2.4 GHz 8 9
f = 2.4 GHz to 3 GHz 3 9
RXDiffRLSlope Differential-mode RL slope f = 300 MHz to 6 GHz (see Figure 1) –13 dB/dec
RLCMRX Common-mode return loss f = 150 MHz to 300 MHz 5 10 dB
f = 300 MHz to 600 MHz 5 17
f = 600 MHz to 1.2 GHz 2 23
f = 1.2 GHz to 2.4 GHz 1 16
f = 2.4 GHz to 3 GHz 1 12
VdiffRX Differential input voltage PP f = 1.5 GHz and 3 GHz 120 1600 mVppd
IBRX Impedance balance f = 150 MHz to 300 MHz 30 41 dB
f = 300 MHz to 600 MHz 30 38
f = 600 MHz to 1.2 GHz 20 32
f = 1.2 GHz to 2.4 GHz 10 26
f = 2.4 GHz to 3 GHz 10 25
f = 3 GHz to 5 GHz 4 20
f = 5 GHz to 6.5 GHz 4 17
TRANSMITTER AC/DC
ZdiffTX Pair differential impedance 85 100 122 Ω
ZSETX Single-ended impedance 40 Ω
VTXtrans Sequencing transient voltage Transient voltages on the serial data bus during power sequencing (lab load) –1.2 1.2 V
RLDiffTX Differential-mode return loss f = 150 MHz to 300 MHz 14 24 dB
f = 300 MHz to 600 MHz 8 19
f = 600 MHz to 1.2 GHz 6 14
f = 1.2 GHz to 2.4 GHz 6 10
f = 2.4 GHz to 3 GHz 3 10
TXDiffRLSlope Differential-mode RL slope f = 300 MHz to 3 GHz (see Figure 1) –13 dB/dec
RLCMTX Common-mode return loss f = 150 MHz to 300 MHz 5 20 dB
f = 300 MHz to 600 MHz 5 19
f = 600 MHz to 1.2 GHz 2 17
f = 1.2 GHz to 2.4 GHz 1 12
f = 2.4 GHz to 3.0 GHz 1 11
IBTX Impedance balance f = 150 MHz to 300 MHz 30 41 dB
f = 300 MHz to 600 MHz 30 38
f = 600 MHz to 1.2 GHz 20 33
f = 1.2 GHz to 2.4 GHz 10 24
f = 2.4 GHz to 3 GHz 10 26
f = 3 GHz to 5 GHz 4 22
f = 5 GHz to 6.5 GHz 4 21
DE Output de-emphasis (relative to transition bit) f = 3 GHz, DE1 or DE2 = 0 0 dB
f = 3 GHz, DE1 or DE2 = 1 –2
f = 3 GHz, DE1 or DE2 = NC –4
DiffVppTX_DE Differential output-voltage swing dc level f = 3 GHz, DE1 or DE2 = 0 550 mV
f = 3 GHz, DE1 or DE2 = 1 830
f = 3 GHz, DE1or DE2 = NC 630
VCMAC_TX TX AC CM voltage At 1.5 GHz 20 50 mVppd
At 3 GHz 12 26 dBmV (rms)
At 6 GHz 13 30
VCMTX Common-mode voltage 1.8 V
TxR/FImb TX rise-fall imbalance At 3 Gbps 6% 20%
TxAmpImb TX amplitude imbalance 2% 10%
(1) TJ = (14.1 × RJSD + DJ), where RJSD is one standard deviation value of RJ Gaussian distribution. Jitter measurement is at the SATA connector and includes jitter generated at the package connection on the printed circuit board, and at the board interconnect as shown in Figure 9.

6.6 Power Dissipation Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER MIN MAX UNIT
PD Device power dissipation in active mode 215 288 mW
PSD Device power dissipation under standby mode 5 mW

6.7 Timing Requirements

MIN NOM MAX UNIT
DEVICE PARAMETERS
AutoLPENTRY Auto low-power entry time Electrical idle at input (see Figure 4) 80 105 130 µs
AutoLPEXIT Auto low-power exit time After first signal activity (see Figure 4) 42 50 ns
TRANSMITTER AC/DC
tDE De-emphasis duration DEW1 or DEW2 = 0 94 ps
DEW1 or DEW2 = 1 215
OUT-OF-BAND (OOB)
tOOB1 OOB mode enter See Figure 4 3 5 ns
tOOB2 OOB mode exit See Figure 4 3 5 ns

6.8 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DEVICE PARAMETERS
tPDelay Propagation delay Measured using K28.5 pattern (see Figure 2) 323 400 ps
tENB Device enable time EN 0 → 1 5 µs
tDIS Device disable time EN 1 → 0 2 µs
RECEIVER AC/DC
t20-80RX Rise/fall time Rise times and fall times measured between 20% and 80% of the signal. SATA 6-Gbps speed measured 1 in, (2.5 cm) from device pin. 62 75 ps
tskewRX Differential skew Difference between the single-ended midpoint of the RX+ signal rising or falling edge, and the single-ended midpoint of the RX– signal falling or rising edge. 30 ps
TRANSMITTER AC/DC
t20-80TX Rise/fall time Rise times and fall times measured between 20% and 80% of the signal. At 6 Gbps under no load conditions. 42 55 75 ps
tskewTX Differential skew Difference between the single-ended mid-point of the TX+ signal rising or falling edge, and the single-ended mid-point of the TX– signal falling or rising edge. 6 20 ps
TRANSMITTER JITTER
DJTX Deterministic jitter(1) at CP in Figure 9 VID = 500 mVpp, UI = 333 ps,
K28.5 control character 		0.06 0.07 UIp-p
RJTX Residual random jitter(1) VID = 500 mVpp, UI = 333 ps,
K28.7 control character		 0.01 2 ps-rms
DJTX Deterministic jitter(1) at CP in Figure 9 VID = 500 mVpp, UI = 167 ps,
K28.5 control character		 0.08 0.16 UIp-p
RJTX Residual random jitter(1) VID = 500 mVpp, UI = 167 ps,
K28.7 control character		 0.09 2 ps-rms

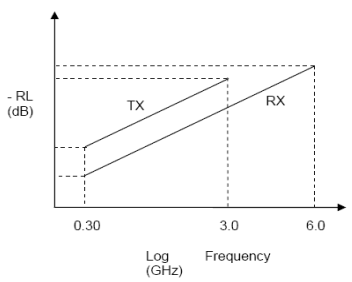

SN75LVCP601 tx_rx_diff_llse41.gif Figure 1. TX, RX Differential Return Loss Limits
SN75LVCP601 ent_ext_tim_llse41.gif Figure 2. OOB Enter and Exit Timing
SN75LVCP601 delay_tim_llse41.gif Figure 3. Propagation Delay Timing Diagram
SN75LVCP601 auto_low_pwr_llse41.gif Figure 4. Auto Low-Power Mode Enter and Exit Timing
SN75LVCP601 TX_output_llse41.gif Figure 5. TX Differential Output

6.9 Typical Characteristics

SN75LVCP601 G001_new_LLSE41.gif Figure 6. Residual DJ and Eye Opening
vs Input Trace Length
SN75LVCP601 G002_new_LLSE41.gif Figure 7. Residual DJ and Eye Opening
vs Output Trace Length
