7 Parameter Measurement Information

  • Input signal characteristics
    • Data rate = 6 Gbps, 3 Gbps, 1.5 Gbps
    • Amplitude = 500 mVp-p
    • Data pattern = K28.5
  • SN75LVCP601 device setup
    • Temperature = 25°C
    • Voltage = 3.3 V
    • De-emphasis duration = 117 ps (short)
    • Equalization and de-emphasis set to optimize performance at 6 Gbps

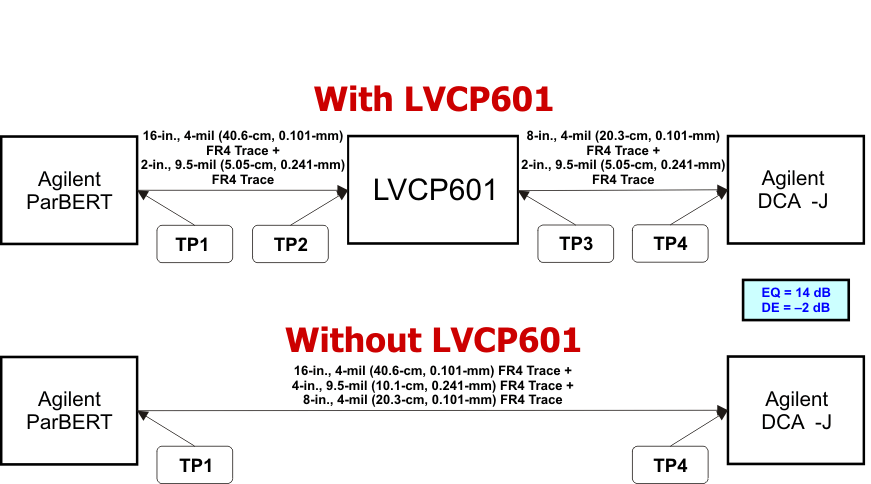

SN75LVCP601 PerfCurvMeas_LLSE41.gif Figure 8. Performance Curve Measurement Setup
SN75LVCP601 jitt_tst_llse41.gif Figure 9. Jitter Measurement Test Condition

7.1 Jitter and VOD Results: Case 1 at 6 Gbps

SN75LVCP601 jitt_case1_01_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
29.0 3.3 1.88 412.4 159.2 350.52
Figure 10. Test Point 1
SN75LVCP601 jitt_case1_03_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
42.0 15.9 1.91 788.8 141.3 623.02
Figure 12. Test Point 3
SN75LVCP601 jitt_case1_05_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
56.7 29.8 2.00 165.4 101 13.24
Figure 14. Test Point 5 Without LVCP601
SN75LVCP601 jitt_case1_02_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
91.8 65.4 1.93 240 28.9 81.24
Figure 11. Test Point 2
SN75LVCP601 jitt_case1_04_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
39.0 12.7 1.92 557.1 149.7 459.62
Figure 13. Test Point 4 With LVCP601

7.2 Jitter and VOD Results: Case 2 at 3 Gbps

SN75LVCP601 jitt_case2_01_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
29.7 3.8 1.89 430.9 326 392.84
Figure 15. Test Point 1
SN75LVCP601 jitt_case2_03_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
39.6 12.8 1.96 714.5 321 611.62
Figure 17. Test Point 3

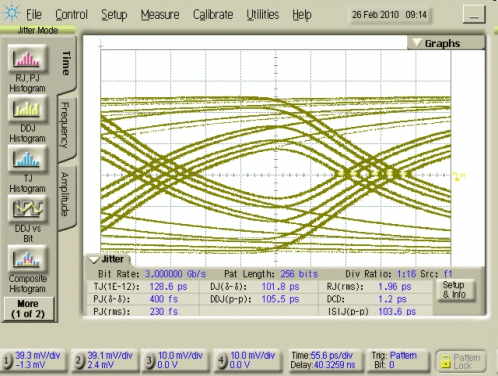

SN75LVCP601 jitt_case2_05_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
128.6 101.8 1.96 258.8 118 122.26
Figure 19. Test Point 5 Without LVCP601
SN75LVCP601 jitt_case2_02_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
72.7 46.8 1.89 314.9 237 222.36
Figure 16. Test Point 2
SN75LVCP601 jitt_case2_04_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
47.9 20.3 1.99 615.3 305.0 463.42
Figure 18. Test Point 4 With LVCP601

7.3 Jitter and VOD Results: Case 3 at 1.5 Gbps

SN75LVCP601 jitt_case3_01_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
34.3 3.4 2.26 448 659 417.28
Figure 20. Test Point 1
SN75LVCP601 jitt_case3_03_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
44.9 13.2 2.31 753.1 649 604.02
Figure 22. Test Point 3
SN75LVCP601 jitt_case3_05_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
113.3 81.9 2.30 322.8 493 217.46
Figure 24. Test Point 5 Without LVCP601
SN75LVCP601 jitt_case3_02_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
67.5 38.6 2.11 363.4 589 318.48
Figure 21. Test Point 2
SN75LVCP601 jitt_case3_04_llse41.gif
TJ
(1e-12)
ps 		DJ
(σ-σ)
ps 		RJ
(rms)
ps		 Eye
Amplitude
mv		 Eye
Width
ps		 Eye
Opening
mv
57.3 21.5 2.62 672.8 632.0 442.42
Figure 23. Test Point 4 With LVCP601
