Typical Characteristics

GUID-F916A10D-0F95-4243-A9D9-222A50226936-low.gifFigure 5-1 Typical Waveform of Nonreturn-to-Zero (NRZ), Pseudorandom Binary Sequence (PRBS) Data at 100 Mbps Through 15m, of CAT 5 Unshielded Twisted Pair (UTP) Cable

TIA/EIA-485-A defines a maximum signaling rate as that in which the transition time of the voltage transition of a logic-state change remains less than or equal to 30% of the bit length. Transition times of greater length perform quite well even though they do not meet the standard by definition.

GUID-20230110-SS0I-F0CL-VNXJ-NSB3KTFHRHC0-low.pngFigure 5-2 Average Supply Current vs Frequency

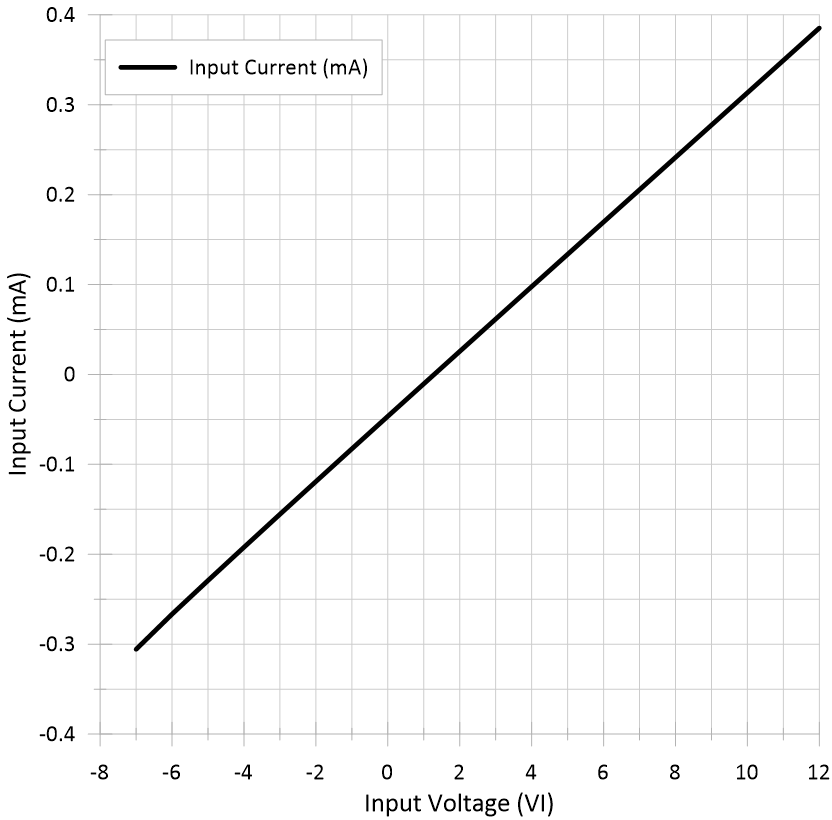

GUID-20230110-SS0I-5K02-GVQN-RZQCBXRFDKPQ-low.pngFigure 5-4 Bus Input Current vs Input Voltage
GUID-20230110-SS0I-FWWF-NSMJ-FJLPZQ4KVSL7-low.pngFigure 5-6 Driver High-Level Output Voltage vs High-Level Output Current
GUID-20230110-SS0I-BS1B-MKR3-VK3DJDPF6PRK-low.pngFigure 5-3 Logic Input Current vs Input Voltage
GUID-20230110-SS0I-WVDN-CXFF-0VK5XRK5JPZG-low.pngFigure 5-5 Driver Low-Level Output Voltage vs Low-Level Output Current
GUID-20230110-SS0I-HZ5H-QTPV-PS4QKXKFR8VH-low.pngFigure 5-7 Propagation Delay Time vs Case Temperature
