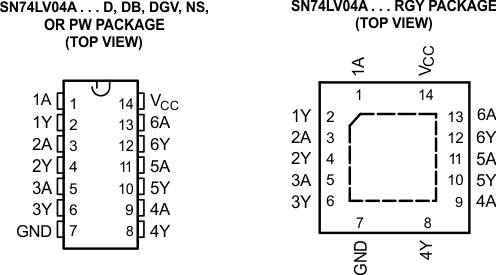

6 Pin Configuration and Functions


Pin Functions

PIN TYPE DESCRIPTION
NAME SN74LV04A
D, DB, DGV,
NS, PW		 RGY
1A 1 1 I 1A Input
1Y 2 2 O 1Y Output
2A 3 3 I 2A Input
2Y 4 4 O 2Y Output
3A 5 5 I 3A Input
3Y 6 6 O 3Y Output
4Y 8 8 O 4Y Output
4A 9 9 I 4A Input
5Y 10 10 O 5Y Output
5A 11 11 I 5A Input
6Y 12 12 O 6Y Output
6A 13 13 I 6A Input
GND 7 7 — Ground Pin
VCC 14 14 — Power Pin
