7 Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tt < 2.5 ns.

For clock inputs, fmax is measured when the input duty cycle is 50%.

The outputs are measured one at a time with one input transition per measurement.

(1) CL includes probe and test-fixture capacitance.
Figure 7-1 Load Circuit for 3-State Outputs
GUID-7FBFF776-CCD5-45F1-9468-A64F1D560BB5-low.gifFigure 7-3 Voltage Waveforms, Setup and Hold Times

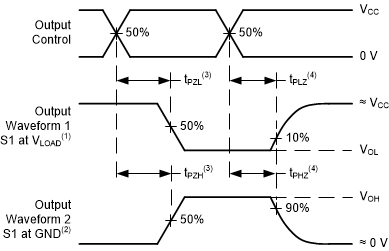

GUID-B66D4D5F-A783-4DA6-BE42-21A7D33CE0DE-low.gifFigure 7-5 Voltage Waveforms Propagation Delays
GUID-79D10B94-1B94-4919-A243-405EA38DB8C6-low.gifFigure 7-2 Voltage Waveforms, Pulse Duration
(1) The greater between tPLH and tPHL is the same as tpd.
Figure 7-4 Voltage Waveforms Propagation Delays
(1) The greater between tr and tf is the same as tt.
Figure 7-6 Voltage Waveforms, Input and Output Transition Times
