7 Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tt < 2.5 ns.

For clock inputs, fmax is measured when the input duty cycle is 50%.

The outputs are measured one at a time with one input transition per measurement.

(1) CL includes probe and test-fixture capacitance.
Figure 7-1 Load Circuit for 3-State Outputs
GUID-AC96879B-051A-49E4-8FE0-77EE52991418-low.gifFigure 7-3 Voltage Waveforms Propagation Delays
(1) The greater between tPLH and tPHL is the same as tpd.

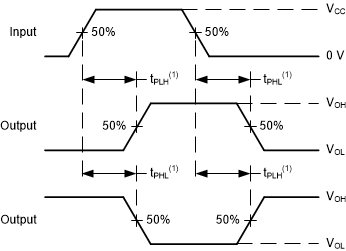

Figure 7-2 Voltage Waveforms Propagation Delays
(1) The greater between tr and tf is the same as tt.
Figure 7-4 Voltage Waveforms, Input and Output Transition Times
