Parameter Measurement Information

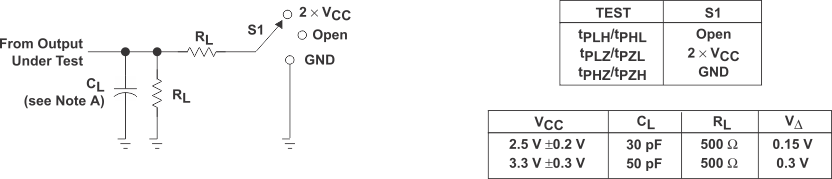

SN74CBTLV3383 Load_current_scds047.gifFigure 1. Load Current
SN74CBTLV3383 volt_wave_pulse_duration_scds047.gifFigure 2. Voltage Waveforms Pulse Duration
xx

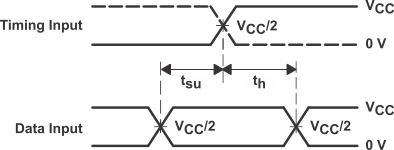

SN74CBTLV3383 volt_wave_setup_hold_scds047.gifFigure 3. Voltage Waveforms Setup and Hold Times

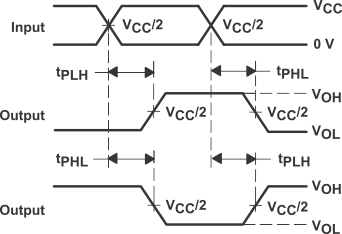

SN74CBTLV3383 volt_wave_prop_delay_scds047.gifFigure 4. Voltage Waveforms Propagation Delay Times Inverting and Noninverting Outputs
SN74CBTLV3383 volt_wave_enable_disable_scds047.gifFigure 5. Voltage Waveforms Enable And Disable Times Low- and High-Level Enabling

Notes:

  1. CL includes probe and jig capacitance.
  2. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control
  3. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
  4. The outputs are measured one at a time with one transition per measurement.
  5. tPLZ and tPHZ are the same as tdis.
  6. tPZL and tPZH are the same as ten.
  7. tPLH and tPHL are the same as tpd.
  8. H. All parameters and waveforms are not applicable to all devices.
