7 Parameter Measurement Information

7.1 VCCA = 2.5 V ± 0.2 V to VCCB = 3.3 V ± 0.3 V

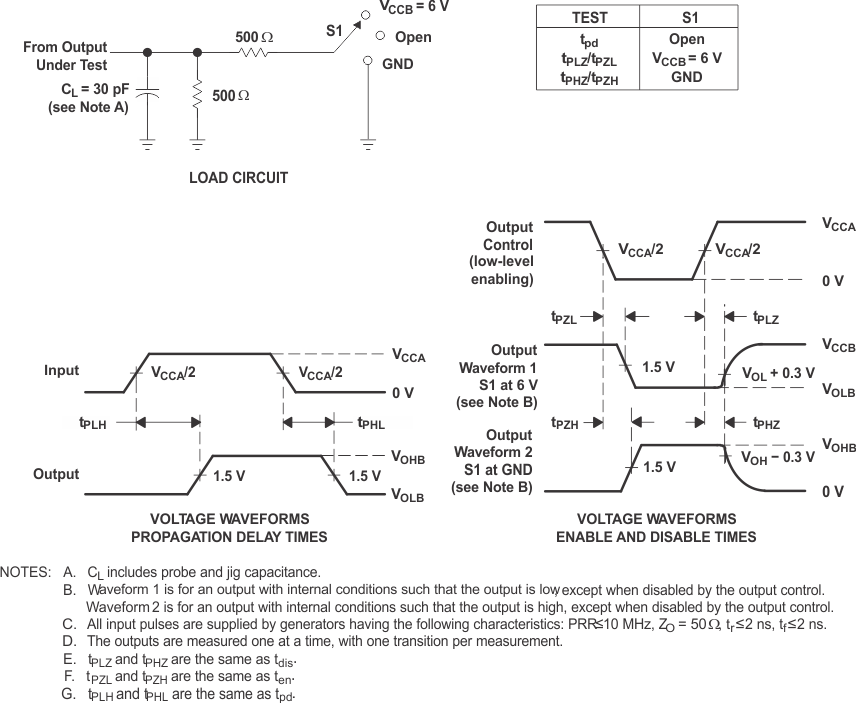

SN74ALVC164245 pmi1_cas416.gif Figure 2. Load Circuit and Voltage Waveforms

7.2 VCCB = 3.3 V ± 0.3 V to VCCA = 2.5 V ± 0.2 V

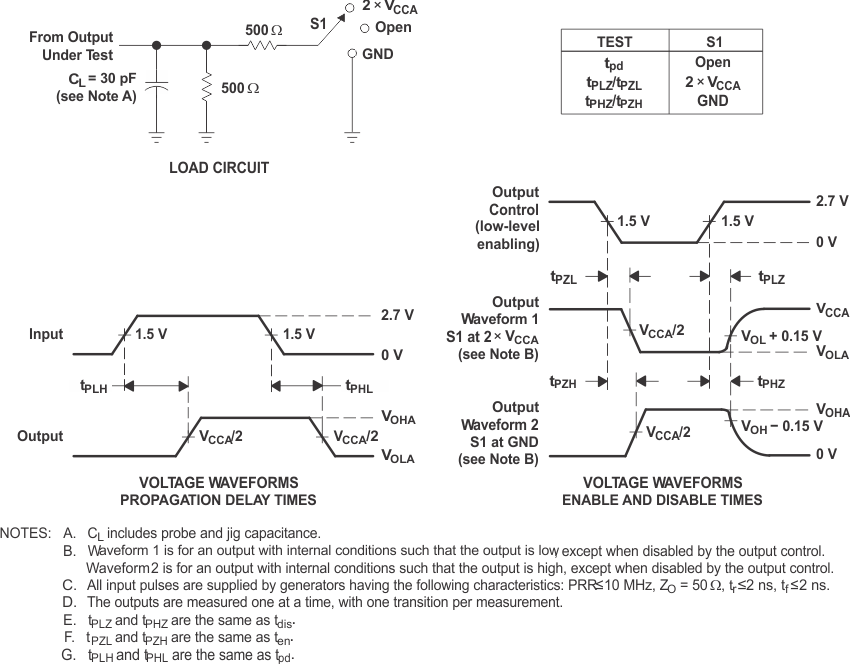

SN74ALVC164245 pmi2_cas416.gif Figure 3. Load Circuit and Voltage Waveforms

7.3 VCCA = 3.3 V ± 0.3 V to VCCB = 5 V ± 0.5 V

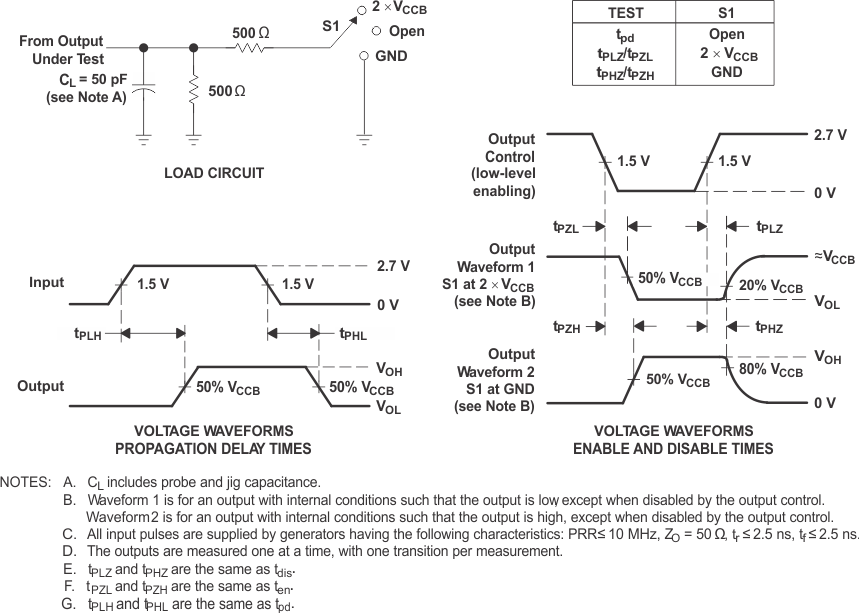

SN74ALVC164245 pmi3_cas416.gif Figure 4. Load Circuit and Voltage Waveforms

7.4 VCCB = 5 V ± 0.5 V to VCCA = 2.7 V and 3.3 V ± 0.3 V

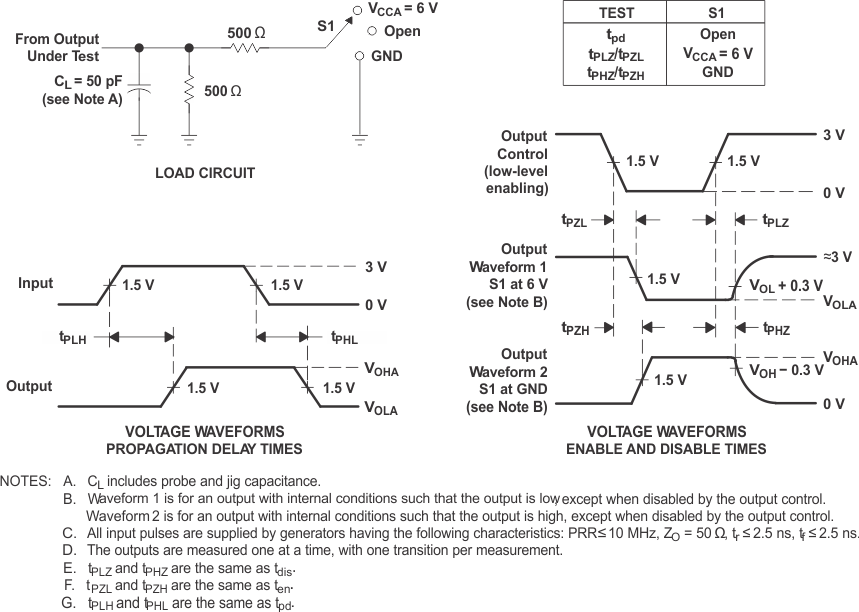

SN74ALVC164245 pmi4_cas416.gif Figure 5. Load Circuit and Voltage Waveforms
