7 Parameter Measurement Information

7.1 Typical Eye Diagram and Performance Curves

Measurement equipment details:

  • Generator (source) LeCroy PERT3,
  • Signal: 5 Gbps, 1000 mVp-p, 3.5-dB De-Emphasis
  • TJ and DJ measurements based on CP0 (USB 3 compliance pattern) which is D0.0 or logical idle with SKP sequences removed
  • RJ measurements based on CP1 or D10.2 symbol containing alternating 0s and 1s at Nyquist frequency
  • Oscilloscope (Sink) LeCroy 25-GHz Real Time Oscilloscope
  • LeCroy QualiPHY software used to measure jitter and collect compliance eye diagrams

Device Operating Conditions: VCC = 3.3 V, Temp = 25°C, EQx, DEx, OSx set to their default value when not mentioned

7.2 Plot 1 Fixed Output Trace +3-m USB 3 Cable With Variable Input Trace

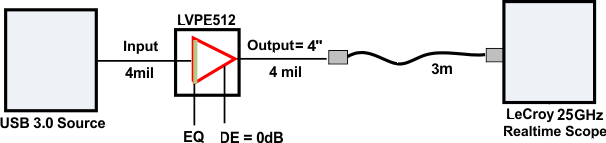

SN65LVPE512 plot1_llseh7.gif Figure 27. Parameter Measurement Set-Up

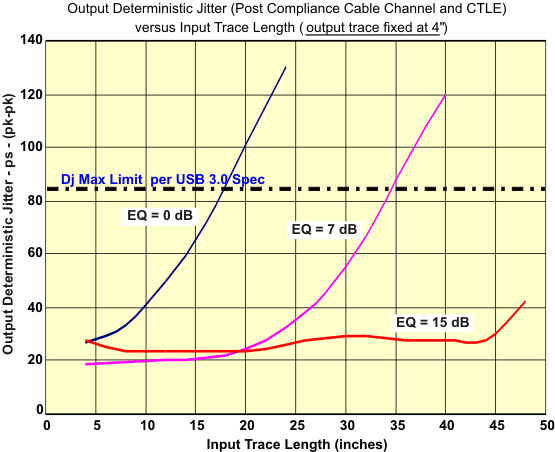

SN65LVPE512 plot1B_llse79.gif Figure 28. Output DJ vs Input Trace Length With Different EQ Settings

7.3 Plot 2 Fixed Input Trace With Variable Output Trace and +3-m USB 3.0 Cable

SN65LVPE512 plot2_llseh7.gif Figure 29. Parameter Measurement Set-Up

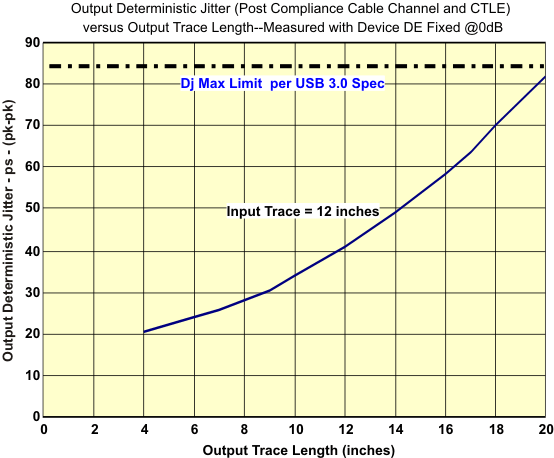

SN65LVPE512 plot2B_llse79.gif Figure 30. Output DJ

7.4 Plot 3 Fixed Input Trace With Variable Output Trace and (No Cable)

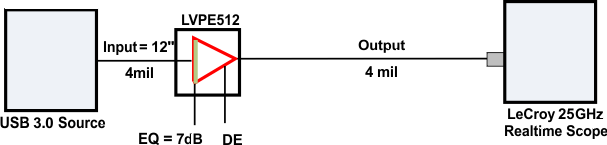

SN65LVPE512 plot3_llseh7.gif Figure 31. Parameter Measurement Set-Up

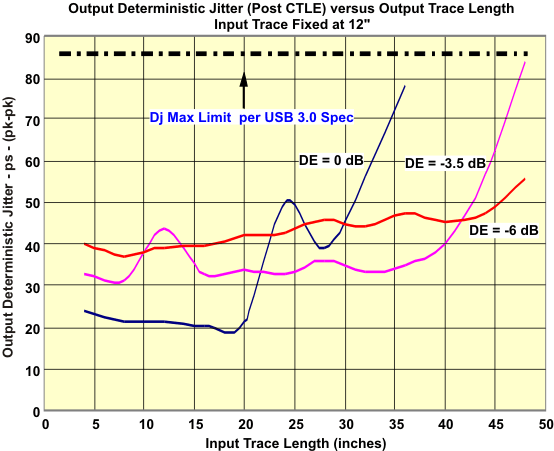

SN65LVPE512 plot3B_llse79.gif Figure 32. Output DJ vs Input Trace Length With Different EQ Settings
