7 Parameter Measurement Information

7.1 Typical Eye Diagram and Performance Curves

Device operating conditions: VCC = 3.3 V, temperature = 25°C, EQx, DEx, and OSx set to their default values (when not mentioned). Measurement equipment details:

  • Generator (source) LeCroy PERT3
  • Signal: 5 Gbps, 1000 mVpp, 3.5 dB de-emphasis
  • Tj and Dj measurements based on CP0 (USB 3.0 compliance pattern) which is D0.0 or logical idle with SKP sequences removed
  • Rj measurements based on CP1 or D10.2 symbol containing alternating 0s and 1s at Nyquist frequency
  • Oscilloscope (sink) LeCroy 25-GHz real-time oscilloscope
  • LeCroy QualiPHY software used to measure jitter and collect compliance eye diagrams

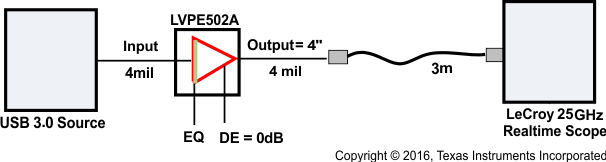

SN65LVPE502A SN65LVPE502B plot1_llseb3.gif SN65LVPE502A SN65LVPE502B plot1B_llse79.gif Figure 28. Plot 1 – Fixed Output Trace With Variable Input Trace and 3-m USB 3.0 Cable

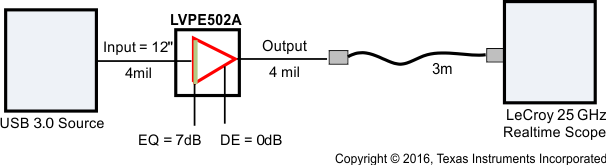

SN65LVPE502A SN65LVPE502B plot2_llseb3.gif SN65LVPE502A SN65LVPE502B plot2B_llse79.gif Figure 29. Plot 2 – Fixed Input Trace With Variable Output Trace and 3-m USB 3.0 Cable

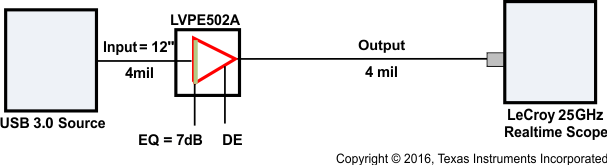

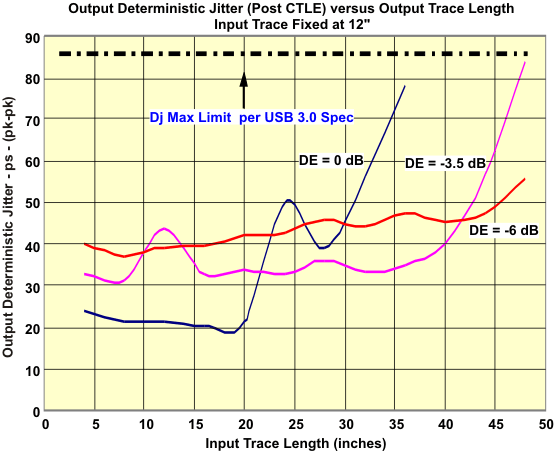

SN65LVPE502A SN65LVPE502B plot3_llseb3.gif SN65LVPE502A SN65LVPE502B plot3B_llse79.gif Figure 30. Plot 3 – Fixed Input Trace With Variable Output Trace (No Cable)
