ZHCSHV8B August 2009 – March 2015 SN65LVDS93A
PRODUCTION DATA.
8 Parameter Measurement Information
Figure 5. Equivalent Input and Output Schematic Diagrams
All input timing is defined at IOVDD / 2 on an input signal with a 10% to 90% rise or fall time of less than 3 ns. CLKSEL = 0V.
Figure 6. Setup and Hold Time Definition

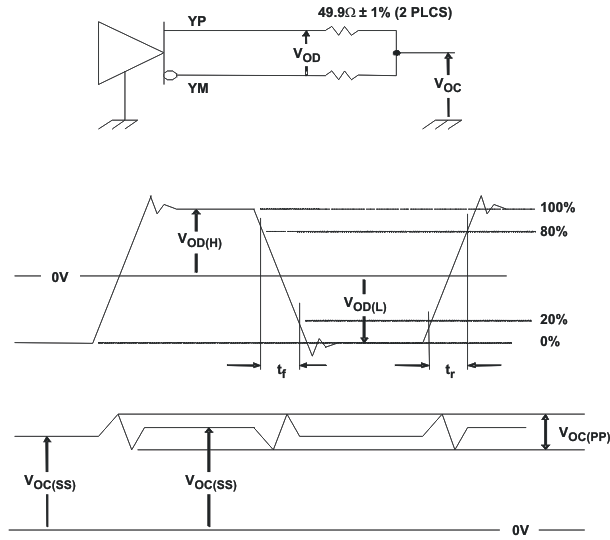

Figure 7. Test Load and Voltage Definitions for LVDS Outputs

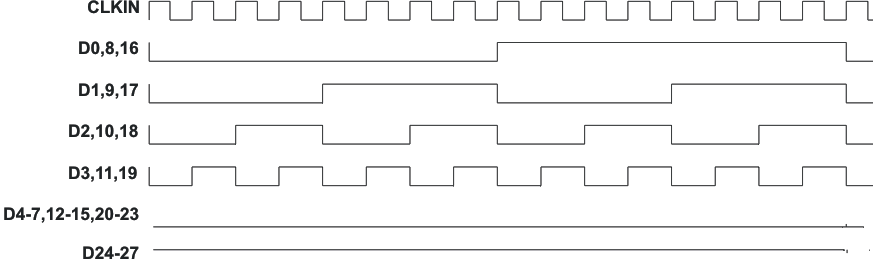

The 16 grayscale test pattern test device power consumption for a typical display pattern.
Figure 8. 16 Grayscale Test Pattern

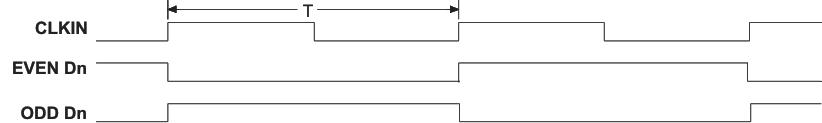

The worst-case test pattern produces nearly the maximum switching frequency for all of the LVDS outputs.
Figure 9. Worst-Case Power Test Pattern
CLKOUT is shown with CLKSEL at high-level.
CLKIN polarity depends on CLKSEL input level.

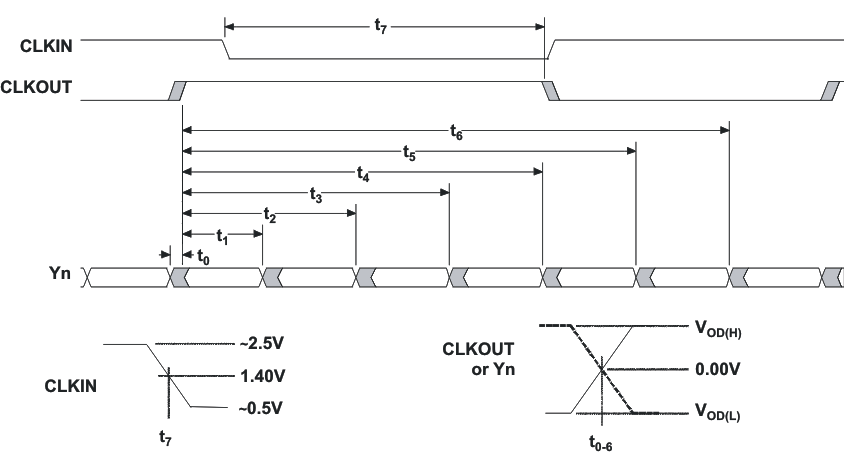

Figure 10. SN65LVDS93A Timing Definitions
CLKIN polarity depends on CLKSEL input level.

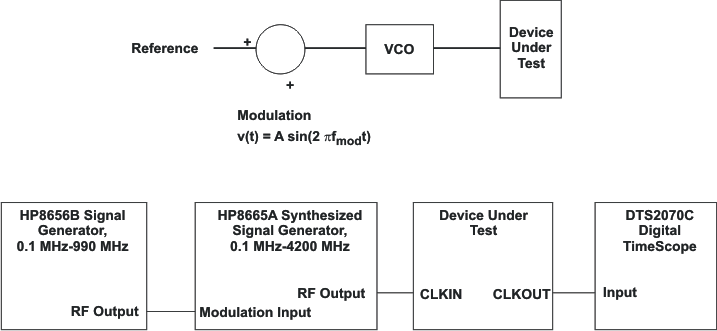

Figure 11. Output Clock Jitter Test Set Up

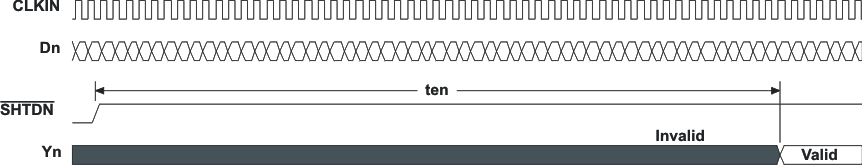

Figure 12. Enable Time Waveforms

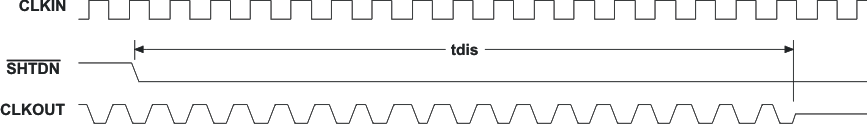

Figure 13. Disable Time Waveforms
