8 Parameter Measurement Information

SN65HVD1050 dvr_tst_lls632.gif
Figure 11. Driver Voltage, Current, and Test Definition
SN65HVD1050 vod_tst_lls632.gif
Figure 13. Driver VOD Test Circuit
SN65HVD1050 bus_log_lls632.gif

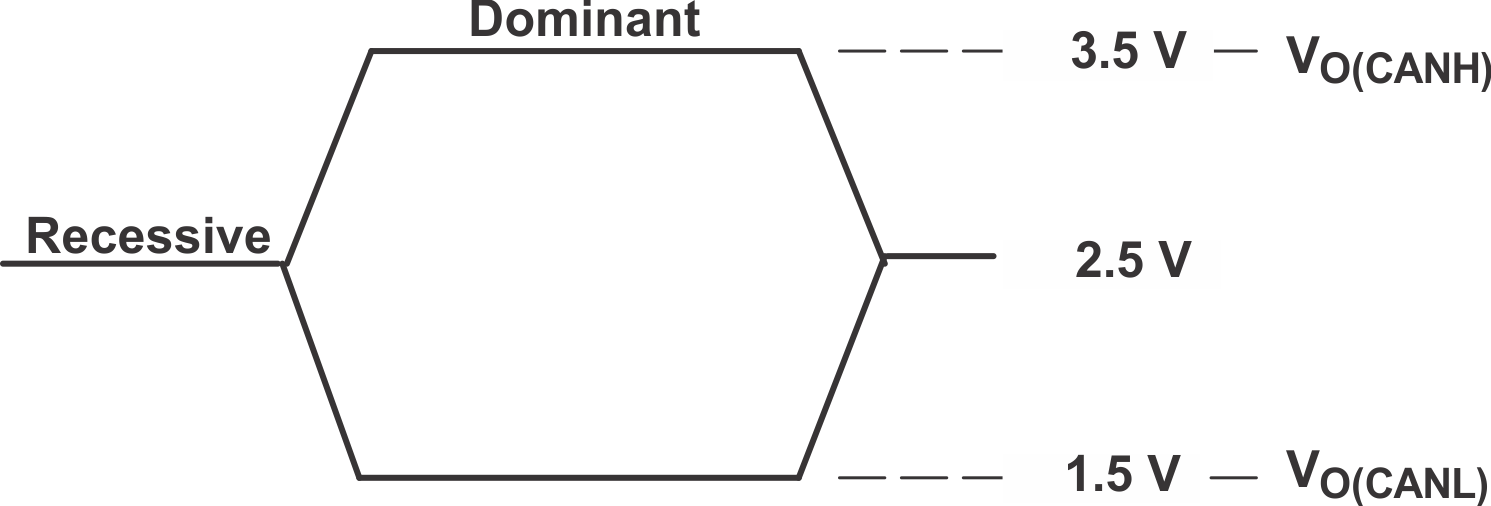

Figure 12. Bus Logic State Voltage Definitions
SN65HVD1050 drv_tst_wf_lls632.gifFigure 14. Driver Test Circuit and Voltage Waveforms
SN65HVD1050 rx_v_cd_lls632.gifFigure 15. Receiver Voltage and Current Definitions
SN65HVD1050 rx_tst_wf_lls632.gif
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.
Figure 16. Receiver Test Circuit and Voltage Waveforms

Table 1. Differential Input Voltage Threshold Test

INPUT OUTPUT
VCANH VCANL |VID| R
–11.1V –12V 900 mV L VOL
12V 11.1V 900 mV L
–6V –12V 6V L
12V 6V 6V L
–11.5V –12V 500 mV H VOH
12V 11.5V 500 mV H
–12V –6V 6V H
6V 12V 6V H
Open Open X H
SN65HVD1050 ten_tc_wf_lls632.gifFigure 17. TEN Test Circuit and Waveform
SN65HVD1050 comonmode_lls632.gif

NOTE:

All VI input pulses are from 0V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 125 kHz, 50% duty cycle.
Figure 18. Common Mode Output Voltage Test and Waveforms
SN65HVD1050 tloop_tc_wf_lls632.gif
A. All VI input pulses are from 0V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 125 kHz, 50% duty cycle.
Figure 19. T(LOOP) Test Circuit and Waveform
SN65HVD1050 tm_out_wf_lls632.gif
A. All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 500 Hz, 50% duty cycle.
B. CL = 100 pF includes instrumentation and fixture capacitance within ±20%.
Figure 20. Dominant Time-Out Test Circuit and Waveforms
SN65HVD1050 drv_sc_wf_lls632.gifFigure 21. Driver Short-Circuit Current Test and Waveform
