Typical Application

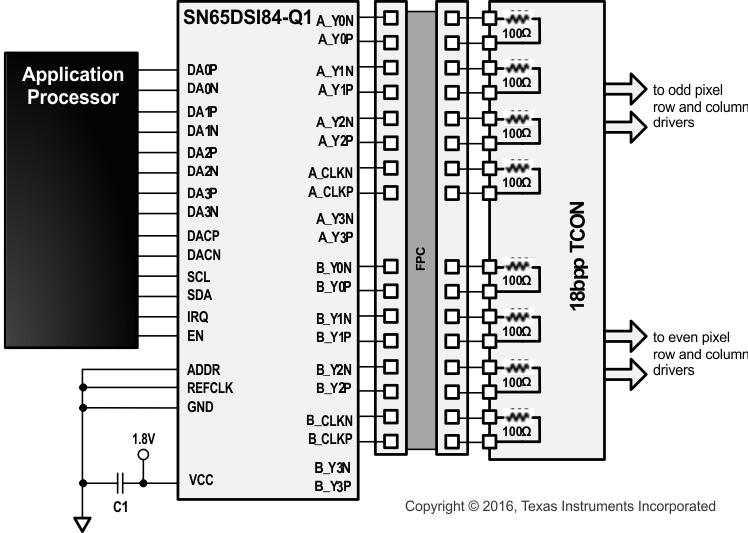

Figure 47 illustrates a typical application using the SN65DSI84-Q1 for a single channel DSI receiver to interface a single-channel DSI application processor to an LVDS Dual-Link 18 bit-per-pixel panel supporting 1920 x 1200 WUXGA resolutions at 60 frames per second.

SN65DSI84-Q1 typ_app_sllsew9.gifFigure 47. Typical 1920 x 1200 WUXGA 18-bpp Panel Application
