Application Circuits

The following application circuits are shown for a 3.3 V input supply commonly taken from the local, regulated micro-controller supply. For 5 V input voltages requiring different turn ratios refer to the transformer manufacturers and their websites listed in #GUID-04C8C4A5-23A7-429F-BCB7-D04F126623C6/SLLSEA04372.

Table 8-4 Transformer Manufacturers
Coilcraft Inc.http://www.coilcraft.com
Halo-Electronics Inc.http://www.haloelectronics.com
Murata Power Solutionshttp://www.murata-ps.com
Wurth Electronics Midcom Inchttp://www.midcom-inc.com

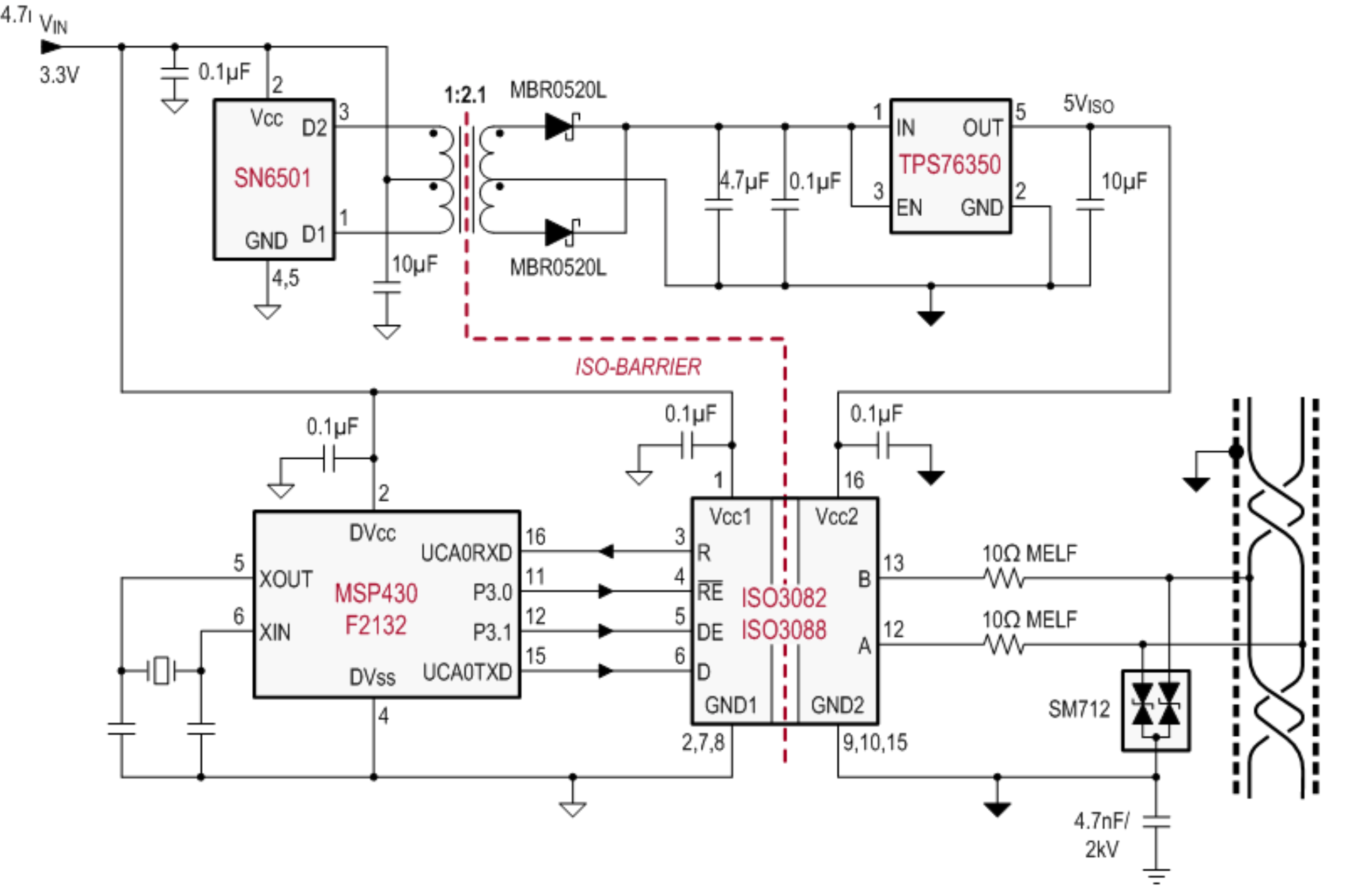

GUID-04400654-BB4A-406C-8A96-25A626BEAADC-low.pngFigure 8-12 Isolated RS-485 Interface
GUID-54995A54-9BD7-405A-A958-57D803F38548-low.gifFigure 8-13 Isolated Can Interface
GUID-8AB5DCB0-DD8A-4C62-A5A7-BAE81EE5AF42-low.pngFigure 8-14 Isolated RS-232 Interface
GUID-5077BBE2-5ECA-4081-8890-6AA692D2D078-low.pngFigure 8-15 Isolated Digital Input Module
GUID-F07155B2-9E9C-4A62-AB1E-5201DE4DCC39-low.pngFigure 8-16 Isolated SPI Interface for an Analog Input Module With 16 Inputs
GUID-8BAA04C5-B2A3-4116-A958-4956CA3CFE35-low.pngFigure 8-17 Isolated I2C Interface for an Analog Data Acquisition System With 4 Inputs and 4 Outputs
GUID-35C5827B-57F3-4E6B-B0F0-987A7212BAA8-low.gifFigure 8-18 Isolated 4-20 mA Current Loop
