7 Specifications

7.1 Absolute Maximum Ratings

Over operating free-air temperature range (unless otherwise noted).(1)(2)
MIN MAX UNIT
Supply voltage VBUS –0.3 6.5 V
Ground voltage differences BGND, PGND, AGND, HGND, DGND –0.1 0.1 V
Input voltage VCCP, VCCA, VCCL, VCCR, VDD –0.3 4 V
Digital input voltage PLAY, REC –0.3 6.5 V
D+, D–, XTI, XTO, MMUTE, TEST0, TEST1, POWER, MAMP, SSPND –0.3 4 V
Analog input voltage MBIAS, VIN, VCOM1, VCOM2, VOUTL, VOUTR, FR, FL –0.3 4 V
Input current (any pins except supplies) –10 10 mA
Ambient temperature under bias –40 125 °C
Junction temperature 150
Storage temperature, Tstg –55 150
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to network ground terminal.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±3000 V
Charged device model (CDM), per JEDEC specification JESD22-C101(2) ±1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

Over operating free-air temperature range (unless otherwise noted).
MIN NOM MAX UNIT
VBUS Supply voltage 4.35 5 5.25 V
Analog input voltage, full scale (–0 dB) 0.43 VCCA VPP
Digital input logic family TTL
Digital input clock frequency 5.997 6 6.003 MHz
Analog output load resistance 32 Ω
Analog output load capacitance 100 pF
Digital output load capacitance 10 pF
TA Operating free-air temperature –25 70 °C

7.4 Thermal Information

THERMAL METRIC(1) PCM2912A UNIT
PJT (TQFP)
32 PINS
RθJA Junction-to-ambient thermal resistance 69.6 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 10.6 °C/W
RθJB Junction-to-board thermal resistance 34.6 °C/W
ψJT Junction-to-top characterization parameter 0.3 °C/W
ψJB Junction-to-board characterization parameter 33.9 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted. for Host interface, apply USB revision 2.0, full-speed. For audio data format, use UsB isochronous data format.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
INPUT LOGIC
VIH Input logic high level 2 3.3 VDC
VIL Input logic low level 0.8
IIH Input logic high current(1)(2) VIN = 3.3 V –10 10 μA
Input logic high current(3) VIN = 3.3 V 65 100
IIL Input logic low current(1)(2) VIN = 0 V –10 10 μA
Input logic low current(3) VIN = 0 V –10 10
OUTPUT LOGIC
VOH Output logic high level(1) IOH = –10 mA 2.9 VDC
Output logic high level(4) IOH = –2 mA 2.8
VOL Output logic low level(1) IOL = 10 mA 0.3 VDC
Output logic low level(4) IOL = 2 mA 0.5
Output logic low level(5) IOL = 8 mA 0.5
IOH Output leak current(5) VIN = 5 V ±10 μA
CLOCK FREQUENCY
Input clock frequency, XTI 5.997 6.000 6.003 MHz
MICROPHONE BIAS
Output voltage 0.75 VCCA VDC
Output current 2 mA
Output noise RL = 1 kΩ 5 μVRMS
ANALOG-TO-DIGITAL CONVERTER (ADC) CHARACTERISTICS
Resolution 16 Bits
Audio data channel 1 Channel
Sampling frequency 8
11.025
16
22.05
32
44.1
48		 kHz
ADC DYNAMIC PERFORMANCE(6)
THD+N Total harmonic distortion plus noise VIN = –1 dB of 0.43 VCCA 0.01% 0.02%
Dynamic range A-weighted 82 90 dB
SNR Signal-to-noise ratio A-weighted 84 92 dB
ADC DC ACCURACY
Gain error ±2 ±10 % of FSR
Bipolar zero error ±0 % of FSR
ANALOG INPUT
Input voltage 0.43 VCCA VPP
Center voltage 0.5 VCCA V
Antialiasing filter frequency response –3 dB 150 kHz
fIN = 20 kHz –0.08 dB
MICROPHONE AMPLIFIER
Gain 0 20 dB
Input impedance 20 kΩ
INPUT PGA
Gain range –12 30 dB
Gain step size 1 dB
ADC DIGITAL FILTER PERFORMANCE
Passband 0.454 fS Hz
Stop band 0.583 fS Hz
Passband ripple –0.02 0.02 dB
Stop-band attenuation –65 dB
Delay time 17.4/fS s
HPF frequency response –3 dB 0.078 fS/1000 Hz
DIGITAL-TO-ANALOG CONVERTER (DAC) CHARACTERISTICS
Resolution 16 Bits
Audio data channel 1, 2 Channel
Sampling frequency 8
11.025
16
22.05
32
44.1
48 		kHz
DAC DYNAMIC PERFORMANCE(7)
THD+N Total harmonic distortion plus noise RL > 10 kΩ, VOUT = 0 dB of 0.6 VCCA 0.01% 0.02%
RL = 32 Ω, VOUT = 0 dB of 0.55 VCCA 0.02% 0.05%
Dynamic range EIAJ, A-weighted 82 90 dB
SNR Signal-to-noise ratio EIAJ, A-weighted 84 92 dB
Channel separation RL > 10 kΩ 80 88 dB
DAC DC ACCURACY
Gain mismatch channel-to-channel –10 ±2 10 % of FSR
Gain error –10 ±2 10 % of FSR
Bipolar zero error ±3 % of FSR
ANALOG OUTPUT
Output voltage RL > 10 kΩ 0.6 VCCA VPP
RL = 32 Ω 0.55 VCCA
Center voltage 0.5 VCCA V
Output power RL = 32 Ω 13 mW
RL = 16 Ω 25
Load impedance (AC coupling) Line 10 kΩ
Headphone 16 32 Ω
LPF frequency response –3 dB 140 kHz
f = 20 kHz –0.1 dB
SIDETONE PROGRAMMABLE ATTENUATOR
Gain range –76 0 dB
Gain step size 1 dB
OUTPUT PROGRAMMABLE ATTENUATOR
Gain range –76 0 dB
Gain step size 1 dB
ANALOG LOOPBACK PERFORMANCE(8)
THD+N Total harmonic distortion plus noise RL > 10 kΩ, VIN = 0 dB of 0.43 VCCA 0.01% 0.02%
RL = 32 Ω, VIN = 0 dB of 0.43 VCCA 0.02% 0.05%
Dynamic range EIAJ, A-weighted 82 90 dB
SNR Signal-to-noise ratio EIAJ, A-weighted 84 92 dB
DAC DIGITAL FILTER PERFORMANCE
Passband 0.445 fS Hz
Stop band 0.555 fS Hz
Passband ripple ±0.1 dB
Stop-band attenuation –43 dB
Delay time 14.3/fS s
POWER-SUPPLY REQUIREMENTS
VBUS Voltage range Bus-powered 4.35 5 5.25 VDC
Supply current ADC, DAC operation (RL = 32 Ω) 85 100 mA
Suspend mode(9) 220 300 μA
Power dissipation ADC, DAC Operation 425 500 mW
Suspend mode(9) 0.8 1 mW
VCCP,VCCL VCCR,VCCA VDD Internally-generated power supply voltage(10) 3 3.3 3.6 VDC
TEMPERATURE RANGE
Operation temperature –25 85 °C
(1) Pins 3, 4: D–, D+.
(2) Pins 8, 23, 24, 27, 28: XTI, MAMP, POWER, TEST1, TEST0
(3) Pin 30: MMUTE
(4) Pins 7, 29: XTO, SSPND
(5) Pins 31, 32: REC, PLAY.
(6) fIN = 1 kHz, using Audio Precision™System Two™, RMS mode with 20-kHz LPF, 400-Hz HPF in calculation. Microphone amplifier = 0 dB, PGA = 0 dB.
(7) fOUT = 1 kHz, using Audio Precision System Two, RMS mode with 20-kHz LPF, 400-Hz HPF. Output attenuator = 0 dB,
Sidetone = Mute.
(8) MIC Amp = 0 dB, Sidetone attenuator = 0 dB, Output attenuator = 0 dB.
(9) Under USB suspend state
(10) Pins 5, 15, 19, 21, 26: VDD, VCCA, VCCL, VCCR, VCCP.

7.6 Typical Characteristics

7.6.1 ADC Digital Decimation Filter Frequency Response

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.
PCM2912A amp_f_les230.gifFigure 1. Overall Characteristic
PCM2912A bp_ripp_les230.gifFigure 3. Passband Ripple

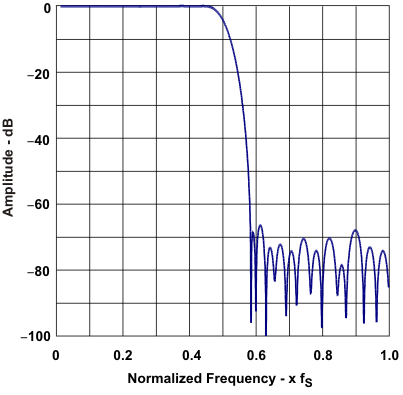

PCM2912A stopb_atn_les230.gifFigure 2. Stop Band Attenuation
PCM2912A trn_res_les230.gifFigure 4. Transient Band Response

7.6.2 ADC Digital High-Pass Filter Frequency Response

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.

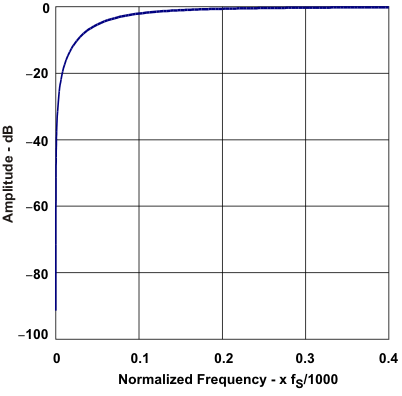

PCM2912A stopb_chr_les230.gifFigure 5. Stop Band Characteristic

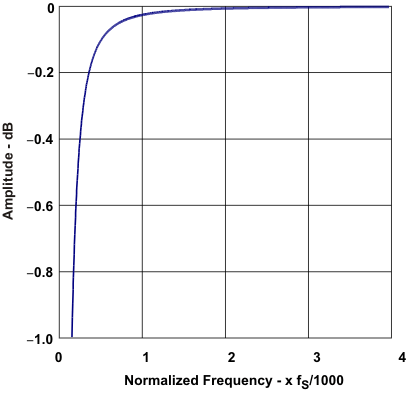

PCM2912A passb_chr_les230.gifFigure 6. Passband Characteristic

7.6.3 ADC Analog Antialiasing Filter Frequency Response

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.

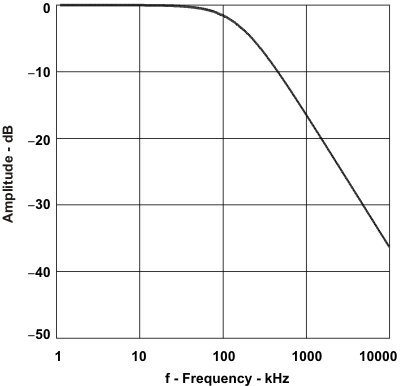

PCM2912A stopb_f_les230.gifFigure 7. Stop Band Characteristic
PCM2912A passb_f_les230.gifFigure 8. Passband Characteristic

7.6.4 DAC Digital Interpolation Filter Frequency Response

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.

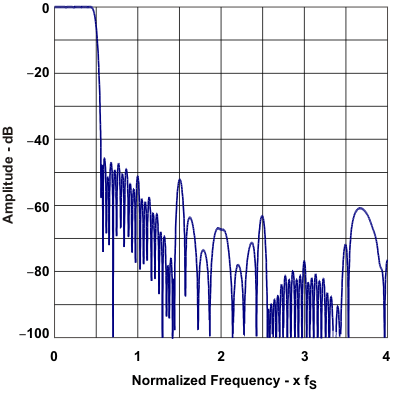

PCM2912A sb_attn_les230.gifFigure 9. Stop Band Attenuation

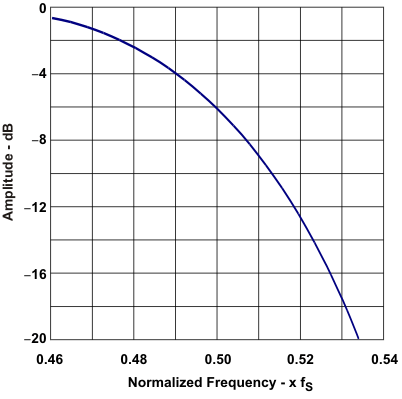

PCM2912A trnsb_res_les230.gifFigure 11. Transient Band Response
PCM2912A bp2_ripp_les230.gifFigure 10. Passband Ripple

7.6.5 DAC Analog FIR Filter Frequency Response

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.

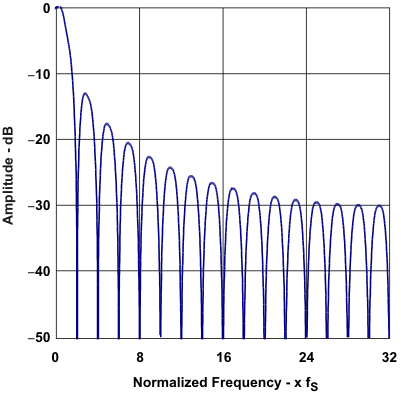

PCM2912A sb_chr_les230.gifFigure 12. Stop Band Characteristic

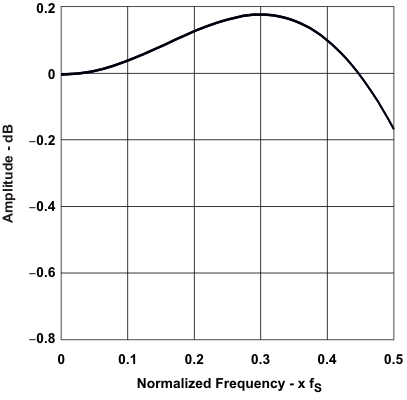

PCM2912A pb_chr_les230.gifFigure 13. Passband Characteristic

7.6.6 DAC Analog Low-Pass Filter Frequency Response

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.

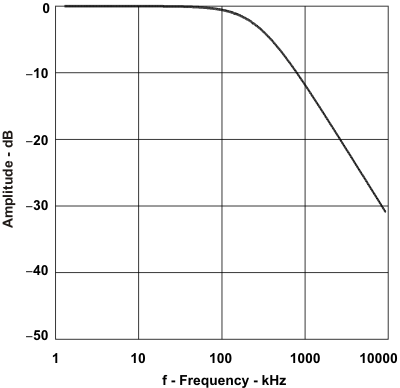

PCM2912A sp_f_les230.gifFigure 14. Stop Band Characteristic
PCM2912A pb_f_chr_les230.gifFigure 15. Passband Characteristic

7.6.7 ADC

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.
PCM2912A thdn_ta_les230.gifFigure 16. THD+N at –1 dB vs Temperature

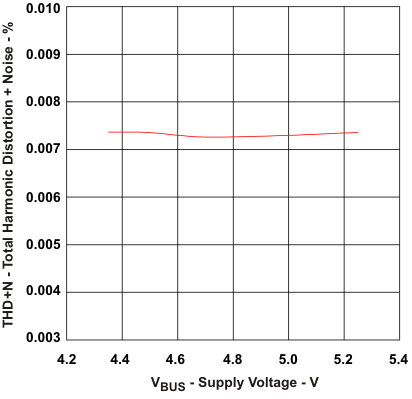

PCM2912A thdn_v_les230.gifFigure 18. THD+N at –1 dB vs Supply Voltage
PCM2912A thdn_fs_les230.gifFigure 20. THD+N at –1 dB vs Sampling Frequency
PCM2912A dr_ta_les230.gifFigure 17. Dynamic Range and Signal-to-Noise Ratio vs Temperature
PCM2912A dr_v_les230.gifFigure 19. Dynamic Range and Signal-to-Noise Ratio vs Supply Voltage

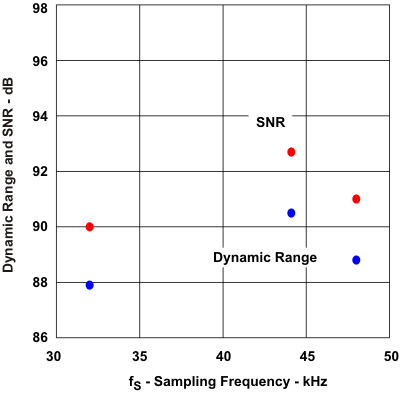

PCM2912A dr_fs_les230.gifFigure 21. Dynamic Range and Signal-to-Noise Ratio vs Sampling Frequency

7.6.8 DAC

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.
PCM2912A thdn2_ta_les230.gifFigure 22. THD+N at 0 dB vs Temperature
PCM2912A thdn2_v_les230.gifFigure 24. THD+N at 0 dB vs Supply Voltage

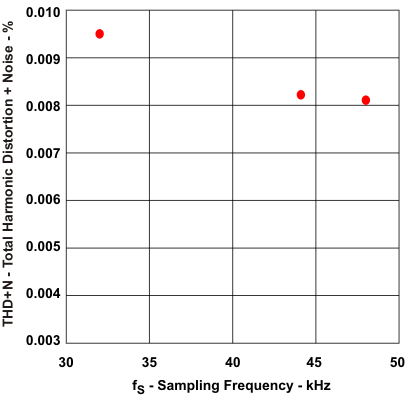

PCM2912A thdn2_fs_les230.gifFigure 26. THD+N at 0 dB vs Sampling Frequency

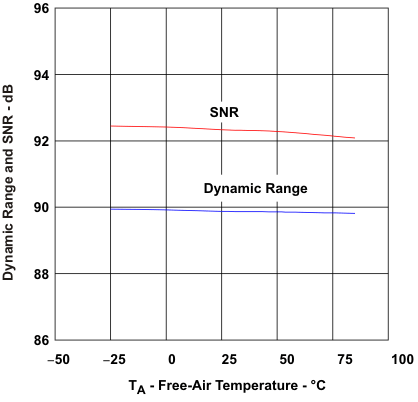

PCM2912A d2r_ta_les230.gifFigure 23. Dynamic Range and Signal-to-Noise Ratio vs Temperature

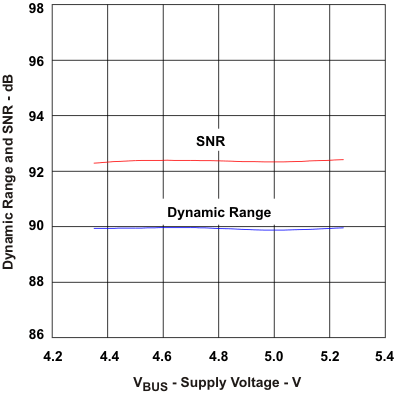

PCM2912A dr2_v_les230.gifFigure 25. Dynamic Range and Signal-to-Noise Ratio vs Supply Voltage
PCM2912A dr2_fs_les230.gifFigure 27. Dynamic Range and Signal-to-Noise Ratio vs Sampling Frequency

7.6.9 Supply Current

All specifications at TA = 25°C, VBUS = 5 V, fS = 44.1 kHz, fIN = 1 kHz, and 16-bit data, unless otherwise noted.

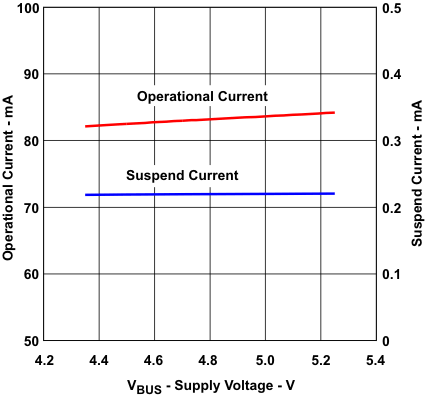

PCM2912A sup_cur_sv_les230.gifFigure 28. Supply Current vs Supply Voltage

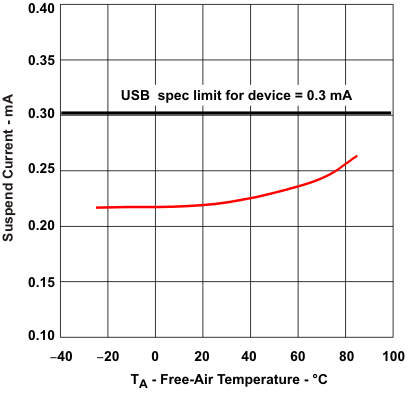

PCM2912A sc_ta_les230.gifFigure 30. Supply Current vs Temperature at Suspend Mode
PCM2912A sc_fs_les230.gifFigure 29. Supply Current vs Sampling Frequency
