7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VS– to VS+ Supply voltage 5.5 V
VI Input voltage VS– – 0.7 VS+ + 0.7 V
VID Differential input voltage 1 V
II Continuous input current 0.85 mA
IO Continuous output current 60 mA
Continuous power dissipation See Thermal Information
TJ Maximum junction temperature 150 °C
TA Operating free-air temperature –40 125 °C
Tstg Storage temperature –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per AEC Q100-002(1) ±6000 V
Charged-device model (CDM), per AEC Q100-011 ±1000
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VS+ Single supply voltage 2.5 5 5.5 V
TA Ambient temperature –40 25 125 °C

7.4 Thermal Information

THERMAL METRIC(1) OPA2836-Q1 UNIT
DGK (VSSOP)
8 PINS
RθJA Junction-to-ambient thermal resistance 177.7 °C/W
RθJCtop Junction-to-case (top) thermal resistance 69.3 °C/W
RθJB Junction-to-board thermal resistance 98.8 °C/W
ψJT Junction-to-top characterization parameter 11.7 °C/W
ψJB Junction-to-board characterization parameter 97.2 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

7.5 Electrical Characteristics: VS = 2.7 V

test conditions unless otherwise noted: VS+ = 2.7 V, VS– = 0 V, VOUT = 1 VPP, RF = 0 Ω, RL = 2 kΩ, G = 1 V/V, input and output referenced to mid-supply, VIN_CM = mid-supply – 0.5 V; TA = 25°C (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT TEST LEVEL(1)
AC PERFORMANCE
Small-signal bandwidth VOUT = 100 mVPP, G = 1 200 MHz C
VOUT = 100 mVPP, G = 2 100 C
VOUT = 100 mVPP, G = 5 26 C
VOUT = 100 mVPP, G = 10 11 C
Gain-bandwidth product VOUT = 100 mVPP, G = 10 110 MHz C
Large-signal bandwidth VOUT = 1 VPP, G = 2 60 MHz C
Bandwidth for 0.1-dB flatness VOUT = 1 VPP, G = 2 25 MHz C
Slew rate, rise VOUT = 1 VSTEP, G = 2 260 V/µs C
Slew rate, fall VOUT = 1 VSTEP, G = 2 240 V/µs C
Rise time VOUT = 1 VSTEP, G = 2 4 ns C
Fall time VOUT = 1 VSTEP, G = 2 4.5 ns C
Settling time to 1%, rise VOUT = 1 VSTEP, G = 2 15 ns C
Settling time to 1%, fall VOUT = 1 VSTEP, G = 2 15 ns C
Settling time to 0.1%, rise VOUT = 1 VSTEP, G = 2 30 ns C
Settling time to 0.1%, fall VOUT = 1 VSTEP, G = 2 25 ns C
Settling time to 0.01%, rise VOUT = 1 VSTEP, G = 2 50 ns C
Settling time to 0.01%, fall VOUT = 1 VSTEP, G = 2 45 ns C
Overshoot VOUT = 1 VSTEP, G = 2 5% C
Undershoot VOUT = 1 VSTEP, G = 2 3% C
Second-order harmonic distortion f = 10 kHz, VIN_CM = mid-supply – 0.5 V –133 dBc C
f = 100 kHz, VIN_CM = mid-supply – 0.5 V –120 C
f = 1 MHz, VIN_CM = mid-supply – 0.5 V –84 C
Third-order harmonic distortion f = 10 kHz, VIN_CM = mid-supply – 0.5 V –137 dBc C
f = 100 kHz, VIN_CM = mid-supply – 0.5 V –130 C
f = 1 MHz, VIN_CM = mid-supply – 0.5 V –105 C
Second-order intermodulation distortion f = 1 MHz, 200-kHz tone spacing,
VOUT envelope = 1 VPP,
VIN_CM = mid-supply – 0.5 V		 –90 dBc C
Third-order intermodulation distortion f = 1 MHz, 200-kHz tone spacing,
VOUT envelope = 1 VPP,
VIN_CM = mid-supply – 0.5 V		 –90 dBc C

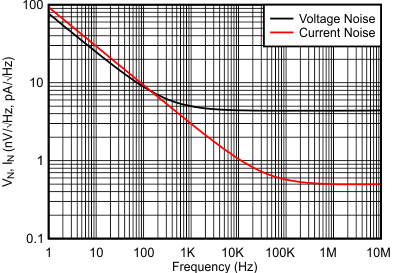

Input voltage noise f = 100 kHz 4.6 nV/√Hz C
Voltage noise 1/f corner frequency 215 Hz C
Input current noise f = 1 MHz 0.75 pA/√Hz C
Current noise 1/f corner frequency 31.7 kHz C
Overdrive recovery time Overdrive = 0.5 V 55 ns C
Underdrive recovery time Underdrive = 0.5 V 60 ns C

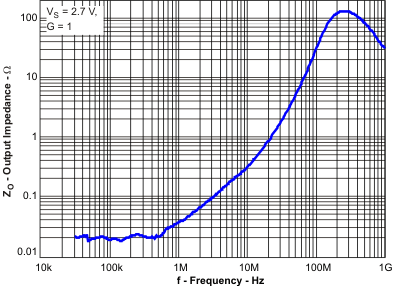

Closed-loop output impedance f = 100 kHz 0.02 Ω C
Channel-to-channel crosstalk f = 10 kHz –120 dB C
DC PERFORMANCE
Open-loop voltage gain (AOL) 100 125 dB A
Input-referred offset voltage TA = 25°C –400 ±65 400 µV A
TA = –40°C to +85°C –760 760 B
TA = –40°C to +125°C –1060 1060 B
Input offset voltage drift(2) TA = –40°C to +85°C –6 ±1 6 µV/°C B
TA = –40°C to +125°C –6.6 ±1.1 6.6 B
DC PERFORMANCE (continued)
Input bias current(3) TA = 25°C 200 650 1000 nA A
TA = –40°C to +85°C 120 1500 B
TA = –40°C to +125°C 100 1800 B
Input bias current drift(2) TA = –40°C to +85°C –1.9 ±0.32 1.9 nA/°C B
TA = –40°C to +125°C –3.5 ±0.37 2.1 B
Input offset current TA = 25°C –180 ±30 180 nA A
B
TA = –40°C to +85°C –215 ±30 215
TA = –40°C to +125°C –240 ±30 240 B
Input offset current drift(2) TA = –40°C to +85°C –575 ±95 575 pA/°C B
TA = –40°C to +125°C –600 ±100 600 B
INPUT
Common-mode input range, low TA = 25°C,
< 3-dB degradation in CMRR limit		 –0.2 0 V A
TA = –40°C to 125°C,
< 3-dB degradation in CMRR limit		 –0.2 0 V B
Common-mode input range, high TA = 25°C,
< 3-dB degradation in CMRR limit		 1.5 1.6 V A
TA = –40°C to 125°C,
< 3-dB degradation in CMRR limit		 1.5 1.6 V B
Input linear operating voltage range TA = 25°C,
< 6-dB degradation in THD		 –0.3 to 1.75 V C
Common-mode rejection ratio 91 114 dB A
Input impedance common-mode 200 || 1.2 kΩ || pF C
Input impedance differential mode 200 || 1 kΩ || pF C
OUTPUT

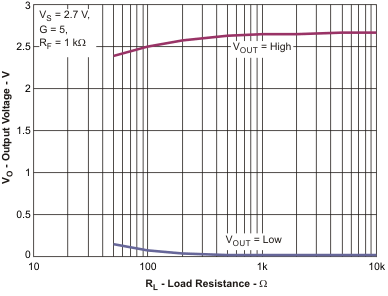

Output voltage, low TA = 25°C, G = 5 0.15 0.2 V A
TA = –40°C to +125°C, G = 5 0.15 0.2 V B
Output voltage, high TA = 25°C, G = 5 2.45 2.5 V A
TA = –40°C to +125°C, G = 5 2.45 2.5 V B
Output saturation voltage, high TA = 25°C, G = 5 80 mV C
Output saturation voltage, low TA = 25°C, G = 5 40 mV C
Output current drive TA = 25°C ±40 ±45 mA A
TA = –40°C to +125°C ±40 ±45 mA B
POWER SUPPLY
Specified operating voltage 2.5 5.5 V B
Quiescent operating current per amplifier TA = 25°C 0.7 0.95 1.15 mA A
TA = –40°C to +125°C 0.6 1.6 mA B
Power-supply rejection ratio (±PSRR) 91 108 dB A
(1) Test levels (all values set by characterization and simulation): (A) 100% tested at 25°C; over temperature limits by characterization and simulation. (B) Not tested in production; limits set by characterization and simulation. (C) Typical value only for information.
(2) Input offset voltage drift, input bias current drift, and input offset current drift are average values calculated by taking data at the end points, computing the difference, and dividing by the temperature range.
(3) Current is considered positive out of the pin.

7.6 Electrical Characteristics: VS = 5 V

test conditions unless otherwise noted: VS+ = 5 V, VS– = 0 V, VOUT = 2 VPP, RF = 0 Ω, RL = 1 kΩ, G = 1 V/V, input and output referenced to mid-supply; TA = 25°C (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT TEST LEVEL(1)
AC PERFORMANCE
Small-signal bandwidth VOUT = 100 mVPP, G = 1 205 MHz C
VOUT = 100 mVPP, G = 2 100 C
VOUT = 100 mVPP, G = 5 28 C
VOUT = 100 mVPP, G = 10 11.8 C
Gain-bandwidth product VOUT = 100 mVPP, G = 10 118 MHz C
Large-signal bandwidth VOUT = 2 VPP, G = 2 87 MHz C
Bandwidth for 0.1-dB flatness VOUT = 2 VPP, G = 2 29 MHz C
Slew rate, rise VOUT = 2-V step, G = 2 560 V/µs C
Slew rate, fall VOUT = 2-V step, G = 2 580 V/µs C
Rise time VOUT = 2-V step, G = 2 3 ns C
Fall time VOUT = 2-V Step, G = 2 3 ns C
Settling time to 1%, rise VOUT = 2-V step, G = 2 22 ns C
Settling time to 1%, fall VOUT = 2-V step, G = 2 22 ns C
Settling time to 0.1%, rise VOUT = 2-V step, G = 2 30 ns C
Settling time to 0.1%, fall VOUT = 2-V step, G = 2 30 ns C
Settling time to 0.01%, rise VOUT = 2-V step, G = 2 40 ns C
Settling time to 0.01%, fall VOUT = 2-V step, G = 2 45 ns C
Overshoot VOUT = 2-V step, G = 2 7.5% C
Undershoot VOUT = 2-V step, G = 2 5% C
Second-order harmonic distortion f = 10 kHz –133 dBc C
f = 100 kHz –120 C
f = 1 MHz –85 C
Third-order harmonic distortion f = 10 kHz –140 dBc C
f = 100 kHz –130 C
f = 1 MHz –105 C
Second-order intermodulation distortion f = 1 MHz, 200-kHz tone spacing,
VOUT envelope = 2 VPP		 –79 dBc C
Third-order intermodulation distortion f = 1 MHz, 200-kHz tone spacing,
VOUT envelope = 2 VPP		 –91 dBc C
Signal-to-noise ratio (SNR) f = 1 kHz, VOUT = 1 VRMS,
22-kHz bandwidth		 0.00013% C
–117.6 dBc C
Total harmonic distortion (THD) f = 1 kHz, VOUT = 1 VRMS 0.00003% C
–130 dBc C
Input voltage noise f = 100 KHz 4.6 nV/√Hz C
Voltage noise 1/f corner frequency 215 Hz C
Input current noise f > 1 MHz 0.75 pA/√Hz C
Current noise 1/f corner frequency 31.7 kHz C
Overdrive recovery time Overdrive = 0.5 V 55 ns C
Underdrive recovery time Underdrive = 0.5 V 60 ns C
Closed-loop output impedance f = 100 kHz 0.02 Ω C
Channel-to-channel crosstalk f = 10 kHz –120 dB C
DC PERFORMANCE
Open-loop voltage gain (AOL) 100 122 dB A
Input-referred offset voltage TA = 25°C –400 ±65 400 µV A
B
TA = –40°C to +85°C –765 765
TA = –40°C to +125°C –1080 1080 B
DC PERFORMANCE (continued)
Input offset voltage drift(2) TA = –40°C to +85°C –6.1 ±1 6.1 µV/°C B
TA = –40°C to +125°C –6.8 ±1.1 6.8 B
Input bias current(3) TA = 25°C 200 650 1000 nA A
B
TA = –40°C to +85°C 120 1550
TA = –40°C to +125°C 100 1850 B
Input bias current drift(2) TA = –40°C to +85°C ±0.34 ±2 nA/°C B
TA = –40°C to +125°C ±0.38 ±3.8 B
Input offset current TA = 25°C ±30 ±180 nA A
B
TA = –40°C to +85°C ±30 ±215
TA = –40°C to +125°C ±30 ±250 B
Input offset current drift(2) TA = –40°C to +85°C ±100 ±600 pA/°C B
TA = –40°C to +125°C ±110 ±660 B
INPUT
Common-mode input range low TA = 25°C,
< 3-dB degradation in CMRR limit		 –0.2 0 V A
TA = –40°C to 125°C,
< 3-dB degradation in CMRR limit		 –0.2 0 V B
Common-mode input range high TA = 25°C,
< 3-dB degradation in CMRR limit		 3.8 3.9 V A
TA = –40°C to 125°C,
< 3-dB degradation in CMRR limit		 3.8 3.9 V B
Input linear operating voltage range TA = 25°C,
< 6-dB degradation in THD		 –0.3 to 4.05 V C
Common-mode rejection ratio 94 116 dB A
Input impedance common mode 200 || 1.2 kΩ || pF C
Input impedance differential mode 200 || 1 kΩ || pF C
OUTPUT
Output voltage low TA = 25°C, G = 5 0.15 0.2 V A
TA = –40°C to +125°C, G = 5 0.15 0.2 V B
Output voltage high TA = 25°C, G = 5 4.75 4.8 V A
TA = –40°C to +125°C, G = 5 4.75 4.8 V B
Output saturation voltage, high TA = 25°C, G = 5 100 mV C
Output saturation voltage, low TA = 25°C, G = 5 50 mV C
Output current drive TA = 25°C ±40 ±50 mA A
TA = –40°C to +125°C ±40 ±50 mA B
POWER SUPPLY
Specified operating voltage 2.5 5.5 V B
Quiescent operating current per amplifier TA = 25°C 0.8 1.0 1.2 mA A
TA = –40°C to +125°C 0.65 1.7 mA B
Power-supply rejection ratio (±PSRR) 94 108 dB A
(1) Test levels (all values set by characterization and simulation): (A) 100% tested at 25°C; over temperature limits by characterization and simulation. (B) Not tested in production; limits set by characterization and simulation. (C) Typical value only for information.
(2) Input offset voltage drift, input bias current drift, and input offset current drift are average values calculated by taking data at the end points, computing the difference, and dividing by the temperature range.
(3) Current is considered positive out of the pin.

7.7 Typical Characteristics

7.7.1 Typical Characteristics: VS = 2.7 V

test conditions unless otherwise noted: VS+ = 2.7 V, VS– = 0 V, VOUT = 1 VPP, RF = 0 Ω, RL = 2 kΩ, G = 1 V/V, input and output referenced to mid-supply, VIN_CM = mid-supply – 0.5 V; TA = 25°C (unless otherwise noted)

Table 1. Table of Graphs

FIGURE TITLE FIGURE LOCATION
Small-Signal Frequency Response Figure 1
Large-Signal Frequency Response Figure 2
Noninverting Pulse Response Figure 3
Inverting Pulse Response Figure 4
Slew Rate vs Output Voltage Step Figure 5
Output Overdrive Recovery Figure 6
Harmonic Distortion vs Frequency Figure 7
Harmonic Distortion vs Load Resistance Figure 8
Harmonic Distortion vs Output Voltage Figure 9
Harmonic Distortion vs Gain Figure 10
Output Voltage Swing vs Load Resistance Figure 11
Output Saturation Voltage vs Load Current Figure 12
Output Impedance vs Frequency Figure 13
Frequency Response With Capacitive Load Figure 14
Series Output Resistor vs Capacitive Load Figure 17
Input-Referred Noise vs Frequency Figure 16
Open-Loop Gain vs Frequency Figure 15
Common-Mode, Power-Supply Rejection Ratios vs Frequency Figure 18
Crosstalk vs Frequency Figure 19
Input Offset Voltage Figure 22
Input Offset Voltage vs Free-Air Temperature Figure 20
Input Offset Voltage Drift Figure 46
Input Offset Current Figure 23
Input Offset Current vs Free-Air Temperature Figure 24
Input Offset Current Drift Figure 25

test conditions unless otherwise noted: VS+ = 2.7 V, VS– = 0 V, VOUT = 1 VPP, RF = 0 Ω, RL = 2 kΩ, G = 1 V/V, input and output referenced to mid-supply, VIN_CM = mid-supply – 0.5 V; TA = 25°C (unless otherwise noted)

OPA2836-Q1 gain_f_los712.gif
Figure 1. Small-Signal Frequency Response
OPA2836-Q1 vo_t_los712.gif
Figure 3. Noninverting Pulse Response
OPA2836-Q1 SR_VS_los712.gif
Figure 5. Slew Rate vs Output Voltage Step
OPA2836-Q1 tcA15_27v_los712.gif
Figure 7. Harmonic Distortion vs Frequency
OPA2836-Q1 tcA13_27v_los712.gif
Figure 9. Harmonic Distortion vs Output Voltage
OPA2836-Q1 vo_rl_los712.gif
Figure 11. Output Voltage Swing vs Load Resistance
OPA2836-Q1 zo_f_los712.gif
Figure 13. Output Impedance vs Frequency
OPA2836-Q1 C001_SLOS712.png
VS = 2.7 V
Figure 15. Open-Loop Gain vs Frequency
OPA2836-Q1 tcA1_27v_los712.gif
Figure 17. Series Output Resistor vs Capacitive Load
OPA2836-Q1 OPA2836IDGS_Xtalk_LOS712.gif
Figure 19. Crosstalk vs Frequency
OPA2836-Q1 tcA5_27v_los712.gif
Figure 21. Input Offset Voltage Drift
OPA2836-Q1 tcA6_27v_los712.gif
I.
Figure 23. Input Offset Current
OPA2836-Q1 tcA8_27v_los712.gif
Figure 25. Input Offset Current Drift
OPA2836-Q1 lg_gain_f_los712.gif
Figure 2. Large-Signal Frequency Response
OPA2836-Q1 vo2_t_los712.gif
Figure 4. Inverting Pulse Response
OPA2836-Q1 vi_vo_t_los712.gif
Figure 6. Output Overdrive Recovery
OPA2836-Q1 tcA14_27v_los712.gif
Figure 8. Harmonic Distortion vs Load Resistance
OPA2836-Q1 tcA2_27v_los712.gif
Figure 10. Harmonic Distortion vs Gain
OPA2836-Q1 vsat_IL_los712.gif
Figure 12. Output Saturation Voltage vs Load Current
OPA2836-Q1 load_g_f_los712.gif
Figure 14. Frequency Response With Capacitive Load
OPA2836-Q1 D002_SLOS712.gif
VS = 2.7 V
Figure 16. Input-Referred Noise vs Frequency
OPA2836-Q1 tcA12_27v_los712.gif
Figure 18. Common-Mode, Power-Supply Rejection Ratios vs Frequency
OPA2836-Q1 tcA4_27v_los712.gif
Figure 20. Input Offset Voltage vs Free-Air Temperature
OPA2836-Q1 tcA3_27v_los712.gif
Figure 22. Input Offset Voltage
OPA2836-Q1 tcA7_27v_los712.gif
Figure 24. Input Offset Current vs Free-Air Temperature

7.7.2 Typical Characteristics: VS = 5 V

test conditions unless otherwise noted: VS+ = 5 V, VS– = 0 V, VOUT = 2 VPP, RF = 0 Ω, RL = 1 kΩ, G = 1 V/V, input and output referenced to mid-supply; TA = 25°C (unless otherwise noted)

Table 2. Table of Graphs

FIGURE TITLE FIGURE LOCATION
Small-Signal Frequency Response Figure 26
Large-Signal Frequency Response Figure 27
Noninverting Pulse Response Figure 28
Inverting Pulse Response Figure 29
Slew Rate vs Output Voltage Step Figure 30
Output Overdrive Recovery Figure 31
Harmonic Distortion vs Frequency Figure 32
Harmonic Distortion vs Load Resistance Figure 33
Harmonic Distortion vs Output Voltage Figure 34
Harmonic Distortion vs Gain Figure 35
Output Voltage Swing vs Load Resistance Figure 36
Output Saturation Voltage vs Load Current Figure 37
Output Impedance vs Frequency Figure 38
Frequency Response With Capacitive Load Figure 39
Series Output Resistor vs Capacitive Load Figure 42
Input-Referred Noise vs Frequency Figure 40
Open-Loop Gain vs Frequency Figure 41
Common-Mode, Power-Supply Rejection Ratios vs Frequency Figure 43
Crosstalk vs Frequency Figure 44
Input Offset Voltage Figure 47
Input Offset Voltage vs Free-Air Temperature Figure 45
Input Offset Voltage Drift Figure 46
Input Offset Current Figure 48
Input Offset Current vs Free-Air Temperature Figure 49
Input Offset Current Drift Figure 50

test conditions unless otherwise noted: VS+ = 5 V, VS– = 0 V, VOUT = 2 VPP, RF = 0 Ω, RL = 1 kΩ, G = 1 V/V, input and output referenced to mid-supply; TA = 25°C (unless otherwise noted)

OPA2836-Q1 gainB_f_los712.gif
Figure 26. Small-Signal Frequency Response
OPA2836-Q1 voB_t_los712.gif
Figure 28. Noninverting Pulse Response
OPA2836-Q1 SRB_VS_los712.gif
Figure 30. Slew Rate vs Output Voltage Step
OPA2836-Q1 tcB13_5v_los712.gif
Figure 32. Harmonic Distortion vs Frequency
OPA2836-Q1 tcB14_5v_los712.gif
Figure 34. Harmonic Distortion vs Output Voltage
OPA2836-Q1 voB_rl_los712.gif
Figure 36. Output Voltage Swing vs Load Resistance
OPA2836-Q1 zoB_f_los712.gif
Figure 38. Output Impedance vs Frequency

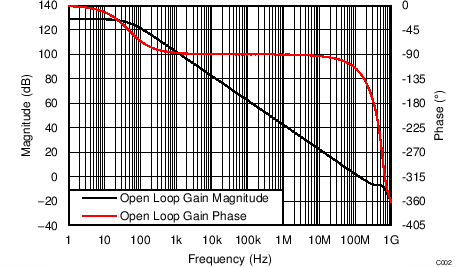

OPA2836-Q1 C002_SLOS712.png
VS = 5.0 V
Figure 40. Open-Loop Gain vs Frequency
OPA2836-Q1 tcB1_5v_los712.gif
Figure 42. Series Output Resistor vs Capacitive Load
OPA2836-Q1 OPA2836IDGS_Xtalk_LOS712.gif
Figure 44. Crosstalk vs Frequency
OPA2836-Q1 tcB5_5v_los712.gif
Figure 46. Input Offset Voltage Drift
OPA2836-Q1 tcB6_5v_los712.gif
Figure 48. Input Offset Current
OPA2836-Q1 tcB8_5v_los712.gif
Figure 50. Input Offset Current Drift
OPA2836-Q1 lgB_gain_f_los712.gif
Figure 27. Large-Signal Frequency Response
OPA2836-Q1 vo2B_t_los712.gif
Figure 29. Inverting Pulse Response
OPA2836-Q1 viB_vo_t_los712.gif
Figure 31. Output Overdrive Recovery
OPA2836-Q1 tcB15_5v_los712.gif
Figure 33. Harmonic Distortion vs Load Resistance
OPA2836-Q1 tcB2_5v_los712.gif
Figure 35. Harmonic Distortion vs Gain
OPA2836-Q1 vsatB_IL_los712.gif
Figure 37. Output Saturation Voltage vs Load Current
OPA2836-Q1 loadB_g_f_los712.gif
Figure 39. Frequency Response With Capacitive Load
OPA2836-Q1 D004_SLOS712.gif
VS = 5.0 V
Figure 41. Input-Referred Noise vs Frequency
OPA2836-Q1 tcB12_5v_los712.gif
Figure 43. Common-Mode, Power-Supply Rejection Ratios vs Frequency
OPA2836-Q1 tcB4_5v_los712.gif
Figure 45. Input Offset Voltage vs Free-Air Temperature
OPA2836-Q1 tcB3_5v_los712.gif
Figure 47. Input Offset Voltage
OPA2836-Q1 tcB7_5v_los712.gif
Figure 49. Input Offset Current vs Free-Air Temperature
