6.9 Typical Characteristics

Table 1. Table of Graphs

DESCRIPTION FIGURE
Offset Voltage Production Distribution Figure 1, Figure 2, Figure 3
Offset Voltage Drift Distribution Figure 4
Offset Voltage vs Temperature Figure 5
Offset Voltage vs Common-Mode Voltage Figure 6, Figure 7, Figure 8
Offset Voltage vs Power Supply Figure 9
Open-Loop Gain and Phase vs Frequency Figure 10
Closed-Loop Gain and Phase vs Frequency Figure 11
Input Bias Current vs Common-Mode Voltage Figure 12
Input Bias Current vs Temperature Figure 13
Output Voltage Swing vs Output Current (maximum supply) Figure 14, Figure 15
CMRR and PSRR vs Frequency Figure 16
CMRR vs Temperature Figure 17
PSRR vs Temperature Figure 18
0.1-Hz to 10-Hz Noise Figure 19
Input Voltage Noise Spectral Density vs Frequency Figure 20
THD+N Ratio vs Frequency Figure 21
THD+N vs Output Amplitude Figure 22
Quiescent Current vs Supply Voltage Figure 23
Quiescent Current vs Temperature Figure 24
Open Loop Gain vs Temperature Figure 25
Open Loop Output Impedance vs Frequency Figure 26
Small Signal Overshoot vs Capacitive Load (100-mV output step) Figure 27, Figure 28
No Phase Reversal Figure 29
Positive Overload Recovery Figure 30
Negative Overload Recovery Figure 31
Small-Signal Step Response (100 mV) Figure 32, Figure 33
Large-Signal Step Response Figure 34
Settling Time Figure 35, Figure 36, ,
Short-Circuit Current vs Temperature Figure 37
Maximum Output Voltage vs Frequency Figure 38
Propagation Delay Rising Edge Figure 39
Propagation Delay Falling Edge Figure 40
at TA = 25°C, VS = ±18 V, VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2, and CL = 100 pF (unless otherwise noted)
OPA197 OPA2197 OPA4197 D040_SBOS737.gif
4770 production units

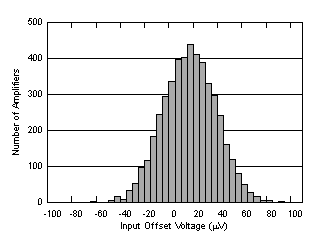

Figure 1. Offset Voltage Production Distribution at 25°C
OPA197 OPA2197 OPA4197 D024_SBOS737.gif

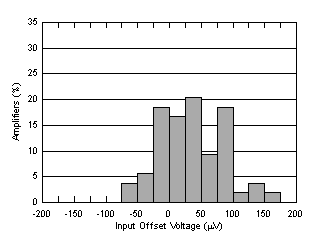

Figure 3. Offset Voltage Production Distribution at –40°C
OPA197 OPA2197 OPA4197 C001_OT.png
9 typical units

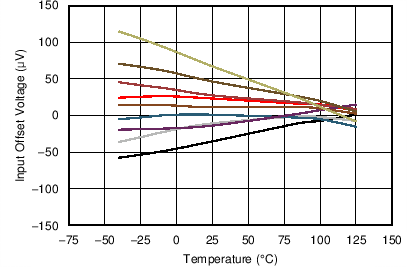

Figure 5. Offset Voltage vs Temperature
OPA197 OPA2197 OPA4197 D003_SBOS737.gif
6 typical units

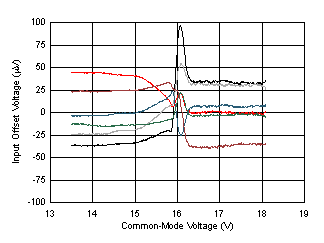

Figure 7. Offset Voltage vs Common-Mode Voltage
OPA197 OPA2197 OPA4197 D006_SBOS737.gif
6 typical units

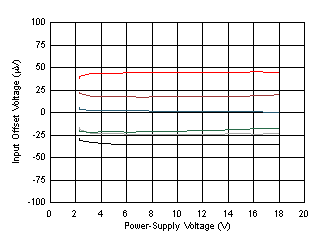

Figure 9. Offset Voltage vs Power Supply
OPA197 OPA2197 OPA4197 D053_SBOS737.gif

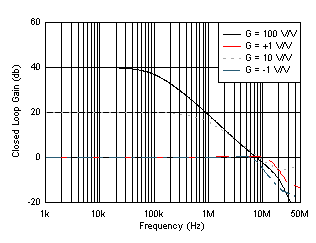

Figure 11. Closed-Loop Gain and Phase vs Frequency
OPA197 OPA2197 OPA4197 D015_SBOS737.gif
Figure 13. Input Bias Current vs Temperature
OPA197 OPA2197 OPA4197 C019_OT.png

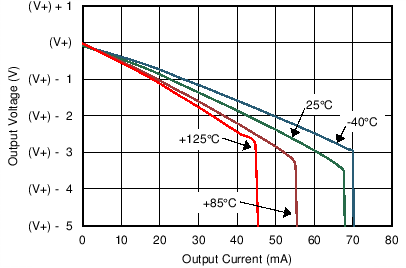

Figure 15. Output Voltage Swing from Positive Power Supply vs Output Current (Maximum Supply)
OPA197 OPA2197 OPA4197 C008_OT.png

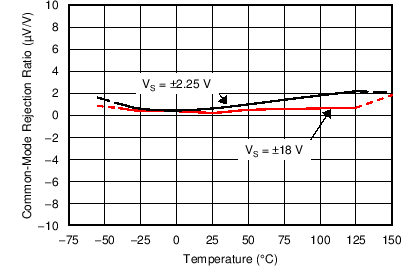

Figure 17. CMRR vs Temperature
OPA197 OPA2197 OPA4197 D001_SBOS737.gif
Peak-to-peak noise = VRMS × 6.6 = 1.30 VPP
Figure 19. 0.1-Hz to 10-Hz Noise
OPA197 OPA2197 OPA4197 D007_SBOS737.gif
VOUT = 3.5 VRMS, BW = 80 kHz
Figure 21. THD+N Ratio vs Frequency
OPA197 OPA2197 OPA4197 C012_OT.gif

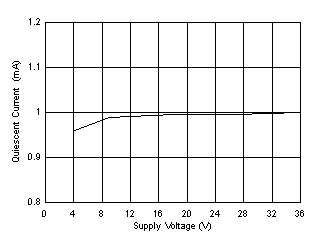

Figure 23. Quiescent Current vs Supply Voltage
OPA197 OPA2197 OPA4197 C009_OT.gif

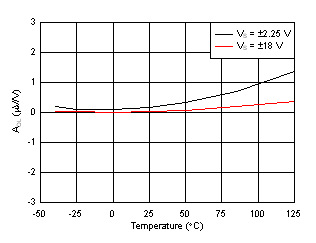

Figure 25. Open-Loop Gain vs Temperature
OPA197 OPA2197 OPA4197 D030_SBOS737.gif
G = –1 V/V
Figure 27. Small-Signal Overshoot vs Capacitive Load
(100-mV Output Step)
OPA197 OPA2197 OPA4197 D032_SBOS737.gif
VS = ±18 V, input = ±18.5 VPP
Figure 29. No Phase Reversal
OPA197 OPA2197 OPA4197 D034_SBOS737.gif
G = –10 V/V
Figure 31. Negative Overload Recovery
OPA197 OPA2197 OPA4197 D036_SBOS737.gif
G = –1 V/V
Figure 33. Small-Signal Step Response
OPA197 OPA2197 OPA4197 D134_SBOS737.gif
G = 1, 0.01% settling = ±1 mV, step applied at t = 0
Figure 35. Settling Time (10-V Positive Step)
OPA197 OPA2197 OPA4197 D016_SBOS737.gif

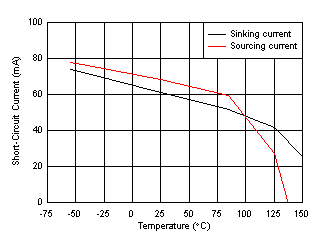

Figure 37. Short-Circuit Current vs Temperature
OPA197 OPA2197 OPA4197 C025_.png

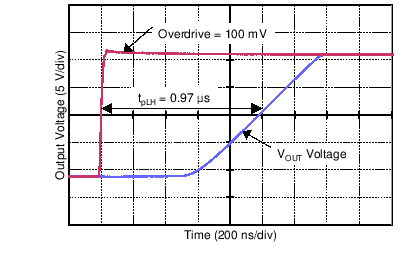

Figure 39. Propagation Delay Rising Edge
OPA197 OPA2197 OPA4197 D028_SBOS737.gif

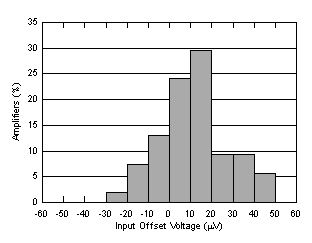

Figure 2. Offset Voltage Production Distribution at 125°C
OPA197 OPA2197 OPA4197 D021_SBOS737.gif
Figure 4. Offset Voltage Drift Distribution
from –40°C to +125°C
OPA197 OPA2197 OPA4197 D002_SBOS737.gif
6 typical units
Figure 6. Offset Voltage vs Common-Mode Voltage
OPA197 OPA2197 OPA4197 D005_SBOS737.gif
6 typical units

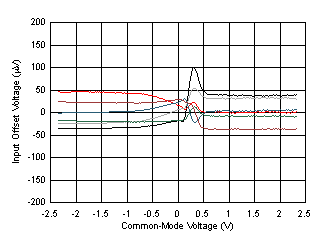

Figure 8. Offset Voltage vs Common-Mode Voltage
OPA197 OPA2197 OPA4197 D004_SBOS737.gif
CLOAD = 15 pF

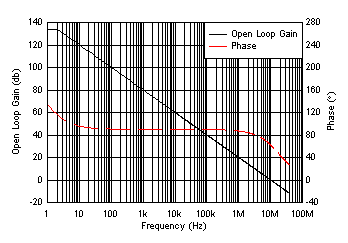

Figure 10. Open-Loop Gain and Phase vs Frequency
OPA197 OPA2197 OPA4197 C017_OT.png

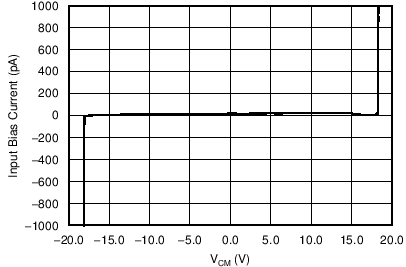

Figure 12. Input Bias Current vs Common-Mode Voltage
OPA197 OPA2197 OPA4197 C018_OT.png

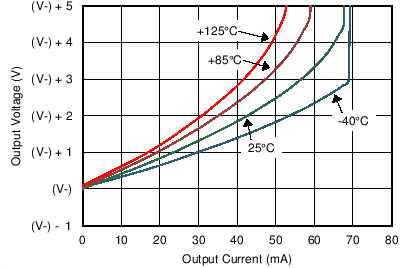

Figure 14. Output Voltage Swing from Negative Power Supply vs Output Current (Maximum Supply)
OPA197 OPA2197 OPA4197 C012_SBOS620.png

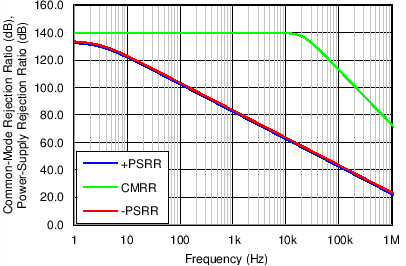

Figure 16. CMRR and PSRR vs Frequency
OPA197 OPA2197 OPA4197 C007_OT.png

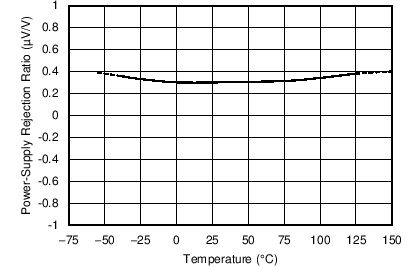

Figure 18. PSRR vs Temperature
OPA197 OPA2197 OPA4197 D052_SBOS737.gif

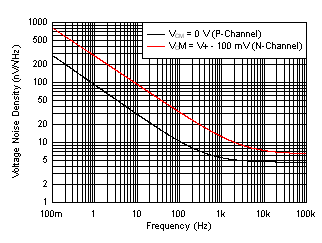

Figure 20. Input Voltage Noise Spectral Density
vs Frequency
OPA197 OPA2197 OPA4197 D008_SBOS737.gif
f = 1 kHz, BW = 80 kHz
Figure 22. THD+N vs Output Amplitude
OPA197 OPA2197 OPA4197 C011_OT.gif
Figure 24. Quiescent Current vs Temperature
OPA197 OPA2197 OPA4197 C016_SBOS737.gif

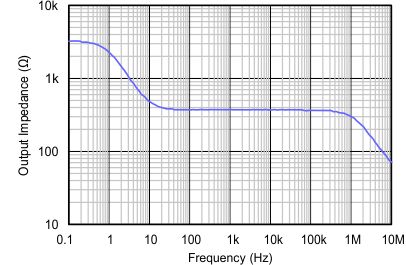

Figure 26. Open-Loop Output Impedance vs Frequency
OPA197 OPA2197 OPA4197 D031_SBOS737.gif
G = 1 V/V
Figure 28. Small-Signal Overshoot vs Capacitive Load
(100-mV Output Step)
OPA197 OPA2197 OPA4197 D033_SBOS737.gif
G = –10 V/V
Figure 30. Positive Overload Recovery
OPA197 OPA2197 OPA4197 D035_SBOS737.gif
G = 1 V/V
Figure 32. Small-Signal Step Response
OPA197 OPA2197 OPA4197 D037_SBOS737.gif
G = 1 V/V
Figure 34. Large-Signal Step Response
OPA197 OPA2197 OPA4197 D135_SBOS737.gif
G = 1, 0.01% settling = ±500 µV, step applied at t = 0

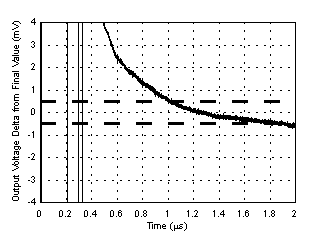

Figure 36. Settling Time (5-V Positive Step)
OPA197 OPA2197 OPA4197 C033_.png

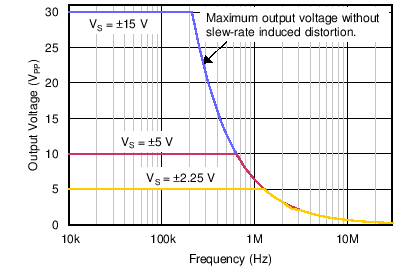

Figure 38. Maximum Output Voltage vs Frequency
OPA197 OPA2197 OPA4197 C026_.png

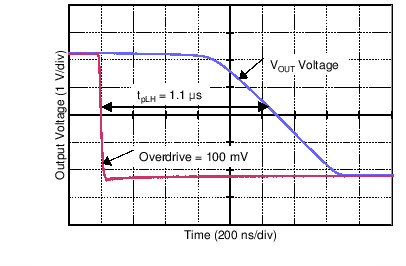

Figure 40. Propagation Delay Falling Edge
