6.6 Typical Characteristics

at TA = 25°C, VS = ±18 V, and RL = 2 kΩ (unless otherwise noted)
OPA1692 D204_SBOS566.gif
N = 1160 Mean = –139.2 µV Std. Dev. = 105.4 µV

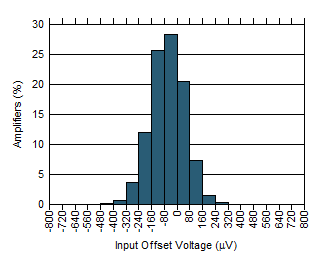

Figure 1. Input Offset Voltage Distribution
OPA1692 D013_SBOS566.gif

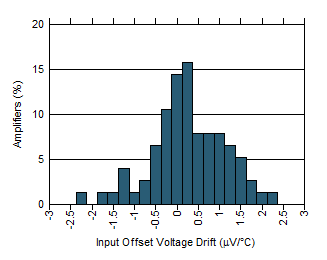

Figure 3. Offset Voltage Drift Distribution
OPA1692 D207_SBOS566.gif
N = 1160 Mean = 0.07 nA Std. Dev. = 1.58 nA

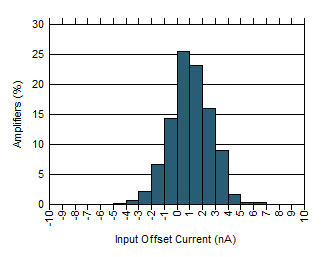

Figure 5. Input Offset Current Distribution
OPA1692 D017_SBOS566.gif
Figure 7. Open-Loop Gain and Phase vs Frequency
OPA1692 D023_SBOS566.gif
Figure 9. CMRR and PSRR vs Frequency (Referred to Input)
OPA1692 C004_SBOS566.png

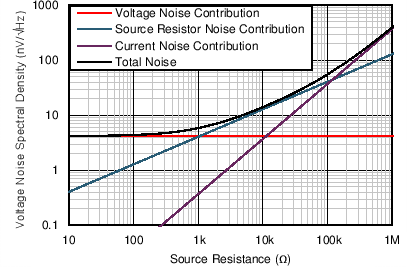

Figure 11. Voltage Noise vs Source Resistance
OPA1692 C007_SBOS566.png

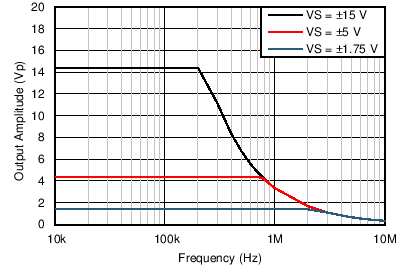

Figure 13. Maximum Output Voltage vs Frequency

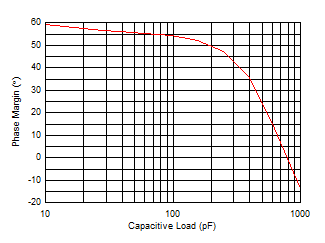

OPA1692 D022_SBOS566.gif
G = 1
Figure 15. Phase Margin vs Capacitive Load
OPA1692 D039_SBOS566.gif
G = –1 10-mV input step

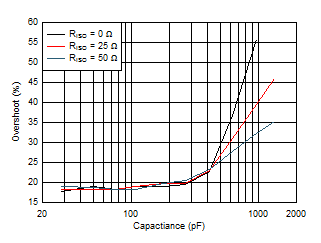

Figure 17. Overshoot vs Capacitive Load
OPA1692 D028_SBOS566.gif
VOUT = 3 VRMS RL = 600 Ω 80-kHz bandwidth
Figure 19. THD + N Ratio vs Frequency

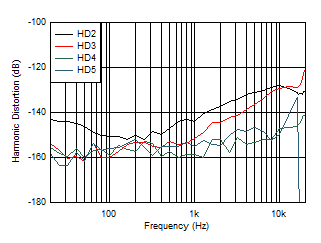

OPA1692 D019_SBOS566.gif
VOUT = 3 VRMS G = 1 80-kHz bandwidth
Figure 21. Distortion Harmonics vs Frequency

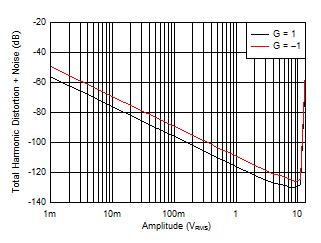

OPA1692 D024_SBOS566.gif
f = 1 kHz 80-kHz bandwidth
Figure 23. THD + N Ratio vs Output Amplitude

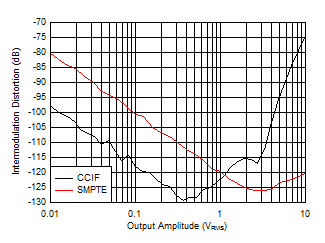

OPA1692 D021_SBOS566.gif
80-kHz bandwidth
Figure 25. Intermodulation Distortion vs Output Amplitude

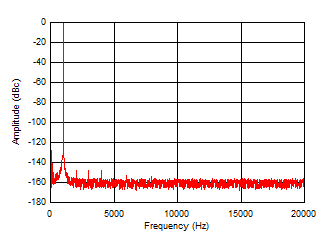

OPA1692 D202_SBOS901.gif
f = 1 kHz VO = 3 VRMS RL = 600 Ω
Figure 27. 1-kHz Output Spectrum
OPA1692 D036_SBOS566.gif
100-pF capacitive load 10-mV input step G = 1
Figure 29. Small-Signal Step Response
OPA1692 D034_SBOS566.gif
100-pF capacitive load 10-V input step G = 1
Figure 31. Large-Signal Step Response
OPA1692 D040_SBOS566.gif
Figure 33. Settling Time
OPA1692 D015_SBOS566.gif
5 typical units

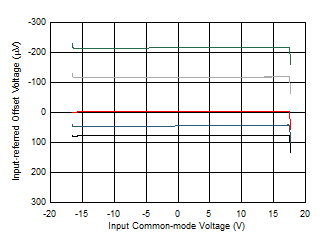

Figure 35. Input Offset Voltage vs Common-Mode Voltage

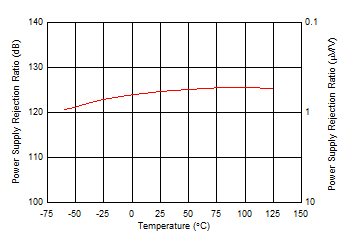

OPA1692 D012_SBOS566.gif
Figure 37. PSRR vs Temperature
OPA1692 D016_SBOS566.gif

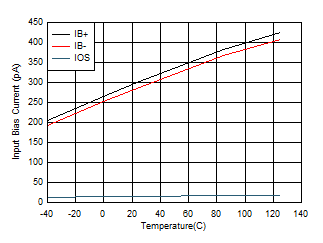

Figure 39. Input Bias and Offset Current vs Temperature

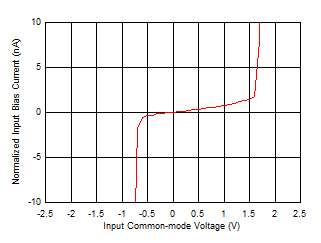

OPA1692 D006_SBOS566.gif
VS = ±1.75 V
Figure 41. IB vs Common-Mode Voltage
OPA1692 D008_SBOS566.gif

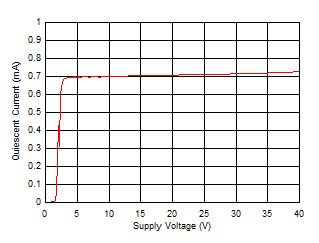

Figure 43. Supply Current vs Supply Voltage
OPA1692 D003_SBOS566.gif
VS = ±1.75 V
Figure 45. Open-Loop Gain vs Output Voltage
OPA1692 D011_SBOS566.gif
Sinking
Figure 47. Output Voltage vs Output Current
OPA1692 D033_SBOS566.gif
Figure 49. Negative Overload Recovery
OPA1692 D031_SBOS566.gif
Figure 51. No Phase Reversal
OPA1692 D205_SBOS566.gif
N = 580 Mean = 17 µV Std. Dev. = 145.2 µV

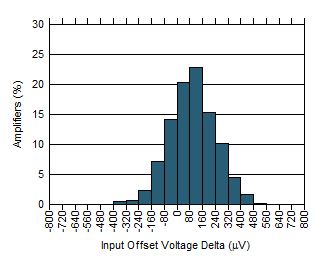

Figure 2. Input Offset Voltage Matching (Ch. A – Ch. B)

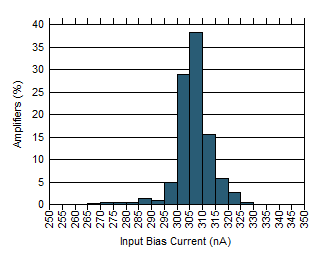

OPA1692 D206_SBOS566.gif
N = 1160 Mean = 301.5 nA Std. Dev. = 7.03 nA
Figure 4. Input Bias Current Distribution

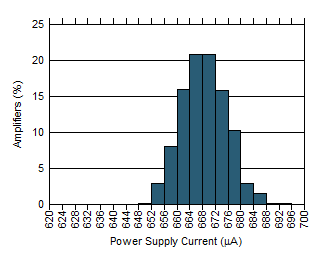

OPA1692 D208_SBOS566.gif
N = 1160 Mean = 664.6 µA Std. Dev. = 6.98 µA
Figure 6. Power Supply Current Distribution
OPA1692 D018_SBOS566.gif

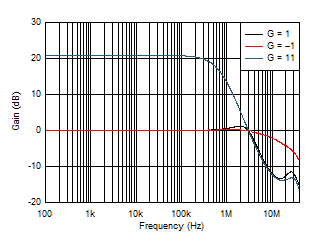

Figure 8. Closed-Loop Gain vs Frequency

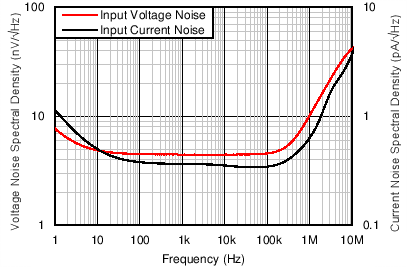

OPA1692 C006_SBOS566.png
Figure 10. Input Voltage Noise Spectral Density
OPA1692 D041_SBOS566.gif
Figure 12. 0.1-Hz to 10-Hz Voltage Noise
OPA1692 C005_SBOS566.png

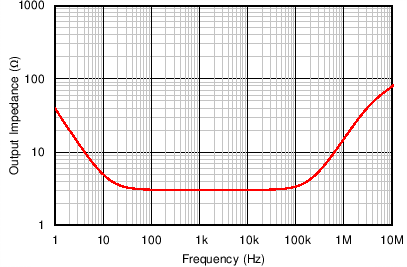

Figure 14. Open-Loop Output Impedance vs Frequency
OPA1692 D038_SBOS566.gif
G = 1 10-mV input step

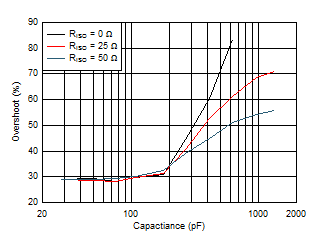

Figure 16. Overshoot vs Capacitive Load
OPA1692 D026_SBOS566.gif
VOUT = 3 VRMS 80-kHz bandwidth
Figure 18. THD + N Ratio vs Frequency

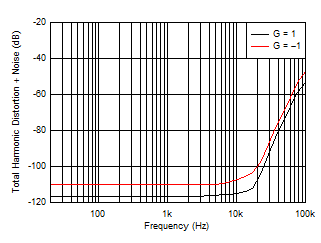

OPA1692 D027_SBOS566.gif
VOUT = 3 VRMS 500-kHz bandwidth
Figure 20. THD + N Ratio vs Frequency

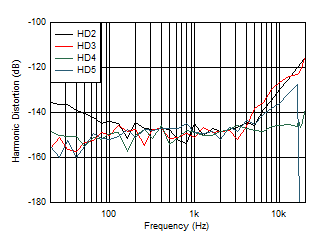

OPA1692 D020_SBOS566.gif
VOUT = 3 VRMS G = –1 80-kHz bandwidth
Figure 22. Distortion Harmonics vs Frequency
OPA1692 D025_SBOS566.gif
f = 1 kHz RL = 600 Ω 80-kHz bandwidth
Figure 24. THD + N Ratio vs Output Amplitude
OPA1692 D029_SBOS566.gif
Figure 26. Channel Separation vs Frequency
OPA1692 D203_SBOS901.gif
f = 20 kHz VO = 3 VRMS RL = 600 Ω
Figure 28. 20-kHz Output Spectrum
OPA1692 D037_SBOS566.gif
100-pF capacitive load 10-mV input step G = –1
Figure 30. Small-Signal Step Response
OPA1692 D035_SBOS566.gif
100-pF capacitive load 10-V input step G = –1
Figure 32. Large-Signal Step Response
OPA1692 D014_SBOS566.gif
5 typical units
Figure 34. Input Offset Voltage vs Temperature
OPA1692 D004_SBOS566.gif

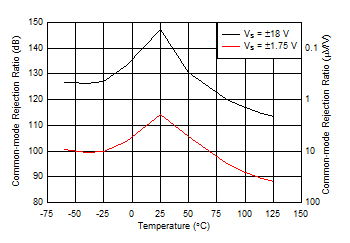

Figure 36. CMRR vs Temperature
OPA1692 D001_SBOS566.gif
Figure 38. Open-Loop Gain vs Temperature

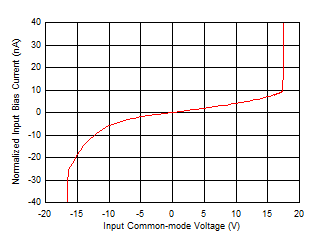

OPA1692 D005_SBOS566.gif
Figure 40. IB vs Common-Mode Voltage
OPA1692 D007_SBOS566.gif

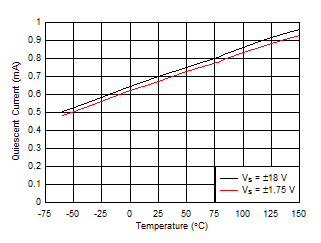

Figure 42. Supply Current vs Temperature

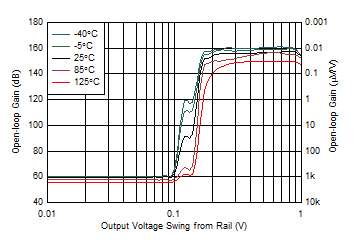

OPA1692 D002_SBOS566.gif
Figure 44. Open-Loop Gain vs Output Voltage

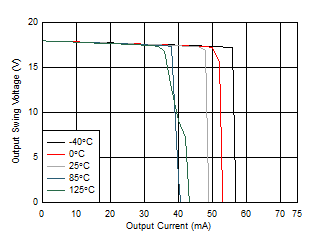

OPA1692 D010_SBOS566.gif
Sourcing
Figure 46. Output Voltage vs Output Current

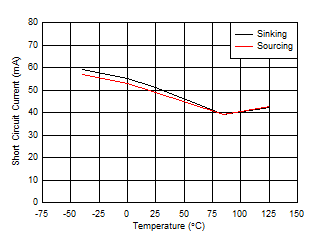

OPA1692 D009_SBOS566.gif
Figure 48. Short-Circuit Current vs Temperature
OPA1692 D032_SBOS566.gif
Figure 50. Positive Overload Recovery
OPA1692 D030_SBOS566.gif

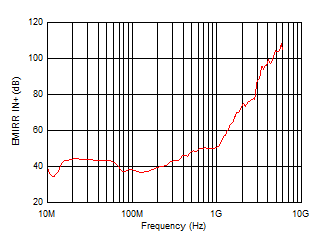

Figure 52. EMI Rejection Ratio (EMIRR)
