1 Features

  • Up to 11.3-Gbps Operation
  • 2-Wire Digital Interface
  • Digitally Selectable Input Bandwidth
  • Adjustable LOS Threshold
  • Digitally Selectable Output Voltage
  • Digitally Selectable Output Preemphasis
  • Adjustable Input Threshold Voltage
  • Low Power Consumption
  • Input Offset Cancellation
  • CML Data Outputs With On-Chip 50-Ω Back-Termination to VCC
  • Single 3.3-V Supply
  • Output Disable
  • Surface Mount Small Footprint 3-mm × 3-mm, 16Pin, RoHS compliant VQFN Package

2 Applications

  • 10-Gigabit Ethernet Optical Receivers
  • 2x, 4x, 8x, and 10x Fiber Channel Optical Receivers
  • SONET OC-192/SDH-64 Optical Receivers
  • SFP+ and XFP Transceiver Modules
  • XENPAK, XPAK, X2, and 300-Pin MSA Transponder Modules
  • Cable Drivers and Receivers

3 Description

The ONET8501PB device is a high-speed, 3.3-V limiting amplifier for multiple fiber optic and copper cable applications with data rates from 2 Gbps up to 11.3 Gbps.

The device provides a two-wire serial interface which allows digital control of the bandwidth, output amplitude, output preemphasis, input threshold voltage (slice level), and the loss of signal assert level. Predetermined settings for bandwidth and LOS assert levels can also be selected with external rate selection pins.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
ONET8501PB VQFN (16) 3.00 mm × 3.00 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

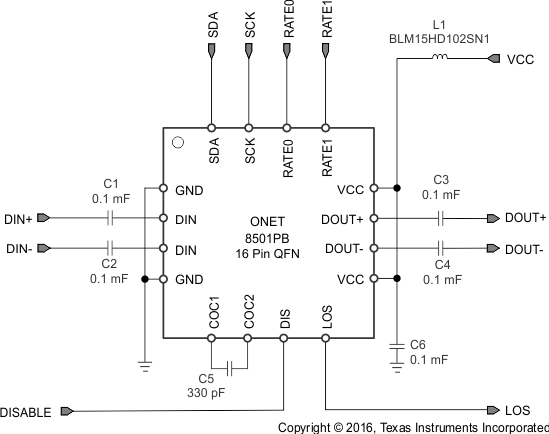

Typical Application Circuit

ONET8501PB typ_app_lls910.gif
