10 Layout

10.1 Layout Guidelines

For optimum performance, use 50-Ω transmission lines (100-Ω differential) for connecting the high speed inputs and outputs. The length of transmission lines should be kept as short as possible to reduce loss and pattern-dependent jitter.

If the single-ended mode of operation is being used (TXMODE = 1) then it is recommended to terminate the unused output with a 50-Ω resistor to VCC. Figure 54 shows a typical layout for the high speed inputs and outputs.

10.2 Layout Example

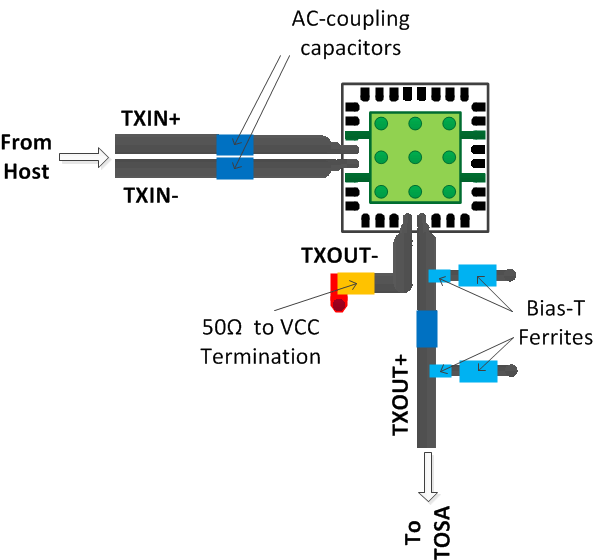

ONET1131EC Layout_SLLSEQ6.gif Figure 54. Board Layout
