8.6 Transition Time

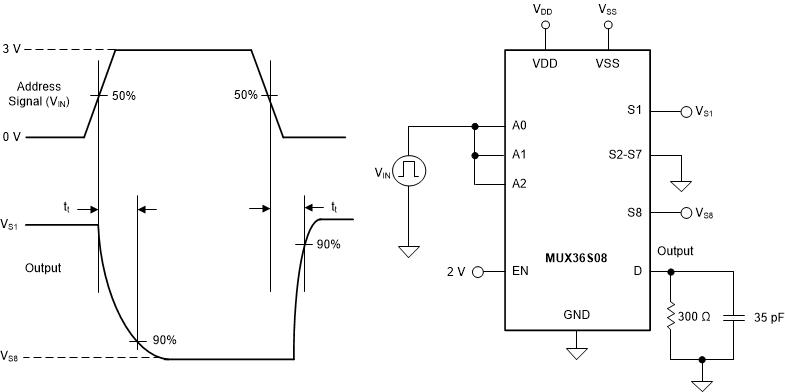

Transition time is defined as the time taken by the output of the MUX36xxx to rise or fall to 90% of the transition after the digital address signal has fallen or risen to 50% of the transition. Figure 30 shows the setup used to measure transition time, denoted by the symbol tt.

MUX36S08 MUX36D04 trans_time_meas_setup_sbos705.gifFigure 30. Transition-Time Measurement Setup
