Typical Characteristics

at TA = 25°C, VDD = 15 V, and VSS = –15 V (unless otherwise noted)
MUX36S16 MUX36D08 D001_SLASED9.gif
Figure 1. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D003_SLASED9.gif

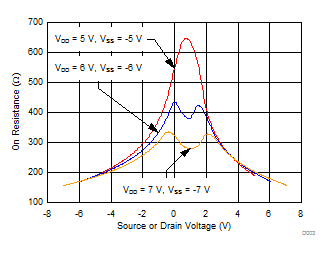

Figure 3. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D024_SLASED9.gif

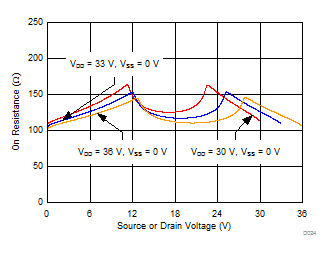

Figure 5. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D025_SLASED9.gif
VDD = 24 V, VSS = 0 V
Figure 7. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D006_SLASED9.gif
VDD = 15 V, VSS = –15 V
Figure 9. Leakage Current vs Temperature
MUX36S16 MUX36D08 D011_SLASED9.gif
MUX36S16, source-to-drain
Figure 11. Charge Injection vs Source Voltage
MUX36S16 MUX36D08 D008_SLASED9.gif
Drain-to-source
Figure 13. Charge Injection vs Drain Voltage
MUX36S16 MUX36D08 D012_SLASED9.gif

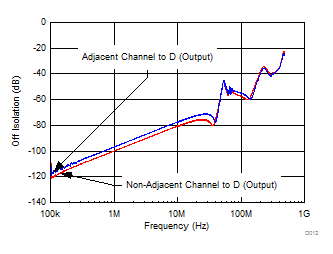

Figure 15. Off Isolation vs Frequency
MUX36S16 MUX36D08 D014_SLASED9.gif

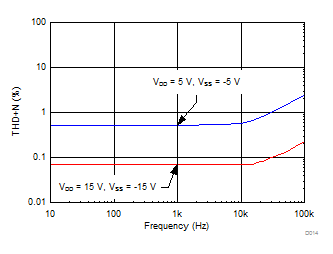

Figure 17. THD+N vs Frequency
MUX36S16 MUX36D08 D015_SLASED9.gif
MUX36S16, VDD = 15 V, VSS = –15 V

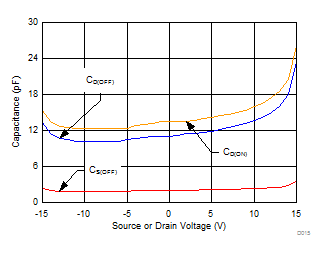

Figure 19. Capacitance vs Source Voltage
MUX36S16 MUX36D08 D017_SLASED9.gif
MUX36S16, VDD = 30 V, VSS = 0 V
Figure 21. Capacitance vs Source Voltage

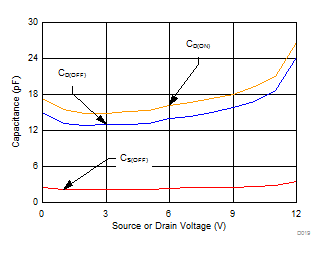

MUX36S16 MUX36D08 D019_SLASED9.gif
MUX36S16, VDD = 12 V, VSS = 0 V
Figure 23. Capacitance vs Source Voltage
MUX36S16 MUX36D08 D028_SLASED9.gif

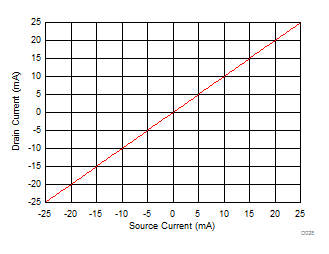

Figure 25. Source Current vs Drain Current
MUX36S16 MUX36D08 D002_SLASED9.gif
VDD = 15 V, VSS = –15 V

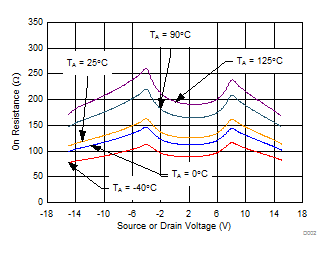

Figure 2. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D004_SLASED9.gif
VDD = 12 V, VSS = 0 V
Figure 4. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D005_SLASED9.gif

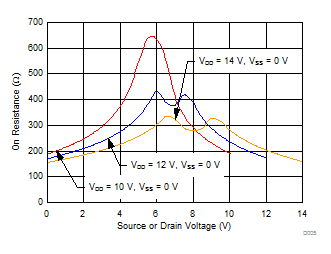

Figure 6. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D026_SLASED9.gif
VDD = 12 V, VSS = –12 V

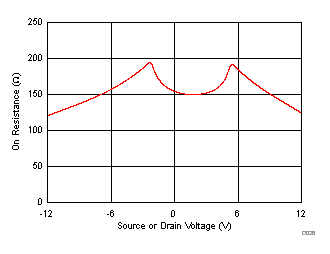

Figure 8. On-Resistance vs Source or Drain Voltage
MUX36S16 MUX36D08 D007_SLASED9.gif
Þ
VDD = 12 V, VSS = 0 V

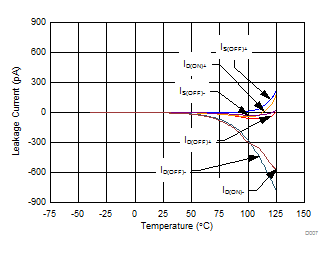

Figure 10. Leakage Current vs Temperature
MUX36S16 MUX36D08 D027_SLASED9.gif
MUX36D08, source-to-drain

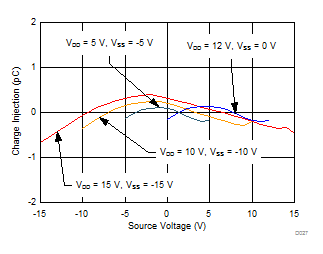

Figure 12. Charge Injection vs Source Voltage
MUX36S16 MUX36D08 D010_SLASED9.gif

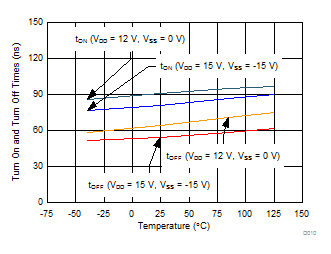

Figure 14. Turn-On and Turn-Off Times vs Temperature
MUX36S16 MUX36D08 D013_SLASED9.gif

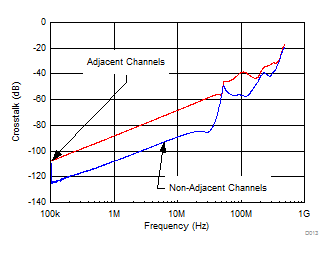

Figure 16. Crosstalk vs Frequency
MUX36S16 MUX36D08 D021_SLASED9.gif

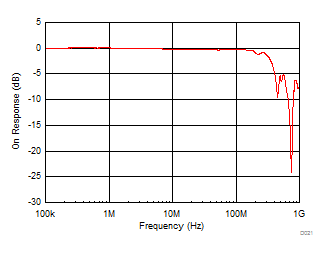

Figure 18. On Response vs Frequency
MUX36S16 MUX36D08 D016_SLASED9.gif
MUX36D08, VDD = 15 V, VSS = –15 V

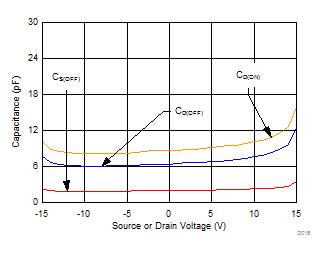

Figure 20. Capacitance vs Source Voltage

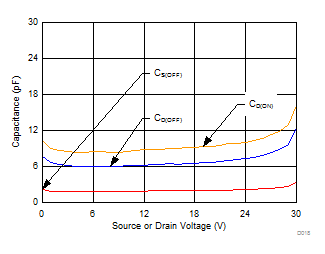

MUX36S16 MUX36D08 D018_SLASED9.gif
MUX36D08, VDD = 30 V, VSS = 0 V
Figure 22. Capacitance vs Source Voltage

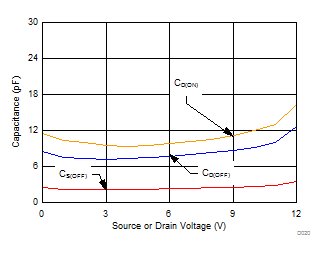

MUX36S16 MUX36D08 D020_SLASED9.gif
MUX36D08, VDD = 12 V, VSS = 0 V
Figure 24. Capacitance vs Source Voltage
