5.9 Typical Characteristics, Low-Power Mode Supply Currents

MSP430FR5869 MSP430FR5868 MSP430FR5867 MSP430FR58671 MSP430FR5859 MSP430FR5858 MSP430FR5857 MSP430FR5849 MSP430FR5848 MSP430FR5847 MSP430FR58471 C001_lpm3_slas704.gifFigure 5-2 LPM3,XT3.7 Supply Current vs Temperature

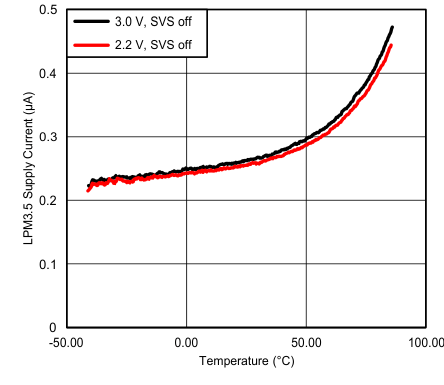

MSP430FR5869 MSP430FR5868 MSP430FR5867 MSP430FR58671 MSP430FR5859 MSP430FR5858 MSP430FR5857 MSP430FR5849 MSP430FR5848 MSP430FR5847 MSP430FR58471 C003_lpm35_slas704.gifFigure 5-4 LPM3.5,XT3.7 Supply Current vs Temperature
MSP430FR5869 MSP430FR5868 MSP430FR5867 MSP430FR58671 MSP430FR5859 MSP430FR5858 MSP430FR5857 MSP430FR5849 MSP430FR5848 MSP430FR5847 MSP430FR58471 C002_lpm4_slas704.gifFigure 5-3 LPM4,SVS Supply Current vs Temperature
MSP430FR5869 MSP430FR5868 MSP430FR5867 MSP430FR58671 MSP430FR5859 MSP430FR5858 MSP430FR5857 MSP430FR5849 MSP430FR5848 MSP430FR5847 MSP430FR58471 C004_lpm45_slas704.gifFigure 5-5 LPM4.5 Supply Current vs Temperature
