5.34 REF, Temperature Sensor and Built-In VMID

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETERTEST CONDITIONSVCCMINTYPMAXUNIT
VSENSOR See (1) ADC10ON = 1, INCH = 0Ah,
TA = 0°C		 2 V, 3 V 790 mV
TCSENSOR ADC10ON = 1, INCH = 0Ah 2 V, 3 V 2.55 mV/°C
tSENSOR(sample) Sample time required if channel 10 is selected (2) ADC10ON = 1, INCH = 0Ah,
Error of conversion result ≤ 1 LSB		 2 V 30 µs
3 V 30
VMID AVCC divider at channel 11 ADC10ON = 1, INCH = 0Bh,
VMID is ~0.5 × VAVCC		 2 V 0.97 1.0 1.03 V
3 V 1.46 1.5 1.54
tVMID(sample) Sample time required if channel 11 is selected (3) ADC10ON = 1, INCH = 0Bh,
Error of conversion result ≤ 1 LSB		 2 V, 3 V 1000 ns
(1) The temperature sensor offset can vary significantly. A single-point calibration is recommended to minimize the offset error of the built-in temperature sensor.
(2) The typical equivalent impedance of the sensor is 51 kΩ. The sample time required includes the sensor-on time tSENSOR(on).
(3) The on-time tVMID(on) is included in the sampling time tVMID(sample); no additional on time is needed.

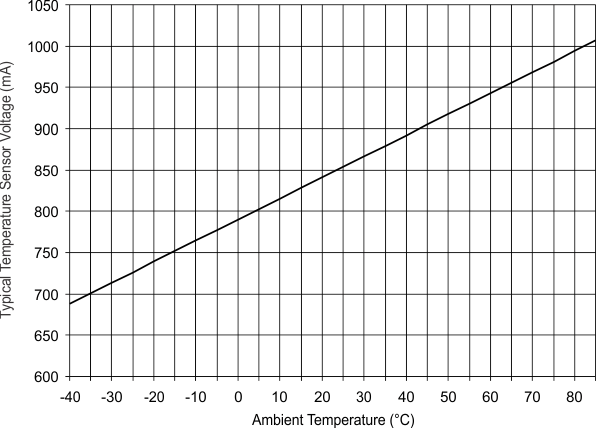

MSP430FR5729 MSP430FR5728 MSP430FR5727 MSP430FR5726 MSP430FR5725 MSP430FR5724 MSP430FR5723 MSP430FR5722 MSP430FR5721 MSP430FR5720 slas639-018.gifFigure 5-11 Typical Temperature Sensor Voltage
