5.41 eUSCI (I2C Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-15)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
feUSCI eUSCI input clock frequency Internal: SMCLK or ACLK,
External: UCLK,
Duty cycle = 50% ±10%		 fSYSTEM MHz
fSCL SCL clock frequency 2 V, 3 V 0 400 kHz
tHD,STA Hold time (repeated) START fSCL = 100 kHz 2 V, 3 V 5.1 µs
fSCL > 100 kHz 1.5
tSU,STA Setup time for a repeated START fSCL = 100 kHz 2 V, 3 V 5.1 µs
fSCL > 100 kHz 1.4
tHD,DAT Data hold time 2 V, 3 V 0.4 µs
tSU,DAT Data setup time fSCL = 100 kHz 2 V, 3 V 5.0 µs
fSCL > 100 kHz 1.3
tSU,STO Setup time for STOP fSCL = 100 kHz 2 V, 3 V 5.2 µs
fSCL > 100 kHz 1.7
tSP Pulse duration of spikes suppressed by input filter UCGLITx = 0 2 V, 3 V 75 220 ns
UCGLITx = 1 35 120
UCGLITx = 2 30 60
UCGLITx = 3 20 35
tTIMEOUT Clock low time-out UCCLTOx = 1 2 V, 3 V 30 ms
UCCLTOx = 2 33
UCCLTOx = 3 37

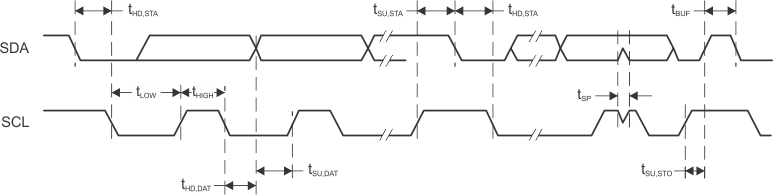

MSP430F67791 MSP430F67781 MSP430F67771 MSP430F67761 MSP430F67751 MSP430F67691 MSP430F67681 MSP430F67671 MSP430F67661 MSP430F67651 MSP430F67491 MSP430F67481 MSP430F67471 MSP430F67461 MSP430F67451 slas639-017.gifFigure 5-15 I2C Mode Timing
