Port P4 (P4.0 to P4.7), Port P5 (P5.0 to P5.7), Port P6 (P6.0 to P6.7) Input/Output With Schmitt Trigger (MSP430F67xxIPN Only)

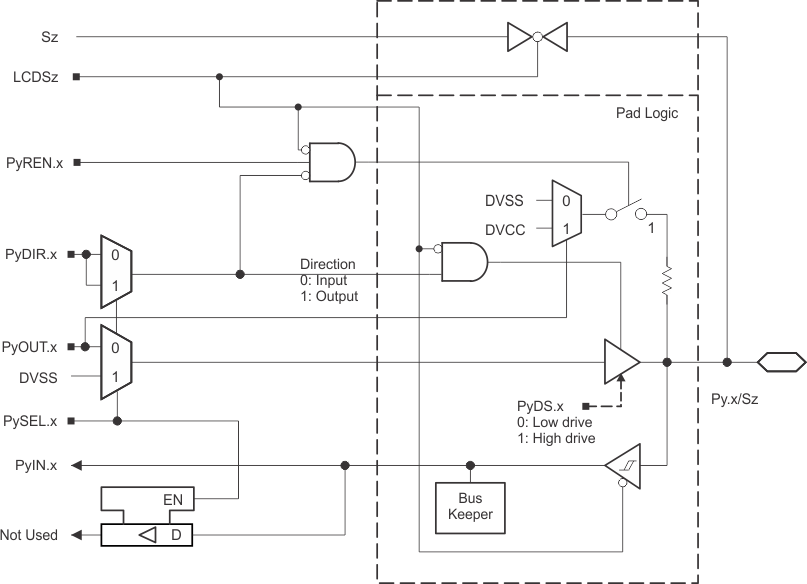

Figure 6-16 shows the port diagram. Table 6-77 through Table 6-79 summarize the selection of the pin functions.

MSP430F6736 MSP430F6735 MSP430F6734 MSP430F6733 MSP430F6731 MSP430F6730 MSP430F6726 MSP430F6725 MSP430F6724 MSP430F6723 MSP430F6721 MSP430F6720 p4_p5_p6_pn_slas731.gifFigure 6-16 Port P4 (P4.0 to P4.7), Port P5 (P5.0 to P5.7), Port P6 (P6.0 to P6.7) Diagram (MSP430F67xxIPN Only)

Table 6-77 Port P4 (P4.0 to P4.7) Pin Functions (MSP430F67xxIPN Only)

PIN NAME (P4.x) x FUNCTION CONTROL BITS OR SIGNALS(2)
P4DIR.x P4SEL.x LCDS23... LCDS16
P4.0/S23 0 P4.0 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S23 X X 1
P4.1/S22 1 P4.1 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S22 X X 1
P4.2/S21 2 P4.2 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S21 X X 1
P4.3/S20 3 P4.3 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S20 X X 1
P4.4/S19 4 P4.4 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S19 X X 1
P4.5/S18 5 P4.5 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S18 X X 1
P4.6/S17 6 P4.6 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S17 X X 1
P4.7/S16 7 P4.7 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S16 X X 1

Table 6-78 Port P5 (P5.0 to P5.7) Pin Functions (MSP430F67xxIPN Only)

PIN NAME (P5.x) x FUNCTION CONTROL BITS OR SIGNALS(2)
P5DIR.x P5SEL.x LCDS15... LCDS8
P5.0/S15 0 P5.0 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S15 X X 1
P5.1/S14 1 P5.1 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S14 X X 1
P5.2/S13 2 P5.2 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S13 X X 1
P5.3/S12 3 P5.3 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S12 X X 1
P5.4/S11 4 P5.4 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S11 X X 1
P5.5/S10 5 P5.5 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S10 X X 1
P5.6/S9 6 P5.6 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S9 X X 1
P5.7/S8 7 P5.7 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S8 X X 1

Table 6-79 Port P6 (P6.0 to P6.7) Pin Functions (MSP430F67xxIPN Only)

PIN NAME (P6.x) x FUNCTION CONTROL BITS OR SIGNALS(2)
P6DIR.x P6SEL.x LCDS7... LCDS0
P6.0/S7 0 P6.0 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S7 X X 1
P6.1/S6 1 P6.1 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S6 X X 1
P6.2/S5 2 P6.2 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S5 X X 1
P6.3/S4 3 P6.3 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S4 X X 1
P6.4/S3 4 P6.4 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S3 X X 1
P6.5/S2 5 P6.5 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S2 X X 1
P6.6/S1 6 P6.6 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S1 X X 1
P6.7/S0 7 P6.7 (I/O) I: 0; O: 1 0 0
N/A 0 1 0
DVSS 1 1 0
S0 X X 1
