Sequencing (SS/TR)

Many of the common power supply sequencing methods can be implemented using the SS/TR, INH and PWRGD pins. The sequential method is illustrated in Figure 35 using two LMZ31707 devices. The PWRGD pin of the first device is coupled to the INH pin of the second device which enables the second power supply once the primary supply reaches regulation. Figure 36 shows sequential turnon waveforms of two LMZ31707 devices.

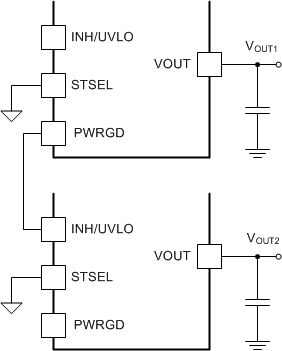

LMZ31707 slvsAW7_SequentialSeq.gifFigure 35. Sequencing Schematic

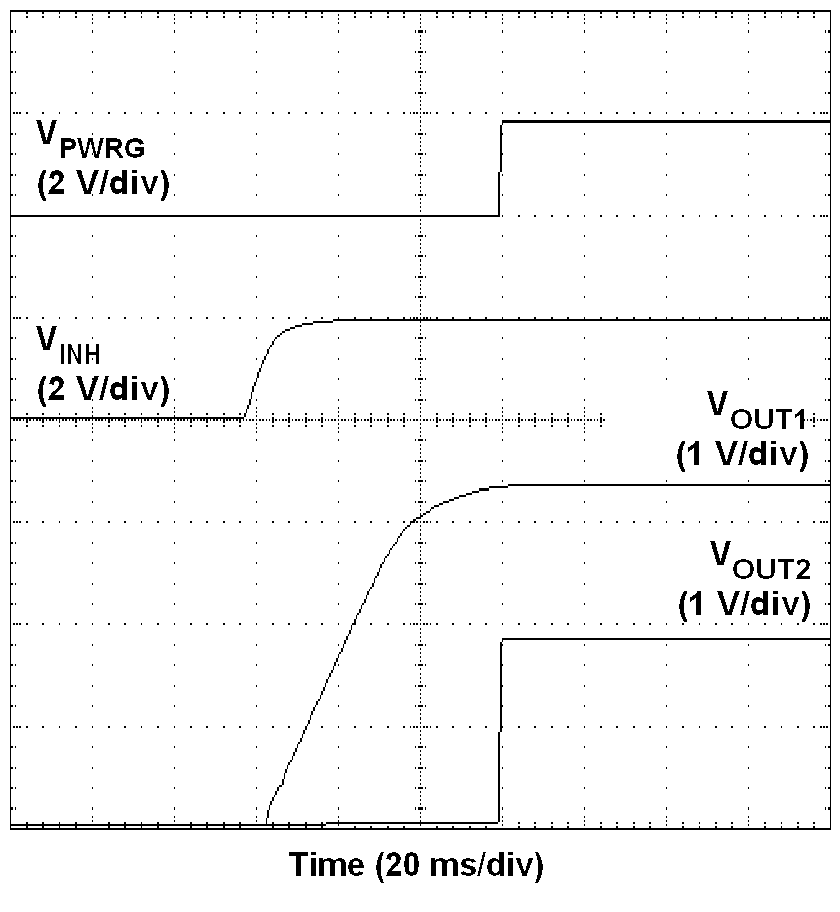

LMZ31707 waveformo_lvsa43.pngFigure 36. Sequencing Waveforms

Simultaneous power supply sequencing can be implemented by connecting the resistor network of R1 and R2 shown in Figure 37 to the output of the power supply that needs to be tracked or to another voltage reference source. The tracking voltage must exceed 750 mV before VOUT2 reaches its set-point voltage. The PWRGD output of the VOUT2 device can remain low if the tracking voltage does not exceed 1.4 V.Figure 38 shows simultaneous turnon waveforms of two LMZ31707 devices. Use and to calculate the values of R1 and R2.

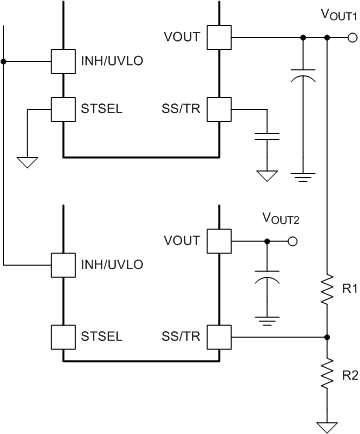

LMZ31707 slvsAW7_SimultSeq.gifFigure 37. Simultaneous Tracking Schematic

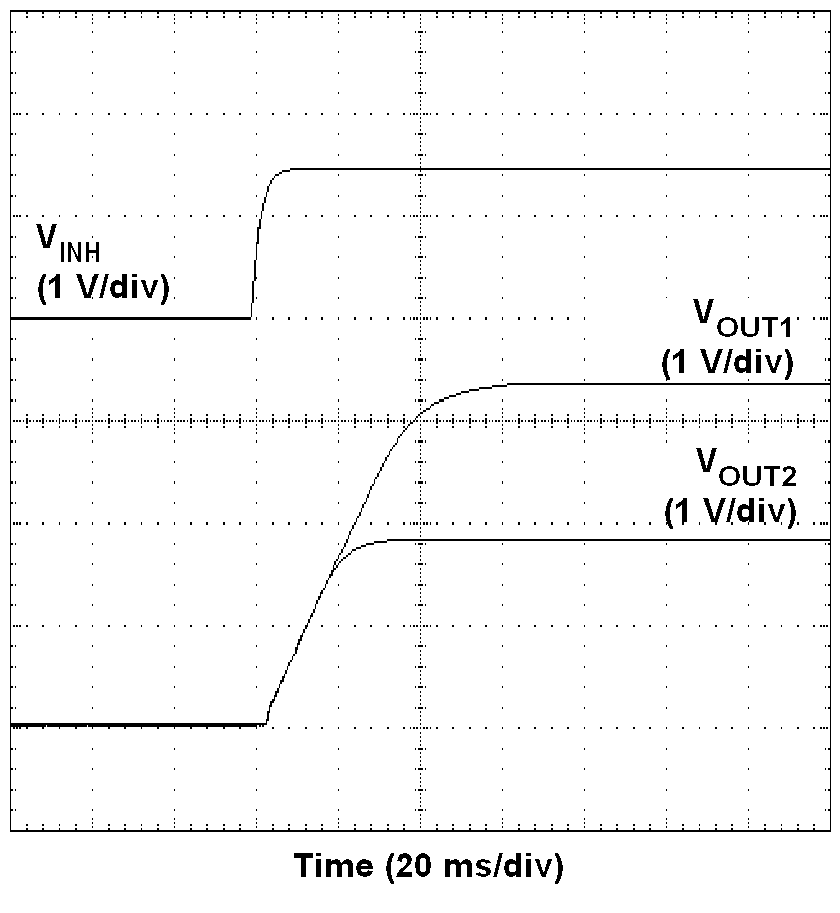

LMZ31707 waveformp_lvsa43.pngFigure 38. Simultaneous Tracking Waveforms
