8.3.2 Application Schematic for 3.3-V to 5-V Input and 2.5-V Output

The compensation for each solution was optimized to work over the full input range. Many applications have a fixed input voltage rail. It is possible to modify the compensation to obtain a faster transient response for a given input voltage operating point.

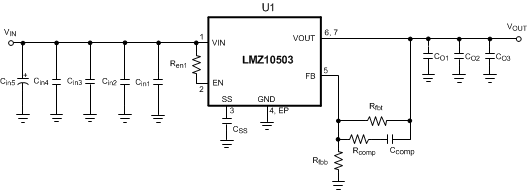

LMZ10503 30111880.gifFigure 27. Schematic for 2.5-V Output Based on 3.3-V to 5-V Input

Table 7. Bill of Materials for Evaluation Board, VIN = 3.3 V to 5 V, VOUT = 2.5 V, IOUT (MAX) = 3 A

DESIGNATOR DESCRIPTION CASE SIZE MANUFACTURER MANUFACTURER P/N QUANTITY
U1 Power Module PFM-7 Texas Instruments LMZ10503 1
Cin1 1 µF, X7R, 16 V 0805 TDK C2012X7R1C105K 1
Cin2, CO1 4.7 µF, X5R, 6.3 V 0805 TDK C2012X5R0J475K 2
Cin3, CO2 22 µF, X5R, 16 V 1210 TDK C3225X5R1C226M 2
Cin4 47 µF, X5R, 6.3 V 1210 TDK C3225X5R0J476M 1
Cin5 220 µF, 10 V, AL-Elec E Panasonic EEE1AA221AP 1
CO3 100 µF, X5R, 6.3 V 1812 TDK C4532X5R0J107M 1
Rfbt 75 kΩ 0805 Vishay Dale CRCW080575K0FKEA 1
Rfbb 34.8 kΩ 0805 Vishay Dale CRCW080534K8FKEA 1
Rcomp 1.1 kΩ 0805 Vishay Dale CRCW08051K10FKEA 1
Ccomp 180 pF, ±5%, C0G, 50 V 0603 TDK C1608C0G1H181J 1
Ren1 100 kΩ 0805 Vishay Dale CRCW0805100KFKEA 1
CSS 10 nF, ±5%, C0G, 50 V 0805 TDK C2012C0G1H103J 1

Table 8. Output Voltage Setting (Rfbt = 75 kΩ)

VOUT Rfbb
3.3V 23.7 kΩ
2.5 V 34.8 kΩ
1.8 V 59 kΩ
1.5 V 84.5 kΩ
1.2 V 150 kΩ
0.9 V 590 kΩ
