7.8 Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 400 kHz, L = 8.2 µH, COUT = 150 µF, TA = 25°C.

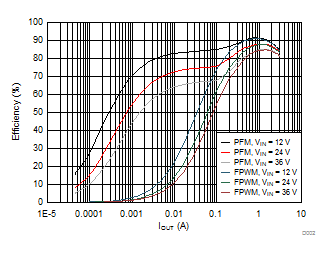

fSW = 400 kHz VOUT = 5 V
Figure 7-1 Efficiency vs Load Current
fSW = 200 kHz (Sync) VOUT = 5 V
Figure 7-3 Efficiency vs Load Current
PFM version VOUT = 5 V
Figure 7-5 Load Regulation

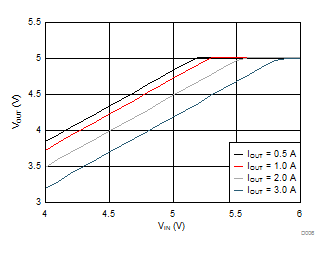

VOUT = 5 V
Figure 7-7 Dropout Curve
VIN = 12 V VFB = 1.1 V
Figure 7-9 IQ vs Junction Temperature

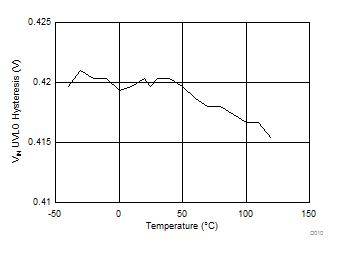

Figure 7-11 VIN UVLO Hysteresis vs Junction Temperature

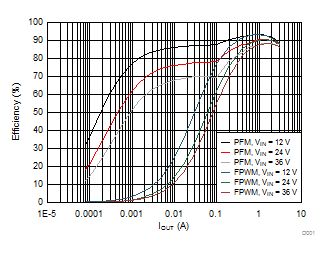

fSW = 400 kHz VOUT = 3.3 V
Figure 7-2 Efficiency vs Load Current
fSW = 200 kHz (Sync) VOUT = 3.3 V
Figure 7-4 Efficiency vs Load Current
FPWM Version VOUT = 5 V
Figure 7-6 Load Regulation

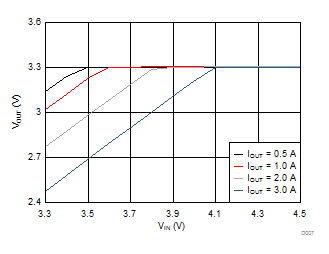

VOUT = 3.3 V
Figure 7-8 Dropout Curve

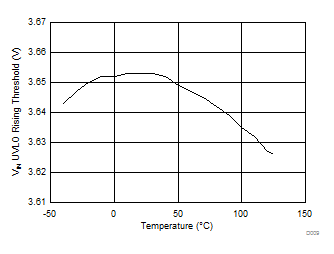

Figure 7-10 VIN UVLO Rising Threshold vs Junction Temperature
VIN = 12 V
Figure 7-12 HS and LS Current Limit vs Junction Temperature
