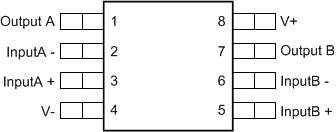

6 Pin Configuration and Functions

D Package
8 Pin SOIC
Top View
LME49720 pinput_SOIC.gif
P Packages
8 Pin PDIP
Top View
LME49720 pinput_PDIP.gif
LMC Package
8 Lead TO-99
LME49720 300038f3.gif

Pin Functions

PIN I/O DESCRIPTION
NAME SOIC PDIP TO-99
V+ 8 8 8 - Positive supply voltage
V- 4 4 4 - Negative supply voltage
InputA- 2 2 2 I Negative audio input
InputA+ 3 3 3 I Positive audio input
Output A 1 1 1 O Audio output A
InputB– 6 6 6 I Negative audio input
InputB+ 5 5 5 I Positive audio input
Output B 7 7 7 O Audio output B
