SNAS393D March 2007 – November 2016 LME49720
PRODUCTION DATA.

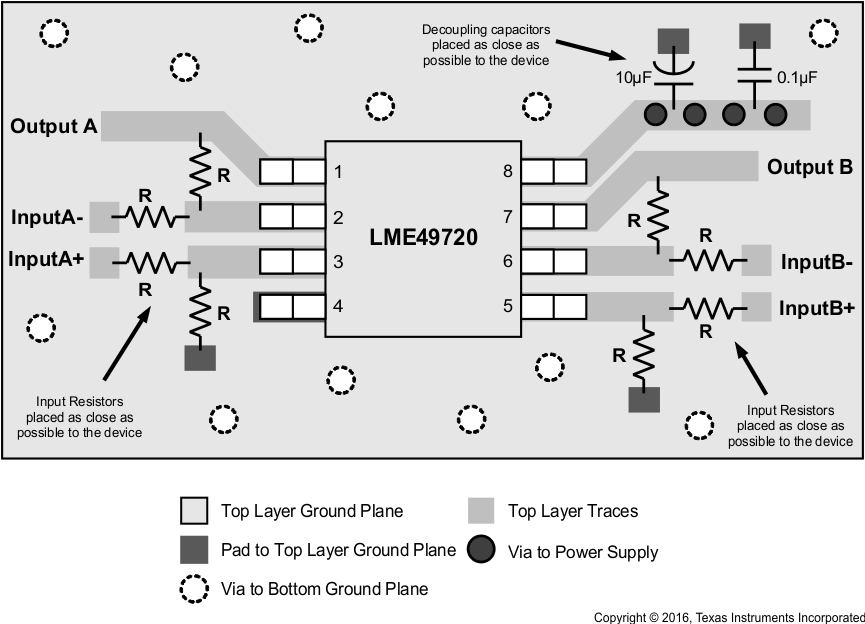

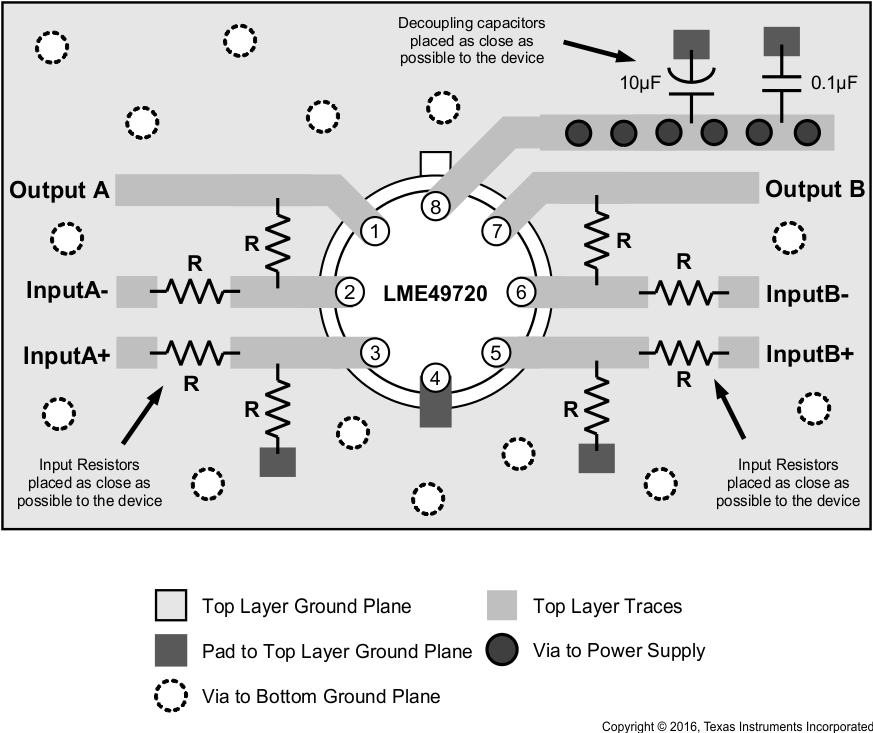

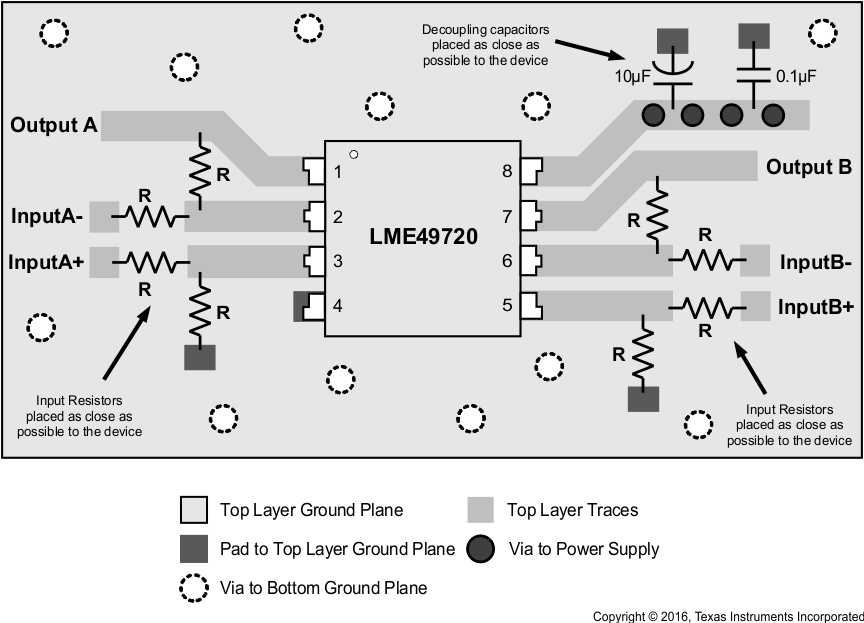

Place all the external components close to the device. Placing the decoupling capacitors as close as possible to the device is important for low total harmonic distortion (THD). Any resistance or inductance in the trace between the device and the capacitor can cause a loss in efficiency.
