6.8 Typical Characteristics

Unless otherwise specified, VIN = 12 V, VOUT = 3.3 V, FS = 500 kHz, L = 22 µH, COUT = 100 µF, CFF = 33 pF. See Application Performance Curves for bill of materials (BOM) for other VOUT and FS combinations.
LM43600-Q1 C002_Eff_43600_3p3V500k.png
VOUT = 3.3 V FS = 500 kHz
Figure 1. Efficiency
LM43600-Q1 C003_Eff_43600_5V500k.png
VOUT = 5 V FS = 500 kHz
Figure 3. Efficiency
LM43600-Q1 C007_Eff_43600_12V500k.png
VOUT = 12 V FS = 500 kHz
Figure 5. Efficiency
LM43600-Q1 C012_Reg_43600_3p3V500k.png
VOUT = 3.3 V FS = 500 kHz
Figure 7. VOUT Regulation
LM43600-Q1 C013_Reg_43600_5V500k.png
VOUT = 5 V FS = 500 kHz
Figure 9. VOUT Regulation
LM43600-Q1 C017_Reg_43600_12V500k.png
VOUT = 12 V FS = 500 kHz
Figure 11. VOUT Regulation
LM43600-Q1 C022_DO_43600_3p3V500k.png
VOUT = 3.3 V FS = 500 kHz
Figure 13. Dropout Curve
LM43600-Q1 C023_DO_43600_5V500k.png
VOUT = 5 V FS = 500 kHz
Figure 15. Dropout Curve
LM43600-Q1 C027_DO_43600_12V500k.png
VOUT = 12 V FS = 500 kHz
Figure 17. Dropout Curve
LM43600-Q1 43600_3V3_500kHz_Freq_Drop.png
VOUT = 3.3 V FS = 500 kHz
Figure 19. Switching Frequency vs VIN in Dropout Operation
LM43600-Q1 lm43600-3p3-500k_radiated.gif
VOUT = 3.3 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM43600QPWPEVM with default BOM. No input filter used.
Figure 21. Radiated EMI Curve
LM43600-Q1 lm43600_3p3_500k_Conducted.gif
VOUT = 3.3 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM43600QPWPEVM with default BOM. Input filter: Lin = 1 µH Cd = 47 µF CIN4 = 68 µF
Figure 23. Conducted EMI Curve
LM43600-Q1 Gen_Curve_On_Resistance.png
Figure 25. High-Side and Low-side On Resistance vs Junction Temperature

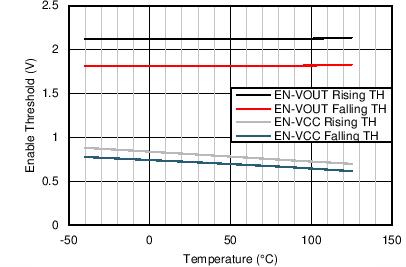

LM43600-Q1 Gen_Curve_EN_Threshold.png
Figure 27. Enable Threshold vs Junction Temperature
LM43600-Q1 Gen_Curve_PG_Threshold.png
Figure 29. PGOOD Threshold vs Junction Temperature
LM43600-Q1 Gen_Curve_46000Curr_Lim.png
VIN = 12 V VOUT = 3.3 V FS = 500 kHz
Figure 31. Peak and Valley Current Limits vs Temperature
LM43600-Q1 C004_Eff_43600_5V200k.png
VOUT = 5 V FS = 200 kHz
Figure 2. Efficiency
LM43600-Q1 C005_Eff_43600_5V1M.png
VOUT = 5 V FS = 1 MHz
Figure 4. Efficiency
LM43600-Q1 C008_Eff_43600_24V500k.png
VOUT = 24 V FS = 500 kHz
Figure 6. Efficiency
LM43600-Q1 C014_Reg_43600_5V200k.png
VOUT = 5 V FS = 200 kHz
Figure 8. VOUT Regulation
LM43600-Q1 C015_Reg_43600_5V1M.png
VOUT = 5 V FS = 1 MHz
Figure 10. VOUT Regulation
LM43600-Q1 C018_Reg_43600_24V500k.png
VOUT = 24 V FS = 500 kHz
Figure 12. VOUT Regulation
LM43600-Q1 C024_DO_43600_5V200k.png
VOUT = 5 V FS = 200 kHz
Figure 14. Dropout Curve
LM43600-Q1 C025_DO_43600_5V1M.png
VOUT = 5 V FS = 1 MHz
Figure 16. Dropout Curve
LM43600-Q1 C028_DO_43600_24V500k.png
VOUT = 24 V FS = 500 kHz
Figure 18. Dropout Curve
LM43600-Q1 43600_5V_1MHz_Freq_Drop.png
VOUT = 5 V FS = 1 MHz (TBD)
Figure 20. Switching Frequency vs VIN in Dropout Operation
LM43600-Q1 lm43600_5_500k_radiated.gif
VOUT = 5 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM43600QPWPEVM with L = 44 µH, COUT = 66 µF, CFF = 33 pF. No input filter used.
Figure 22. Radiated EMI Curve
LM43600-Q1 lm43600_5_500k_Conducted.gif
VOUT = 5 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM43600QPWPEVM with L = 44 µH, COUT = 66 µF, CFF = 33 pF. Input filter Lin = 1 µH Cd = 47 µF CIN4 = 68 µF
Figure 24. Conducted EMI Curve

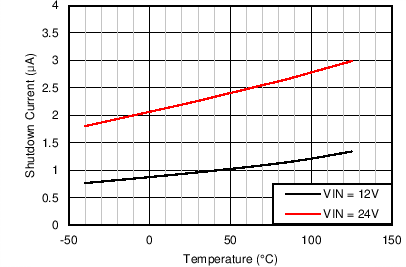

LM43600-Q1 Gen_Curve_Shdn_Current.png
Figure 26. Shutdown Current vs Junction Temperature
LM43600-Q1 Gen_Curve_EN_Leakage_Curr.png
Figure 28. Enable Leakage Current vs
Junction Temperature
LM43600-Q1 Gen_Curve_FB_Voltage.png
Figure 30. Feedback Voltage vs Junction Temperature
LM43600-Q1 Gen_Curve_43601Iq.png
i.
VOUT = 3.3 V FS = 500 kHz IOUT = 0 A
Figure 32. Operation IQ vs VIN with BIAS Connected to VOUT
