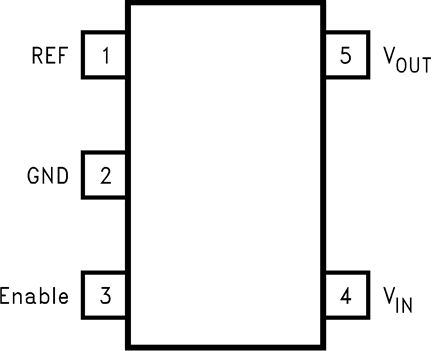

5 Pin Configuration and Functions

DBV Package
5-Pin SOT-23
Top View
LM4120 10104702.png

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
Enable 3 I Pulled to input for normal operation. Forcing this pin to ground will turn off the output.
GND 2 — Negative supply or ground connection
REF 1 — REF pin. This pin must be left unconnected.
VIN 4 I Positive supply
VOUT 5 O Reference output
