6.8 Typical Characteristics

TA = 25°C, VIN = 3.6 V, CIN = 10 µF, COUT = 10 µF, L = 1 µH, VLED = 3.4 V, Flash Time-out = 320 ms and Thermal Scale-Back (TSB) disabled, unless otherwise noted.
LM36010 D001_SNVSAN4.gif
ƒSW = 2 MHz ICL = 2.8 A
Figure 2. LED Flash Current vs Brightness Code
LM36010 D003_SNVSAN4.gif
ƒSW = 2 MHz ICL = 2.8 A
Figure 4. LED Flash Current vs Input Voltage
LM36010 D005_SNVSAN4.gif
ƒSW = 2 MHz IFLASH = 1.5 A
ICL = 1.9 A Flash Time-out < 120 ms at 85°C
Figure 6. LED Flash Current vs Input Voltage
LM36010 D007_SNVSAN4.gif
ƒSW = 2 MHz IFLASH = 1.2 A
ICL = 1.9 A Flash Time-out < 280 ms at 85°C
Figure 8. LED Flash Current vs Input Voltage
LM36010 D009_SNVSAN4.gif
ƒSW = 2 MHz IFLASH = 1.03 A ICL = 1.9 A
Figure 10. LED Flash Current vs Input Voltage
LM36010 D011_SNVSAN4.gif
ƒSW = 2 MHz IFLASH = 1.03 A ICL = 2.8 A
Figure 12. LED Flash Current vs Input Voltage
LM36010 D013_SNVSAN4.gif
ƒSW = 2 MHz IFLASH = 0.75 A ICL = 1.9 A
Figure 14. LED Flash Current vs Input Voltage
LM36010 D015_SNVSAN4.gif
ƒSW = 2 MHz IFLASH = 0.75 A ICL = 2.8 A
Figure 16. LED Flash Current vs Input Voltage
LM36010 D017_SNVSAN4.gif
ƒSW = 2 MHz
Figure 18. LED Torch Current vs Brightness Code
LM36010 D019_SNVSAN4.gif
ƒSW = 2 MHz
Figure 20. LED Torch Current vs Input Voltage

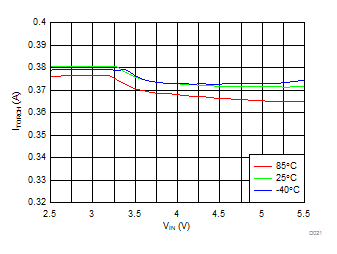

LM36010 D021_SNVSAN4.gif
ƒSW = 2 MHz ITORCH = 376 mA
Figure 22. LED Torch Current vs Input Voltage
LM36010 D023_SNVSAN4.gif
ƒSW = 2 MHz ITORCH = 258 mA
Figure 24. LED Torch Current vs Input Voltage
LM36010 D025_SNVSAN4.gif
Mode (Reg 0x01 bits[1:0]) = 01 (IR Mode)
Figure 26. LED Off Current vs Input Voltage
LM36010 D027_SNVSAN4.gif
Figure 28. Standby Current vs Input Voltage
LM36010 D002_SNVSAN4.gif
ƒSW = 4 MHz ICL = 2.8 A
Figure 3. LED Flash Current vs Brightness Code
LM36010 D004_SNVSAN4.gif
.
ƒSW = 2 MHz ICL = 2.8 A
Figure 5. LED Flash Current vs Input Voltage
LM36010 D006_SNVSAN4.gif
ƒSW = 4 MHz IFLASH = 1.5 A
ICL = 1.9 A Flash Time-out < 120 ms at 85°C
Figure 7. LED Flash Current vs Input Voltage
LM36010 D008_SNVSAN4.gif
ƒSW = 4 MHz IFLASH = 1.2 A
ICL = 1.9 A Flash Time-out < 280 ms at 85°C
Figure 9. LED Flash Current vs Input Voltage
LM36010 D010_SNVSAN4.gif
ƒSW = 4 MHz IFLASH = 1.03 A ICL = 1.9 A
Figure 11. LED Flash Current vs Input Voltage
LM36010 D012_SNVSAN4.gif
ƒSW = 4 MHz IFLASH = 1.03 A ICL = 2.8 A
Figure 13. LED Flash Current vs Input Voltage
LM36010 D014_SNVSAN4.gif
ƒSW = 4 MHz IFLASH = 0.75 A ICL = 1.9 A
Figure 15. LED Flash Current vs Input Voltage
LM36010 D016_SNVSAN4.gif
ƒSW = 4 MHz IFLASH = 0.75 A ICL = 2.8 A
Figure 17. LED Flash Current vs Input Voltage
LM36010 D018_SNVSAN4.gif
ƒSW = 4 MHz
Figure 19. LED Torch Current vs Brightness Code
LM36010 D020_SNVSAN4.gif
ƒSW = 2 MHz
Figure 21. LED Torch Current vs Input Voltage
LM36010 D022_SNVSAN4.gif
ƒSW = 4 MHz ITORCH = 376 mA
Figure 23. LED Torch Current vs Input Voltage
LM36010 D024_SNVSAN4.gif
ƒSW = 2 MHz ITORCH = 188 mA
Figure 25. LED Torch Current vs Input Voltage
LM36010 D026_SNVSAN4.gif
Mode (Reg 0x01 bits[1:0]) = 10 (Torch Mode)
Figure 27. LED On Current vs Input Voltage
