6 Specifications

6.1 Absolute Maximum Ratings(1)

Over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Input VIN, CSP, CSN –0.3 50 V
BST to SW, FB, MODE, UVLO, OPT, VCC(2) –0.3 15 V
SW –5.0 60 V
BST –0.3 75 V
SS, SLOPE, SYNCIN/RT –0.3 7 V
CSP to CSN, PGND –0.3 0.3 V
Output(3) HO to SW –0.3 BST to SW+0.3 V
LO –0.3 VCC+0.3 V
COMP, RES, SYNCOUT –0.3 7 V
Thermal Junction Temperature –40 150 ºC
Tstg Storage temperature –55 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions are not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Unless otherwise specified, all voltages are referenced to AGND pin.
(2) See Application Information when input supply voltage is less than the VCC voltage.
(3) All output pins are not specified to have an external voltage applied.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per AEC Q100-002(1) ±2000 V
Charged device model (CDM), per AEC Q100-011 Corner pins (1, 10, 11, and 20) ±1000
Other pins ±1000
(1) AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

6.3 Recommended Operating Conditions(1)

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Input supply voltage(2) VIN 4.5 42 V
Low-side driver bias voltage VCC 14 V
High-side driver bias voltage BST to SW 3.8 14 V
Current sense common mode range(2) CSP, CSN 3 42 V
Switch node voltage SW 50 V
Junction temperature TJ –40 125 ºC
(1) Recommended Operating Conditions are conditions under which operation of the device is intended to be functional, but does not guarantee specific performance limits.
(2) Minimum VIN operating voltage is always 4.5 V. The minimum input power supply voltage can be 3.0 V after start-up, assuming VIN voltage is supplied from an available external source.

6.4 Thermal Information

THERMAL METRIC(1)
LM25122-Q1
UNIT
PWP (HTSSOP)
20 PINS
RθJA Junction-to-ambient thermal resistance 36.0 ºC/W
RθJC(top) Junction-to-case (top) thermal resistance 20.1 ºC/W
RθJB Junction-to-board thermal resistance 16.8 ºC/W
ψJT Junction-to-top characterization parameter 0.4 ºC/W
ψJB Junction-to-board characterization parameter 16.7 ºC/W
ψJCbot Junction-to-case (bottom) thermal resistance 1.7 ºC/W
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

Unless otherwise specified, these specifications apply for –40°C ≤ TJ ≤ +125°C, VVIN = 12 V, VVCC = 8.3 V, RT = 20 kΩ, no load on LO and HO. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference purposes only.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VIN SUPPLY
ISHUTDOWN VIN shutdown current VUVLO = 0 V 9 17 µA
IBIAS VIN operating current (exclude the current into RT resistor) VUVLO = 2 V, non-switching 4 5 mA
VCC REGULATOR
VCC(REG) VCC regulation No load 6.9 7.6 8.3 V
VCC dropout (VIN to VCC) VVIN = 4.5 V, no external load 0.25 V
VVIN = 4.5 V, IVCC = 25 mA 0.28 0.5 V
VCC sourcing current limit VVCC = 0 V 50 62 mA
IVCC VCC operating current (exclude the current into RT resistor) VVCC = 8.3 V 3.5 5 mA
VVCC = 12 V 4.5 8 mA
VCC undervoltage threshold VCC rising, VVIN = 4.5 V 3.9 4.0 4.1 V
VCC falling, VVIN = 4.5 V 3.7 V
VCC undervoltage hysteresis 0.385 V
UNDERVOLTAGE LOCKOUT
UVLO threshold UVLO rising 1.17 1.20 1.23 V
UVLO hysteresis current VUVLO = 1.4 V 7 10 13 µA
UVLO standby enable threshold UVLO rising 0.3 0.4 0.5 V
UVLO standby enable hysteresis 0.1 0.125 V
MODE
Diode emulation mode threshold MODE rising 1.20 1.24 1.28 V
Diode emulation mode hysteresis 0.1 V
Default MODE voltage 145 155 170 mV
Default skip cycle threshold COMP rising, measured at COMP 1.290 V
COMP falling, measured at COMP 1.245 V
Skip cycle hysteresis Measured at COMP 40 mV
ERROR AMPLIFIER
VREF FB reference voltage Measured at FB, VFB= VCOMP 1.188 1.200 1.212 V
FB input bias current VFB= VREF 5 nA
VOH COMP output high voltage ISOURCE = 2 mA, VVCC = 4.5 V 2.75 V
ISOURCE = 2 mA, VVCC = 12 V 3.40 V
VOL COMP output low voltage ISINK = 2 mA 0.25 V
AOL DC gain 80 dB
fBW Unity gain bandwidth 3 MHz
Slave mode threshold FB rising 2.7 3.4 V
OSCILLATOR
fSW1 Switching frequency 1 RT = 20 kΩ 400 450 500 kHz
RT output voltage 1.2 V
RT sync rising threshold RT rising 2.5 2.9 V
RT sync falling threshold RT falling 1.6 2.0 V
Minimum sync pulse width 100 ns
SYNCOUT
SYNCOUT high-state voltage ISYNCOUT = –1 mA 3.3 4.3 V
SYNCOUT low-state voltage ISYNCOUT = 1 mA 0.15 0.25 V
OPT
Synchronization selection threshold OPT rising 2.0 3.0 4.0 V
SLOPE COMPENSATION
SLOPE output voltage 1.17 1.20 1.23 V
VSLOPE Slope compensation amplitude RSLOPE = 20 kΩ, fSW = 100 kHz, 50% duty cycle, TJ = –40ºC to +125ºC 1.375 1.650 1.925 V
RSLOPE= 20 kΩ, fSW= 100 kHz, 50% duty cycle, TJ = 25ºC 1.400 1.650 1.900 V
SOFT-START
ISS-SOURCE SS current source VSS = 0 V 7.5 10 12 µA
SS discharge switch RDS-ON 13 Ω
PWM COMPARATOR
tLO-OFF Forced LO off-time VVCC = 5.5 V 330 400 ns
VVCC = 4.5 V 560 750 ns
tON-MIN Minimum LO on-time RSLOPE = 20 kΩ 150 ns
RSLOPE = 200 kΩ 300 ns
COMP to PWM voltage drop TJ = –40ºC to +125ºC 0.95 1.10 1.25 V
TJ = 25ºC 1.00 1.10 1.20 V
CURRENT SENSE / CYCLE-BY-CYCLE CURRENT LIMIT
VCS-TH1 Cycle-by-cycle current limit threshold CSP to CSN, TJ = –40ºC to +125ºC 65.5 75.0 87.5 mV
CSP to CSN, TJ = 25ºC 67.0 75.0 86.0 mV
VCS-ZCD Zero cross detection threshold CSP to CSN, rising 7 mV
CSP to CSN, falling 0.5 6 12 mV
Current sense amplifier gain 10 V/V
ICSP CSP input bias current 12 µA
ICSN CSN input bias current 11 µA
Bias current matching ICSP - ICSN –1.75 1 3.75 µA
CS to LO delay Current sense / current limit delay 150 ns
HICCUP MODE RESTART
VRES Restart threshold RES rising 1.15 1.20 1.25 V
VHCP-UPPER Hiccup counter upper threshold RES rising 4.2 V
RES rising,
VVIN = VVCC = 4.5 V
3.6 V
VHCP-LOWER Hiccup counter lower threshold RES falling 2.15 V
RES falling,
VVIN = VVCC = 4.5 V
1.85 V
IRES-SOURCE1 RES current source1 Fault-state charging current 20 30 40 µA
IRES-SINK1 RES current sink1 Normal-state discharging current 5 µA
IRES-SOURCE2 RES current source2 Hiccup mode off-time charging current 10 µA
IRES-SINK2 RES current sink2 Hiccup mode off-time discharging current 5 µA
Hiccup cycle 8 Cycles
RES discharge switch RDS-ON 40 Ω
Ratio of hiccup mode off-time to restart delay time 122
HO GATE DRIVER
VOHH HO high-state voltage drop IHO = –100 mA, VOHH = VBST –VHO 0.15 0.24 V
VOLH HO low-state voltage drop IHO = 100 mA, VOLH = VHO –VSW 0.1 0.18 V
HO rise time (10% to 90%) CLOAD = 4700 pF, VBST = 12 V 25 ns
HO fall time (90% to 10%) CLOAD = 4700 pF, VBST = 12 V 20 ns
IOHH Peak HO source current VHO = 0 V, VSW = 0 V, VBST = 4.5 V 0.8 A
VHO = 0 V, VSW = 0 V, VBST = 7.6 V 1.9 A
IOLH Peak HO sink current VHO = VBST = 4.5 V 1.9 A
VHO = VBST= 7.6 V 3.2 A
IBST BST charge pump sourcing current VVIN = VSW = 9.0 V , VBST - VSW = 5.0 V 100 200 µA
BST charge pump regulation BST to SW, IBST= –70 μA,
VVIN = VSW = 9.0 V
5.3 6.2 6.75 V
BST to SW, IBST = –70 μA,
VVIN = VSW = 12 V
7 8.5 9 V
BST to SW undervoltage 2.0 3.0 3.5 V
BST DC bias current VBST - VSW = 12 V, VSW = 0 V 30 45 µA
LO GATE DRIVER
VOHL LO high-state voltage drop ILO = –100 mA, VOHL = VVCC –VLO 0.15 0.25 V
VOLL LO low-state voltage drop ILO = 100 mA, VOLL = VLO 0.1 0.17 V
LO rise time (10% to 90%) CLOAD = 4700 pF 25 ns
LO fall time (90% to 10%) CLOAD = 4700 pF 20 ns
IOHL Peak LO source current VLO = 0 V, VVCC = 4.5 V 0.8 A
VLO = 0 V 2.0 A
IOLL Peak LO sink current VLO = VVCC = 4.5 V 1.8 A
VLO = VVCC 3.2 A
SWITCHING CHARACTERISTICS
tDLH LO fall to HO rise delay No load, 50% to 50% 50 80 115 ns
tDHL HO fall to LO rise delay No load, 50% to 50% 60 80 105 ns
THERMAL
TSD Thermal shutdown Temperature rising 165 ºC
Thermal shutdown hysteresis 25 ºC

6.6 Typical Characteristics

LM25122-Q1 HO_peak_current.gif
VVIN = 12 V VSW = 0 V
Figure 1. HO Peak Current vs VBST - VSW
LM25122-Q1 TC_Deadtime_vs_Vvcc.gif
VVIN = 12 V VSW = 12 V CLOAD = 2600pF 1 V to 1 V
Figure 3. Dead Time vs VVCC
LM25122-Q1 TC_Deadtime_vs_vsw.gif
VVIN = 12 V VVCC = 7.6 V CLOAD = 2600pF 1 V to 1 V
Figure 5. Dead Time vs VSW

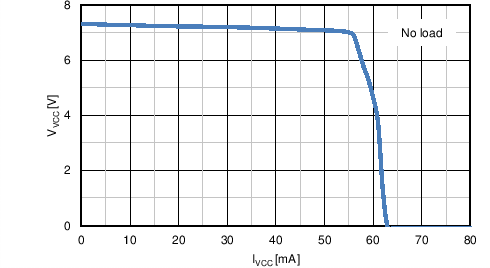

LM25122-Q1 TC Vvcc vs Ivcc.png
Figure 7. VVCC vs IVCC
LM25122-Q1 TC ErrorAmp_GainPhase.png
Figure 9. Error Amp Gain and Phase
vs Frequency
LM25122-Q1 TC Vbst-sw vs Vsw.png
Figure 11. VBST-SW vs VSW

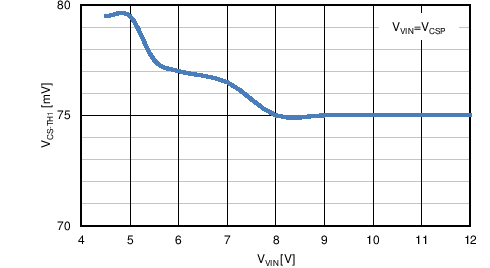

LM25122-Q1 TC Vcsth1 vs Vvin.png
Figure 13. VCS-TH1 vs VVIN
LM25122-Q1 TC Vbst-sw vs temp.png
Figure 15. VBST-SW vs Temperature

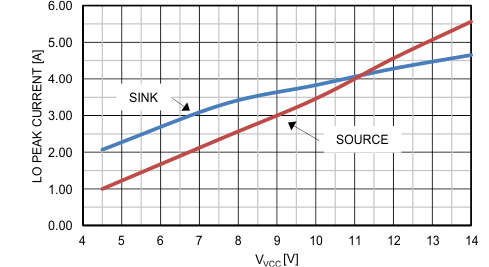

LM25122-Q1 LO_peak_current.gif
VVIN = 12 V
Figure 2. LO Peak Current vs VVCC
LM25122-Q1 TC Deadtime vs Temp.png
Figure 4. Dead Time vs Temperature
LM25122-Q1 TC Ishutdown vs temp.png
Figure 6. ISHUTDOWN vs Temperature

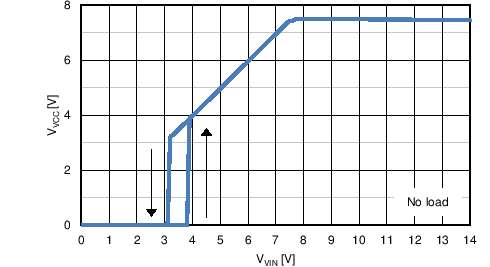

LM25122-Q1 TC VCC vs VVIN.png
Figure 8. VVCC vs VVIN

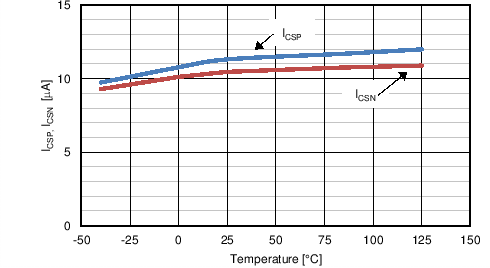

LM25122-Q1 TC ICSP ICSN temp.png
Figure 10. ICSP, ICSN vs Temperature

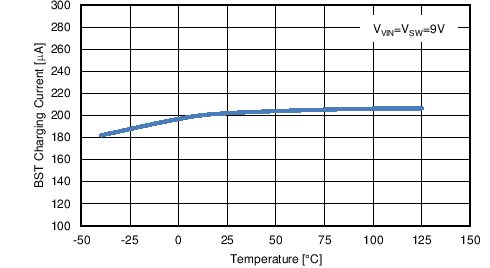

LM25122-Q1 TC Ibst vs Temp.png
Figure 12. IBST vs Temperature

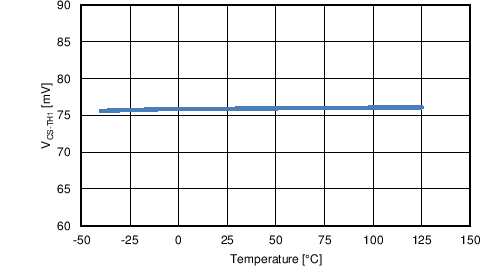

LM25122-Q1 TC Vcsth vs temp.png
Figure 14. VCS-TH1 vs Temperature
