5 Pin Configuration and Functions

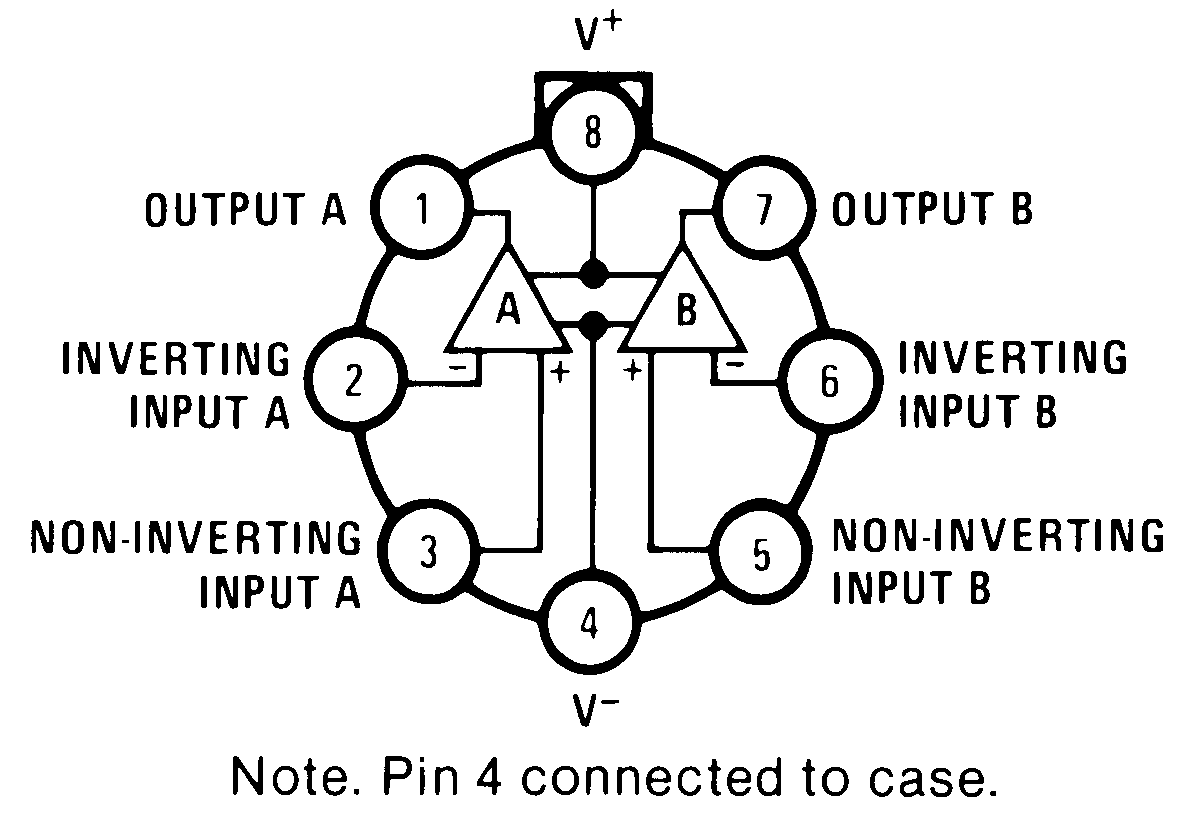

TO Package
See Package Number NEV0008A
Top View

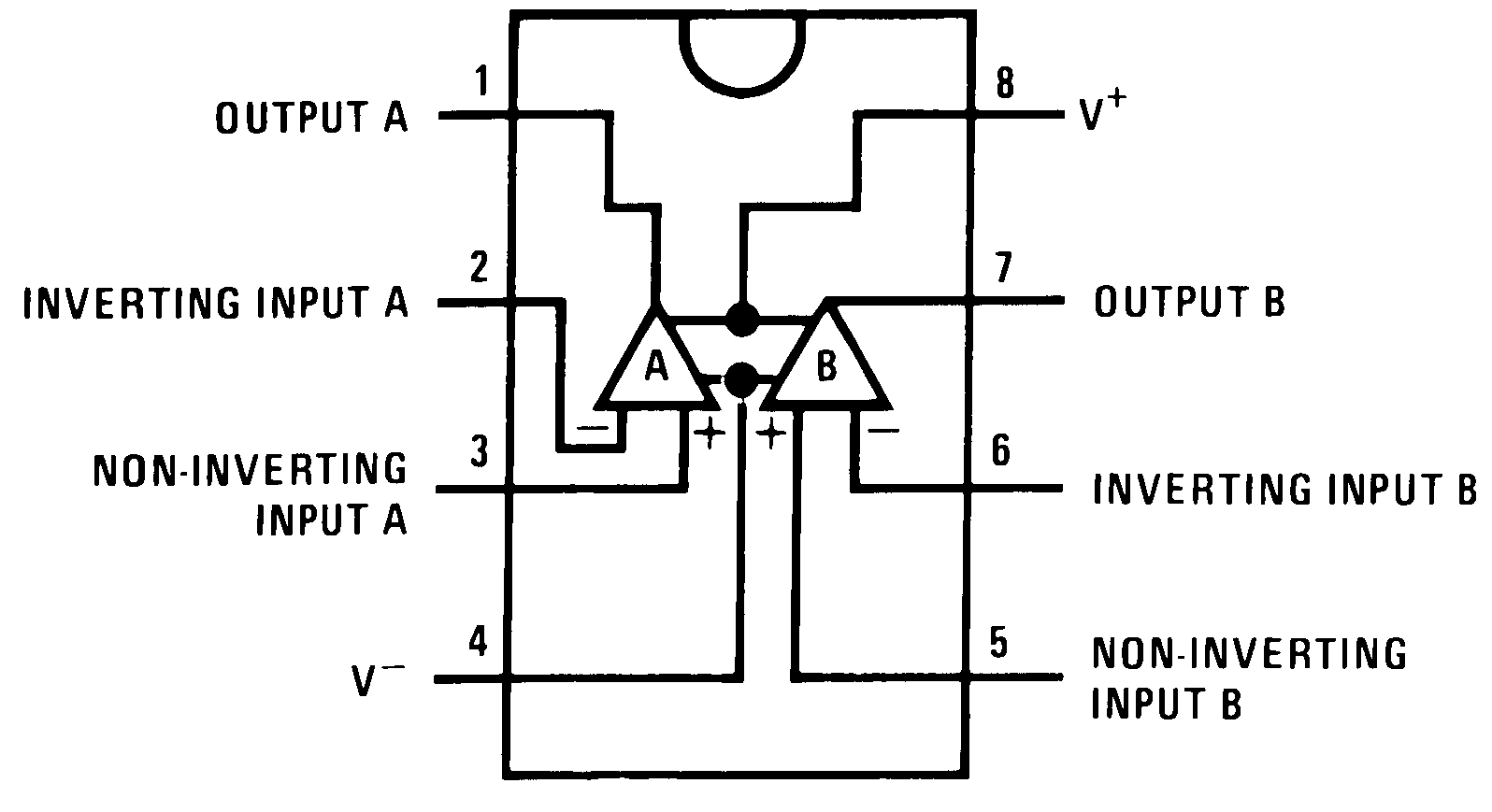

PDIP/CDIP Package
See Package Number P0008E or NAB0008A
Top View

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
Output A 1 O Amplifier A Output
Inverting Input A 2 I Amplifier A Inverting Input
Non-Inverting Input A 3 I Amplifier A Non-Inverting Input
V- 4 P Negative Supply
Non-Inverting Input B 5 I Amplifier B Non-Inverting Input
Inverting Input B 6 I Amplifier B Inverting Input
Output B 7 O Amplifier B Output
V+ 8 P Positive Supply
