7 Parameter Measurement Information

ISO7640FM ISO7641FM tst_cir_llse25.gif
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3ns, ZO = 50 Ω. At the input, 50-Ω resistor is required to terminate Input Generator signal. It is not needed in actual application.
B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 9. Switching Characteristics Test Circuit and Voltage Waveforms

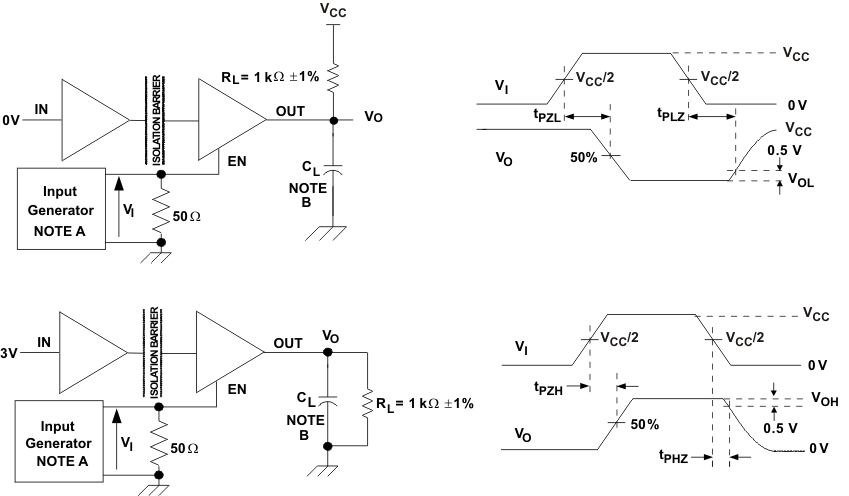

ISO7640FM ISO7641FM delay_tim_llse25.gif
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 10 kHz, 50% duty cycle,
tr ≤ 3 ns, tf ≤ 3 ns, ZO = 50 Ω.
B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 10. Enable/Disable Propagation Delay Time Test Circuit and Waveform

ISO7640FM ISO7641FM failsafe_llse89.gif
A. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 11. Fail-Safe Delay Time Test Circuit and Voltage Waveforms

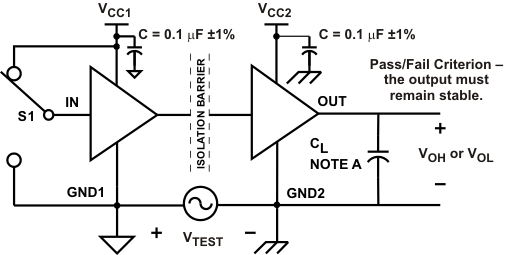

ISO7640FM ISO7641FM Immunity_llse25.gif
A. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 12. Common-Mode Transient Immunity Test Circuit
