7.12 Typical Characteristics

at TA = 25°C, VDD1 = VDD2 = 5 V, and VINP = –12 V to 12 V, unless otherwise noted.
ISO224 D003_SBAS738.gif

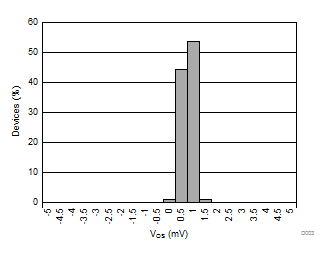

ISO224B
Figure 5. Input Offset Voltage Histogram

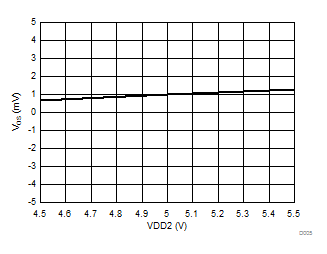

ISO224 D005_SBAS738.gif
Figure 7. Input Offset Voltage vs Low-Side Supply Voltage
ISO224 D007_SBAS738.gif

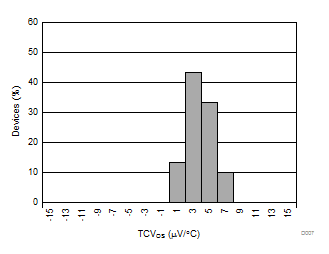

ISO224B
Figure 9. Input Offset Drift Histogram
ISO224 D009_SBAS738.gif

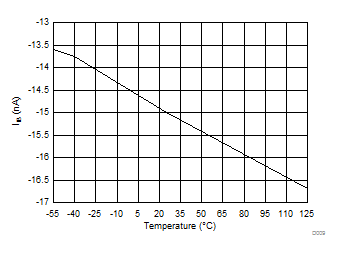

Figure 11. Input Bias Current vs Temperature
ISO224 D011_SBAS738.gif

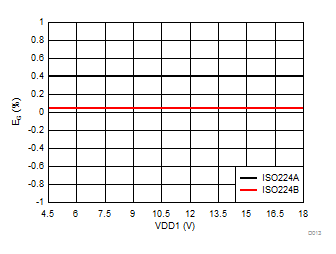

ISO224B

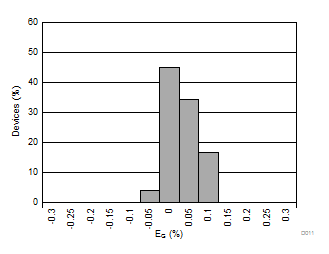

Figure 13. Gain Error Histogram
ISO224 D013_SBAS738.gif

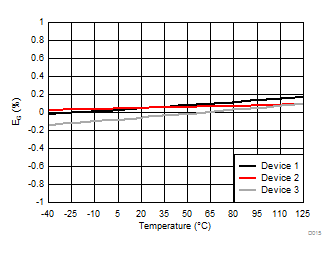

Figure 15. Gain Error vs High-Side Supply Voltage
ISO224 D015_SBAS738.gif
ISO224B
Figure 17. Gain Error vs Temperature
ISO224 D017_SBAS738.gif

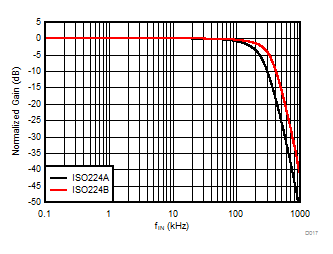

Figure 19. Normalized Gain vs Input Frequency
ISO224 D019_SBAS738.gif

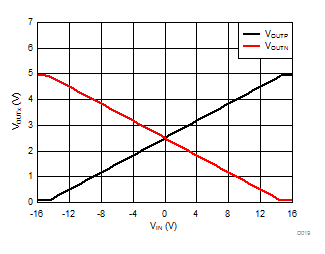

Figure 21. Output Voltage vs Input Voltage
ISO224 D021_SBAS738.gif

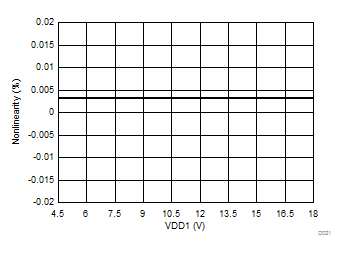

Figure 23. Nonlinearity vs High-Side Supply Voltage
ISO224 D023_SBAS738.gif

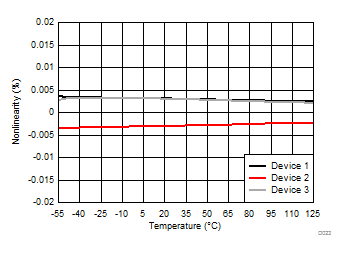

Figure 25. Nonlinearity vs Temperature

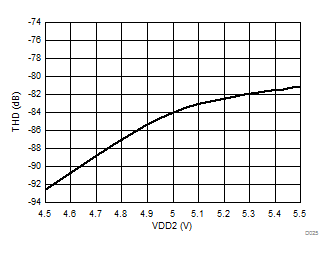

ISO224 D025_SBAS738.gif
Figure 27. Total Harmonic Distortion
vs Low-Side Supply Voltage
ISO224 D027_SBAS738.gif

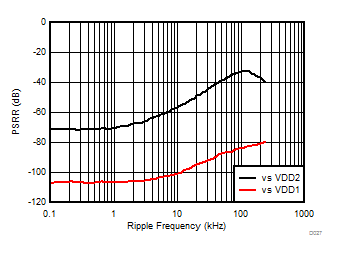

Figure 29. Power-Supply Rejection Ratio
vs Ripple Frequency
ISO224 D029_SBAS738.gif

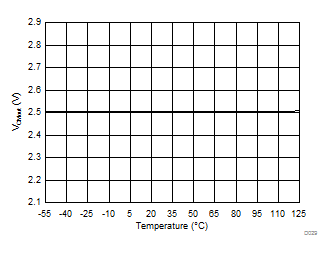

Figure 31. Output Common-Mode Voltage vs Temperature
ISO224 D031_SBAS738.gif

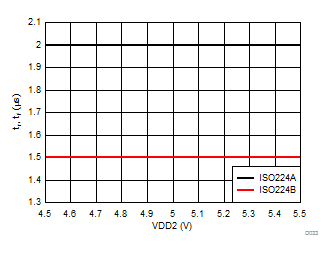

Figure 33. Low-Side Supply Current
vs Low-Side Supply Voltage
ISO224 D033_SBAS738.gif

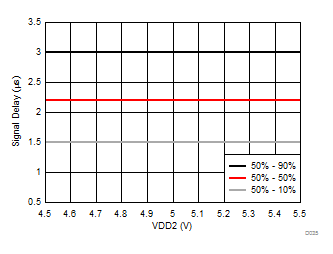

Figure 35. Output Rise and Fall Time
vs Low-Side Supply Voltage
ISO224 D035_SBAS738.gif
ISO224B
Figure 37. VIN to VOUT Signal Delay
vs Low-Side Supply Voltage
ISO224 D037_SBAS738.gif
ISO224B
Figure 39. VIN to VOUT Signal Delay vs Temperature

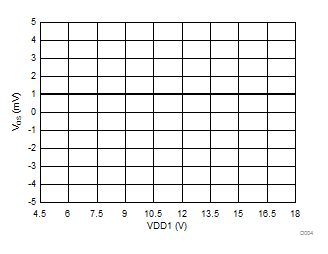

ISO224 D004_SBAS738.gif
Figure 6. Input Offset Voltage vs High-Side Supply Voltage

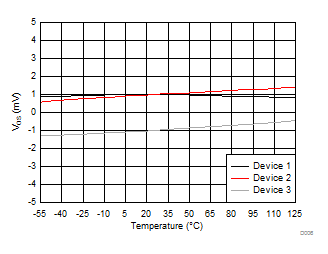

ISO224 D006_SBAS738.gif
ISO224B
Figure 8. Input Offset Voltage vs Temperature
ISO224 D008_SBAS738.gif

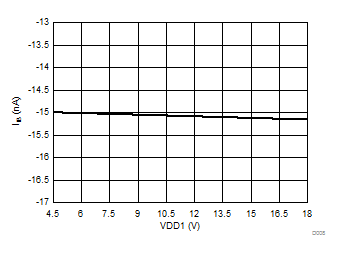

Figure 10. Input Bias Current vs High-Side Supply Voltage
ISO224 D010_SBAS738.gif
ISO224B

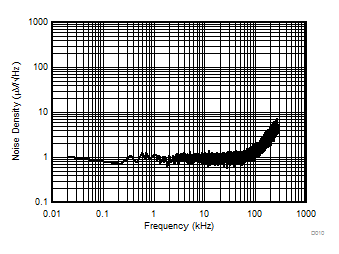

Figure 12. Input-Referred Noise Density vs Frequency
ISO224 D012_SBAS738.gif
ISO224A

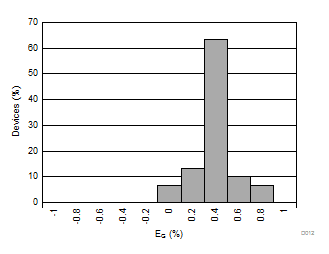

Figure 14. Gain Error Histogram
ISO224 D014_SBAS738.gif

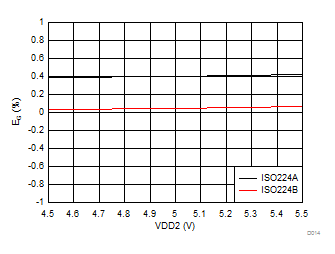

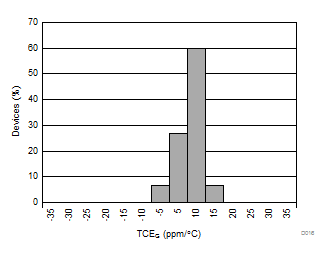

Figure 16. Gain Error vs Low-Side Supply Voltage
ISO224 D016_SBAS738.gif
ISO224B
Figure 18. Gain Error Drift Histogram
ISO224 D018_SBAS738.gif

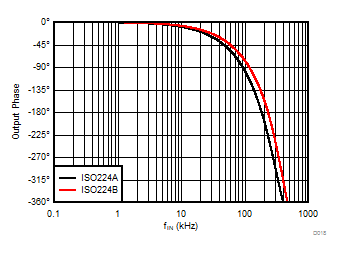

Figure 20. Output Phase vs Input Frequency

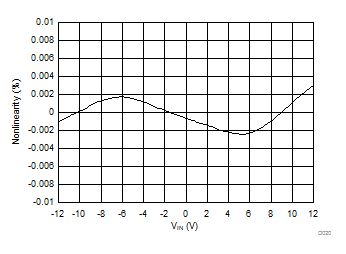

ISO224 D020_SBAS738.gif
Figure 22. Nonlinearity vs Input Voltage
ISO224 D022_SBAS738.gif

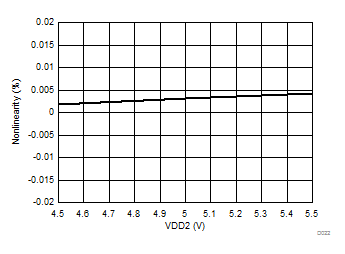

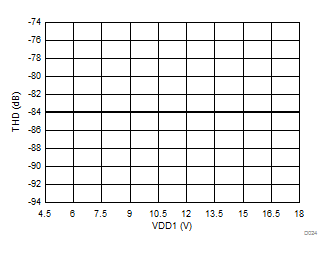

Figure 24. Nonlinearity vs Low-Side Supply Voltage
ISO224 D024_SBAS738.gif
Figure 26. Total Harmonic Distortion
vs High-Side Supply Voltage
ISO224 D026_SBAS738.gif

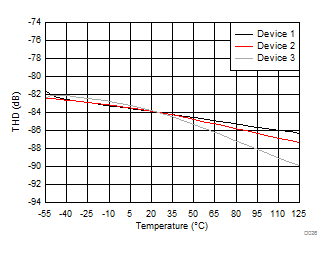

Figure 28. Total Harmonic Distortion vs Temperature
ISO224 D028_SBAS738.gif

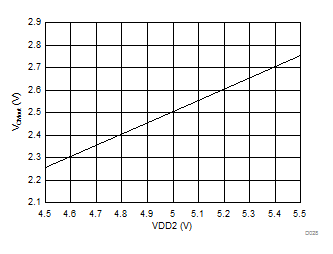

Figure 30. Output Common-Mode Voltage
vs Low-Side Supply Voltage
ISO224 D030_SBAS738.gif

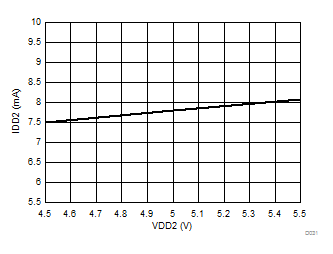

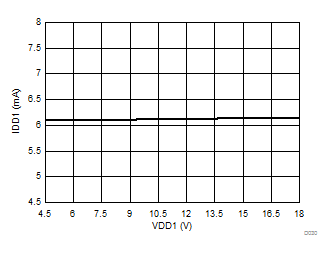

Figure 32. High-Side Supply Current
vs High-Side Supply Voltage
ISO224 D032_SBAS738.gif

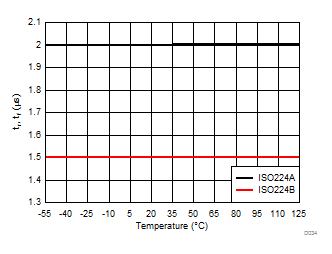

Figure 34. Supply Current vs Temperature
ISO224 D034_SBAS738.gif
Figure 36. Output Rise and Fall Time vs Temperature
ISO224 D036_SBAS738.gif
ISO224A
Figure 38. VIN to VOUT Signal Delay
vs Low-Side Supply Voltage
ISO224 D038_SBAS738.gif
ISO224A

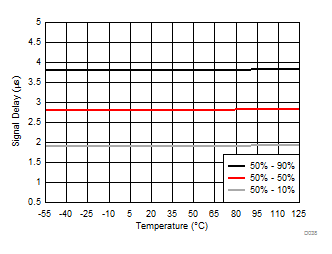

Figure 40. VIN to VOUT Signal Delay vs Temperature
