7.3.4 Input Protection

The inputs of the INA828 device are individually protected for voltages up to ±40 V. For example, a condition of –40 V on one input and 40 V on the other input does not cause damage. Internal circuitry on each input provides low series impedance under normal signal conditions. If the input is overloaded, the protection circuitry limits the input current to a value of approximately 8 mA.

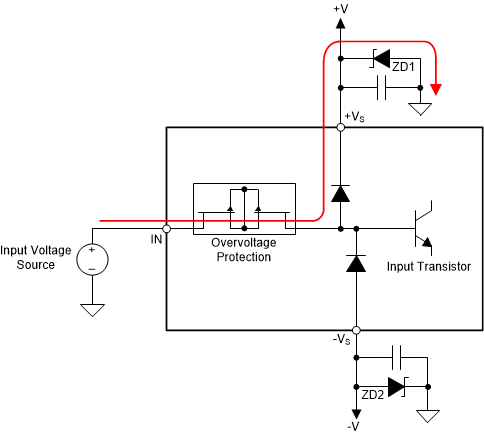

INA828 ai_D004_SBOS792.gifFigure 59. Input Current Path During an Overvoltage Condition

During an input overvoltage condition, current flows through the input protection diodes into the power supplies, see Figure 59. If the power supplies are unable to sink current, then Zener diode clamps (ZD1 and ZD2 in Figure 59) must be placed on the power supplies to provide a current pathway to ground. Figure 60 illustrates the input current for input voltages from –40 V to +40 V when the INA828 is powered by ±15-V supplies.

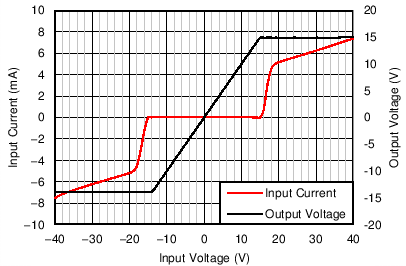

INA828 C115_SBOS792.pngFigure 60. Input Current vs Input Overvoltage
