6.6 Typical Characteristics

At TA = 25°C, VS = ±15 V, RL = 10 kΩ, VREF = 0 V, and G = 1 (unless otherwise noted)
INA828 C101_SBOS792.png
N = 1886 Mean = 4.73 µV
Std. Dev. = 13.98 µV
Figure 1. Typical Distribution of Input Offset Voltage

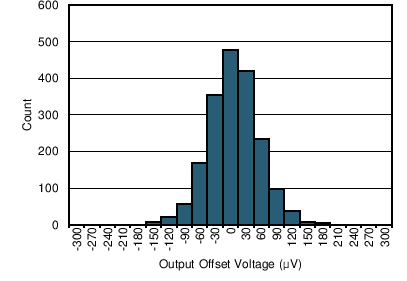

INA828 C103_SBOS792.png
N = 1886 Mean = –8.71 µV
Std. Dev. = 48.57 µV
Figure 3. Typical Distribution of Output Offset Voltage
INA828 C131_SBOS792.png
G = 100
88 units, 3 wafer lots
Figure 5. Input-Referred Offset Voltage vs Temperature
INA828 C105_SBOS792.png
N = 1886 Mean = 36.25 pA
Std. Dev. = 65.31 pA
Figure 7. Typical Distribution of Input Bias Current (25°C)
INA828 C106_SBOS792.png
N = 1886 Mean = –52.64 pA
Std. Dev. = 63.86 pA
Figure 9. Typical Distribution of Input Offset Current
INA828 C118_SBOS792.png
Figure 11. Input Offset Current vs Temperature
INA828 C108_SBOS792.png
N = 1886 Mean = 0.01 µV/V
Std. Dev. = 0.1 µV/V
Figure 13. Typical CMRR Distribution (G = 100)
INA828 C122_SBOS792.png
1.
Figure 15. CMRR vs Temperature (G = 100)
INA828 C005_SBOS792.png
Figure 17. CMRR vs Frequency (RTI)

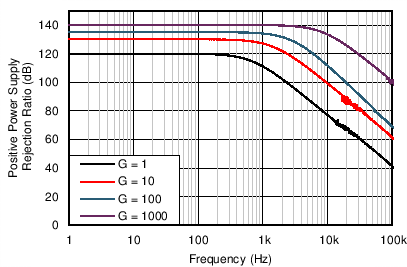

INA828 C003_SBOS792.png
Figure 19. Positive PSRR vs Frequency (RTI)
INA828 C001_SBOS792.png
Figure 21. Gain vs Frequency

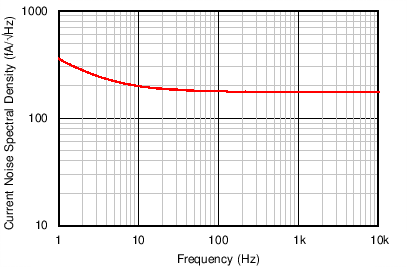

INA828 C007_SBOS792.png
Figure 23. Current Noise Spectral Density
vs Frequency (RTI)
INA828 C008b_SBOS792.png
Figure 25. 0.1-Hz to 10-Hz RTI Voltage Noise (G = 1000)
INA828 C116_SBOS792.png
VS = ±15 V
Figure 27. Input Bias Current vs Common-Mode Voltage

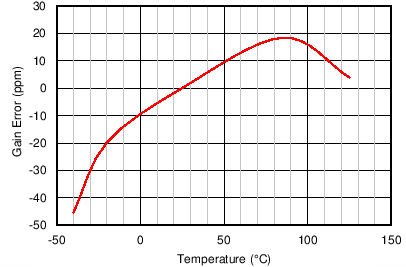

INA828 C120_SBOS792.png
Figure 29. Gain Error vs Temperature (G = 100)
INA828 C124_SBOS792.png
Figure 31. Gain Nonlinearity (G = 1)
INA828 C126_SBOS792.png
Figure 33. Offset Voltage vs Negative Common-Mode Voltage
INA828 C128_SBOS792.png
Figure 35. Positive Output Voltage Swing vs Output Current
INA828 C010_SBOS792.png

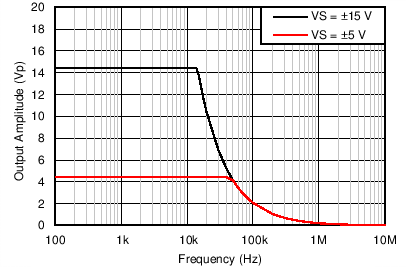

Figure 37. Large-Signal Frequency Response

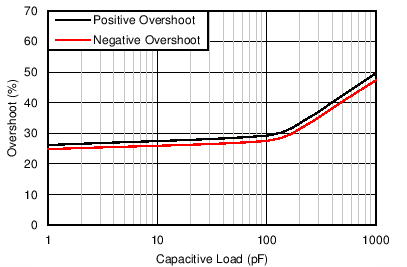

INA828 C011_SBOS792.png
Figure 39. Overshoot vs Capacitive Loads
INA828 C013_SBOS792.png
G = 10, RL = 10 kΩ, CL = 100 pF
Figure 41. Small-Signal Response
INA828 C015_SBOS792.png
G = 1000, RL = 10 kΩ, CL = 100 pF
Figure 43. Small-Signal Response
INA828 C016_SBOS792.png
Figure 45. Closed-Loop Output Impedance
INA828 C202_SBOS792.png
Figure 47. Common-Mode EMI Rejection Ratio
INA828 C112_SBOS792.png
VS = 5 V, G = 100
Figure 49. Input Common-Mode Voltage vs Output Voltage
INA828 C111_SBOS792.png
VS = ±15 V, VREF = 0 V
Figure 51. Input Common-Mode Voltage vs Output Voltage
INA828 C102_SBOS792.png
N = 19081 Mean = 0.16 nV/°C
Std. Dev. = 0.09 µV/°C
Figure 2. Typical Distribution of Input Offset Voltage Drift
INA828 C104_SBOS792.png
N = 19081 Mean = –0.73 µV/°C
Std. Dev. = 0.74 µV/°C
Figure 4. Typical Distribution of Output Offset Voltage Drift
INA828 C130_SBOS792.png
G = 1
88 units, 3 wafer lots
Figure 6. Input-Referred Offset Voltage vs Temperature
INA828 C105B_SBOS792.png
N = 19081 Mean = –5.32 pA
Std. Dev. = 57.46 pA
Figure 8. Typical Distribution of Input Bias Current (90°C)
INA828 C117_SBOS792.png

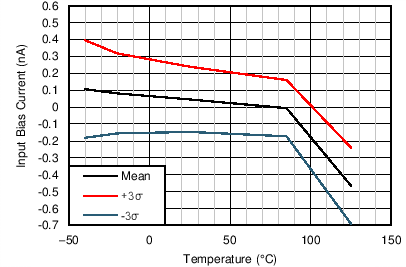

Figure 10. Input Bias Current vs Temperature

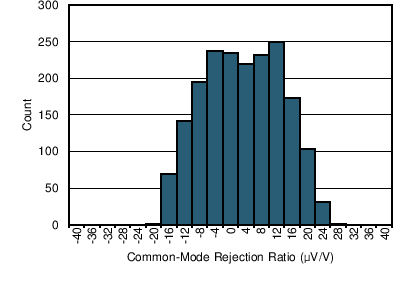

INA828 C107_SBOS792.png
N = 1886 Mean = 1.18 µV/V
Std. Dev. = 10.04 µV/V
Figure 12. Typical CMRR Distribution (G = 1)
INA828 C121_SBOS792.png
5 Typical Units
Figure 14. CMRR vs Temperature (G = 1)
INA828 C115_SBOS792.png
Figure 16. Input Current vs Input Overvoltage
INA828 C006_SBOS792.png
Figure 18. CMRR vs Frequency
(RTI, 1-kΩ Source Imbalance)
INA828 C004_SBOS792.png
Figure 20. Negative PSRR vs Frequency (RTI)
INA828 C002_SBOS792.png
Figure 22. Voltage Noise Spectral Density
vs Frequency (RTI)
INA828 C008_SBOS792.png

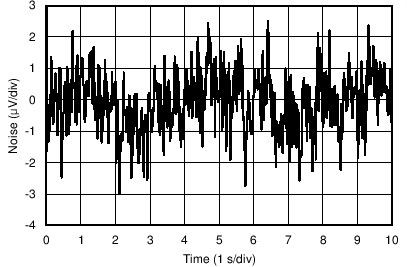

Figure 24. 0.1-Hz to 10-Hz RTI Voltage Noise (G = 1)
INA828 C009_SBOS792.png
Figure 26. 0.1-Hz to 10-Hz RTI Current Noise
INA828 C119_SBOS792.png

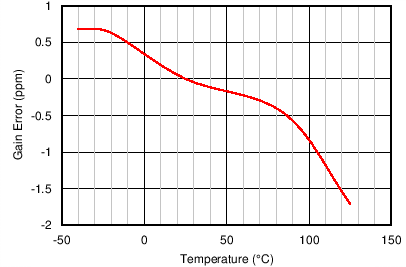

Figure 28. Gain Error vs Temperature (G = 1)
INA828 C123_SBOS792.png
Figure 30. Supply Current vs Temperature
INA828 C125_SBOS792.png
Figure 32. Gain Nonlinearity (G = 100)
INA828 C127_SBOS792.png
Figure 34. Offset Voltage vs Positive Common-Mode Voltage
INA828 C129_SBOS792.png
Figure 36. Negative Output Voltage Swing vs Output Current

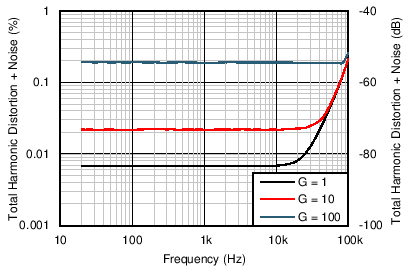

INA828 C017_SBOS792.png
500-kHz Measurement bandwidth 1-VRMS Output voltage
100-kΩ Load
Figure 38. THD+N vs Frequency
INA828 C012_SBOS792.png
G = 1, RL = 10 kΩ, CL = 100 pF
Figure 40. Small-Signal Response

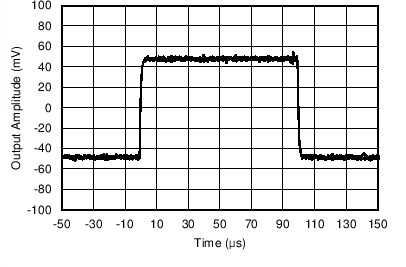

INA828 C014_SBOS792.png
G = 100, RL = 10 kΩ, CL = 100 pF
Figure 42. Small-Signal Response
INA828 C018_SBOS792.png
Figure 44. Large Signal Step Response
INA828 C201_SBOS792.png
Figure 46. Differential-Mode EMI Rejection Ratio
INA828 C109_SBOS792.png

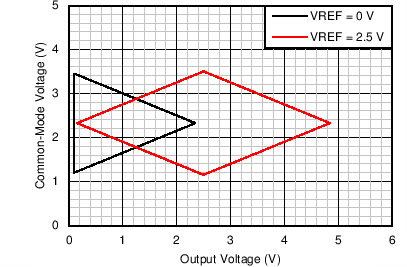

VS = 5 V, G = 1
Figure 48. Input Common-Mode Voltage vs Output Voltage
INA828 C110_SBOS792.png

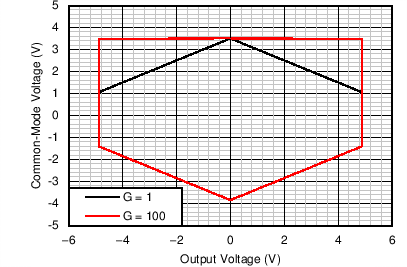

VS = ±5 V, VREF = 0 V
Figure 50. Input Common-Mode Voltage vs Output Voltage
