6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage, VS 6 V
Analog inputs (IN+, IN–) Differential (VIN+) – (VIN–)(2) –40 40 V
Common-mode(3) GND – 0.3 40
Analog input LIMIT pin GND – 0.3 (VS) + 0.3 V
Analog output OUT pin GND – 0.3 (VS) + 0.3 V
Digital input RESET pin GND – 0.3 (VS) + 0.3 V
Digital output ALERT pin GND – 0.3 6 V
Junction temperature, TJ 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) VIN+ and VIN– are the voltages at the IN+ and IN– pins, respectively.
(3) Input voltage can exceed the voltage shown without causing damage to the device if the current at that pin is limited to 5 mA.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VCM Common-mode input voltage 12 V
VS Operating supply voltage 5 V
TA Operating free-air temperature –40 125 °C

6.4 Thermal Information

THERMAL METRIC(1) INA301 UNIT
DGK (MSOP)
8 PINS
RθJA Junction-to-ambient thermal resistance 161.5 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 62.3 °C/W
RθJB Junction-to-board thermal resistance 81.4 °C/W
ψJT Junction-to-top characterization parameter 6.8 °C/W
ψJB Junction-to-board characterization parameter 80 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

at TA = 25°C, VSENSE = VIN+ – VIN– = 10 mV, VS = 5 V, VIN+ = 12 V, and VLIMIT = 2 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
INPUT
VCM Common-mode input voltage range 0 36 V
VIN Differential input voltage range VIN = VIN+ – VIN–, INA301A1 0 250 mV
VIN = VIN+ – VIN–, INA301A2 0 100
VIN = VIN+ – VIN–, INA301A3 0 50
CMR Common-mode rejection INA301A1, VIN+ = 0 V to 36 V,
TA = –40ºC to +125ºC		 100 110 dB
INA301A2, VIN+ = 0 V to 36 V,
TA = –40ºC to +125ºC		 106 118
INA301A3, VIN+ = 0 V to 36 V,
TA = –40ºC to +125ºC		 110 120
VOS Offset voltage, RTI(1) INA301A1 ±25 ±125 µV
INA301A2 ±15 ±50
INA301A3 ±10 ±35
dVOS/dT Offset voltage drift, RTI(1) TA= –40ºC to +125ºC 0.1 0.5 µV/°C
PSRR Power-supply rejection ratio VS = 2.7 V to 5.5 V, VIN+ = 12 V,
TA = –40ºC to +125ºC		 ±0.1 ±10 µV/V
IB Input bias current IB+, IB– 120 µA
IOS Input offset current VSENSE = 0 mV ±0.1 µA
OUTPUT
G Gain INA301A1 20 V/V
INA301A2 50
INA301A3 100
Gain error INA301A1, VOUT = 0.5 V to VS – 0.5 V ±0.03% ±0.1%
INA301A2, VOUT = 0.5 V to VS – 0.5 V ±0.05% ±0.15%
INA301A3, VOUT = 0.5 V to VS – 0.5 V ±0.11% ±0.2%
TA= –40ºC to 125ºC 3 10 ppm/°C
Nonlinearity error VOUT = 0.5 V to VS – 0.5 V ±0.01%
Maximum capacitive load No sustained oscillation 500 pF
VOLTAGE OUTPUT
Swing to VS power-supply rail RL = 10 kΩ to GND,
TA = –40ºC to +125ºC		 VS – 0.05 VS – 0.1 V
Swing to GND RL = 10 kΩ to GND,
TA = –40ºC to +125ºC		 VGND + 20 VGND + 30 mV
FREQUENCY RESPONSE
BW Bandwidth INA301A1 550 kHz
INA301A2 500
INA301A3 450
SR Slew rate 4 V/µs
NOISE, RTI(1)
Voltage noise density 30 nV/√Hz
COMPARATOR
tp Total alert propagation delay Input overdrive = 1 mV 0.75 1 µs
Slew-rate-limited tp VOUT step = 0.5 V to 4.5 V, VLIMIT = 4 V 1 1.5
ILIMIT Limit threshold output current TA = 25ºC 79.7 80 80.3 µA
TA = –40ºC to +125ºC 79.2 80.8
VOS Comparator offset voltage INA301A1 1 3.5 mV
INA301A2 1 4
INA301A3 1.5 4.5
HYS Hysteresis INA301A1 20 mV
INA301A2 50
INA301A3 100
VIH High-level input voltage 1.4 6 V
VIL Low-level input voltage 0 0.4 V
VOL Alert low-level output voltage IOL = 3 mA 70 300 mV
ALERT pin leakage input current VOH = 3.3 V 0.1 1 µA
Digital leakage input current 0 ≤ VIN ≤ VS 1 µA
POWER SUPPLY
VS Operating supply range TA = –40ºC to +125ºC 2.7 5.5 V
IQ Quiescent current VSENSE = 0 mV, TA = 25ºC 500 650 µA
TA = –40ºC to +125ºC 700
TEMPERATURE RANGE
Specified range –40 125 °C
(1) RTI = referred-to-input.

6.6 Typical Characteristics

at TA = 25°C, VS = 5 V, VIN+ = 12 V, and alert pullup resistor = 10 kΩ (unless otherwise noted)
INA301 D001_SBOS713.gif
Figure 1. Input Offset Voltage Distribution (INA301A1)
INA301 D033_SBOS713.gif
Figure 3. Input Offset Voltage Distribution (INA301A3)
INA301 D003_SBOS713.gif

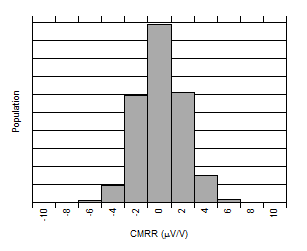

Figure 5. Common-Mode Rejection Ratio Distribution (INA301A1)
INA301 D035_SBOS713.gif
Figure 7. Common-Mode Rejection Ratio Distribution (INA301A3)
INA301 D005_SBOS713.gif
Figure 9. Common-Mode Rejection Ratio vs Frequency
INA301 D036_SBOS713.gif
Figure 11. Gain Error Distribution (INA301A2)
INA301 D007_SBOS713.gif

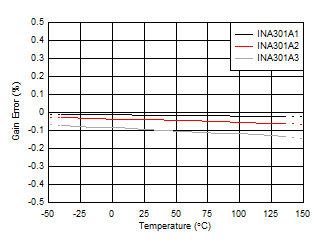

Figure 13. Gain Error vs Temperature
INA301 D009_SBOS713.gif

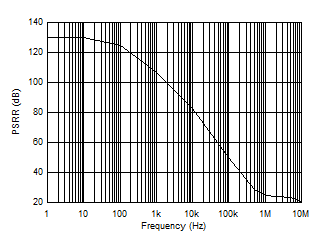

Figure 15. Power-Supply Rejection Ratio vs Frequency
INA301 D011_SBOS713.gif

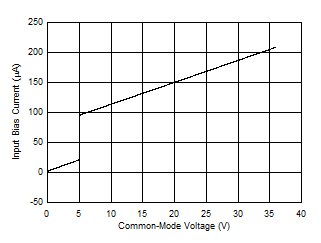

Figure 17. Input Bias Current vs Common-Mode Voltage
(VS = 5 V)
INA301 D013_SBOS713.gif

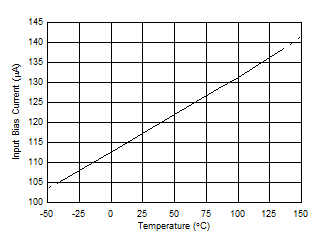

Figure 19. Input Bias Current vs Temperature
INA301 D014_SBOS713.gif
Figure 21. Quiescent Current vs Temperature
INA301 D017_SBOS713.gif

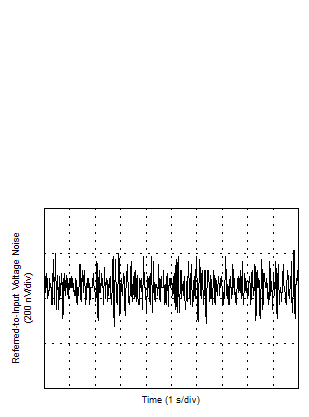

Figure 23. 0.1-Hz to 10-Hz Voltage Noise
(Referred-to-Input)
INA301 D019_SBOS713.gif
Figure 25. Voltage Output Falling Step Response
(4-VPP Output Step)
INA301 D021_SBOS713.gif
Figure 27. Start-Up Response
INA301 D024_SBOS713.gif
Figure 29. Total Propagation Delay (INA301A1)
INA301 D026_SBOS713.gif
Figure 31. Total Propagation Delay (INA301A3)
INA301 D029_SBOS713.gif
Figure 33. Comparator Alert VOL vs IOL
INA301 D031_SBOS713.gif
Figure 35. Comparator Reset Response
INA301 D032_SBOS713.gif
Figure 2. Input Offset Voltage Distribution (INA301A2)
INA301 D002_SBOS713.gif
Figure 4. Input Offset Voltage vs Temperature
INA301 D034_SBOS713.gif

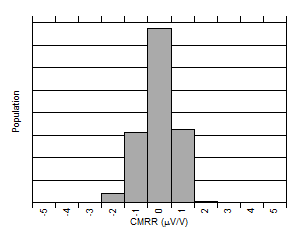

Figure 6. Common-Mode Rejection Ratio Distribution (INA301A2)
INA301 D004_SBOS713.gif

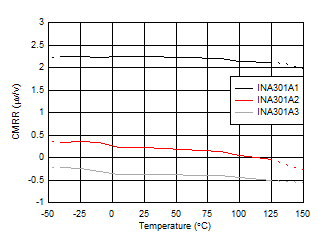

Figure 8. Common-Mode Rejection Ratio vs Temperature
INA301 D006_SBOS713.gif
Figure 10. Gain Error Distribution (INA301A1)
INA301 D037_SBOS713.gif
Figure 12. Gain Error Distribution (INA301A3)
INA301 D008_SBOS713.gif
Figure 14. Gain vs Frequency
INA301 D010_SBOS713.gif
Figure 16. Output Voltage Swing vs Output Current
INA301 D012_SBOS713.gif

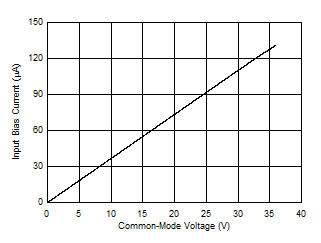

Figure 18. Input Bias Current vs Common-Mode Voltage
(VS = 0 V)
INA301 D015_SBOS713.gif

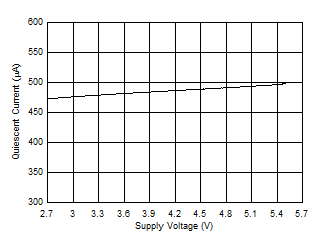

Figure 20. Quiescent Current vs Supply Voltage
INA301 D016_SBOS713.gif

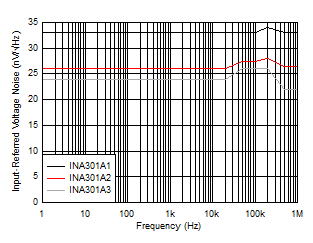

Figure 22. Input-Referred Voltage Noise vs Frequency
INA301 D018_SBOS713.gif
Figure 24. Voltage Output Rising Step Response
(4-VPP Output Step)
INA301 D020_SBOS713.gif
Figure 26. Common-Mode Voltage Transient Response
INA301 D022_SBOS713.gif

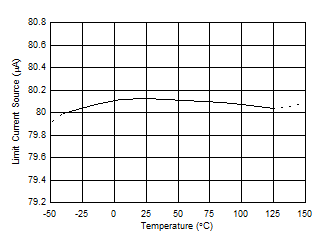

Figure 28. Limit Current Source vs Temperature
INA301 D025_SBOS713.gif
Figure 30. Total Propagation Delay (INA301A2)
INA301 D028_SBOS713.gif
Figure 32. Comparator Propagation Delay vs Temperature (VOD = 1 mV)
INA301 D030_SBOS713.gif
Figure 34. Hysteresis vs Temperature
