8.2.6 Multiplexed Measurement Using Logic Signal for Power

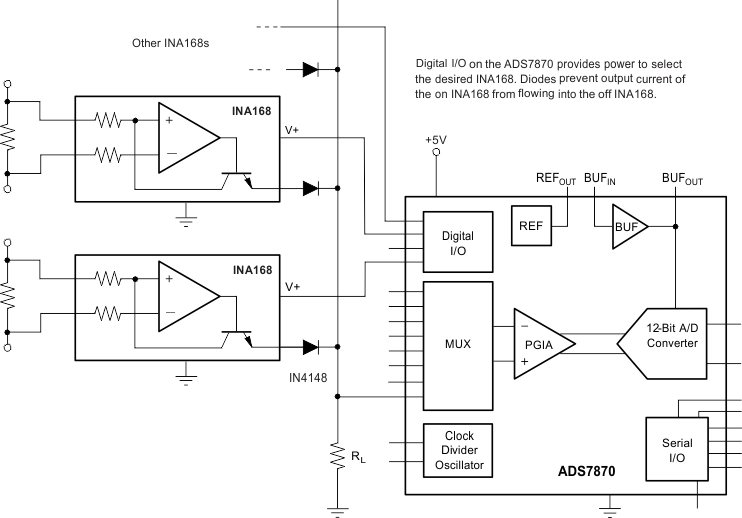

Multiple loads can be measured as illustrated in Figure 18. In this configuration each INA1x8 device is powered by the digital I/O from the ADS7870. Multiplexing is achieved by switching on or off each the desired I/O.

INA138 INA168 multiplexed_measurement_using_logic_sbos122.gifFigure 18. Multiplexed Measurement Using Logic Signal for Power
