6.6 Typical Characteristics

at TA = 25°C, VS = ±18 V, VCM = VOUT = midsupply, and RL = 2 kΩ (unless otherwise noted)
INA1650 INA1651 C108_SBOS818.png

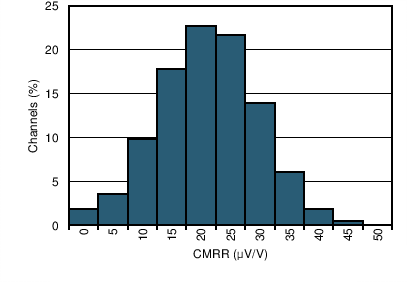

5746 Channels
VREF Pins Connected to Ground
Figure 1. Common-Mode Rejection Ratio Distribution
INA1650 INA1651 C110_SBOS818.png
5746 Channels

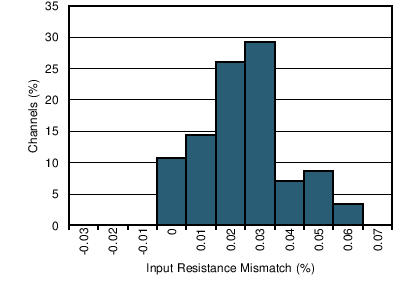

Figure 3. Distribution of Mismatch in 500-kΩ Input Resistors
INA1650 INA1651 C209_SBOS818.png
5746 Channels

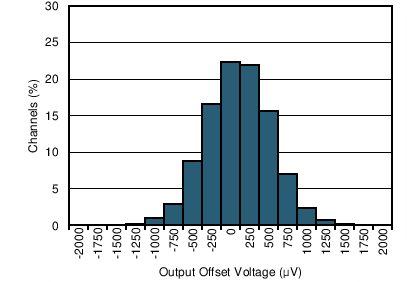

Figure 5. Offset Voltage Distribution
INA1650 INA1651 C301_SBOS818.png

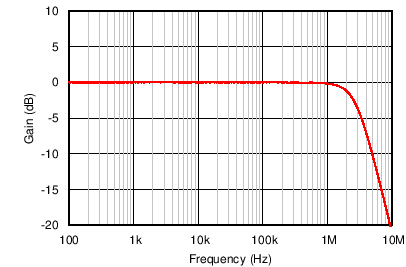

Figure 7. Frequency Response
INA1650 INA1651 C303_SBOS818.png

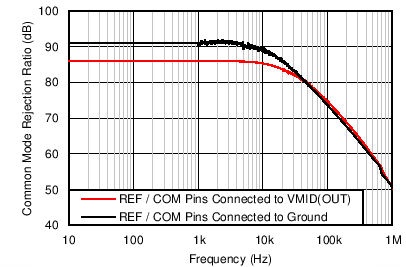

Figure 9. Common-Mode Rejection Ratio vs Frequency
INA1650 INA1651 C304_SBOS818.png

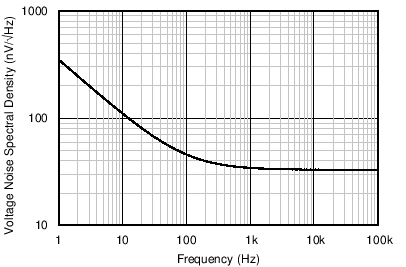

Figure 11. Voltage Noise Spectral Density
INA1650 INA1651 C102_SBOS818.png

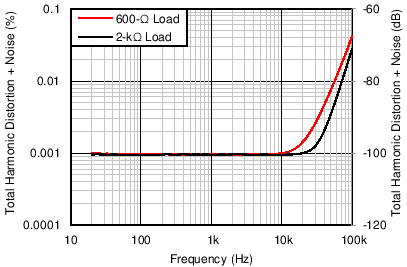

3 VRMS, 500-kHz Measurement Bandwidth
Figure 13. THD+N vs Frequency
INA1650 INA1651 C104_SBOS818.png

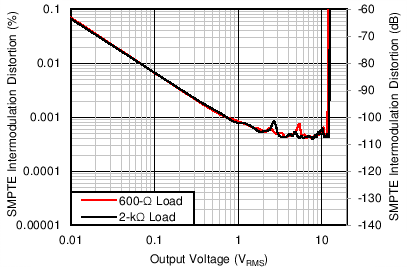

SMPTE 4:1 60 Hz and 7 kHz, 90-kHz Measurement Bandwidth
Figure 15. SMPTE Intermodulation Distortion vs Output Amplitude
INA1650 INA1651 C207_SBOS818.png

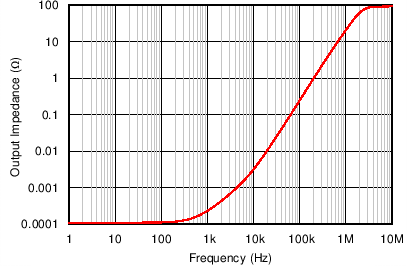

Figure 17. Signal Path Output Impedance vs Frequency
INA1650 INA1651 C305_SBOS818.png
100-mV Input Step

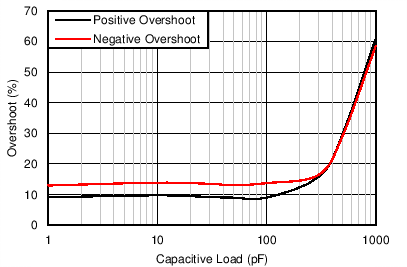

Figure 19. Overshoot vs Capacitive Load
INA1650 INA1651 C307_SBOS818.png

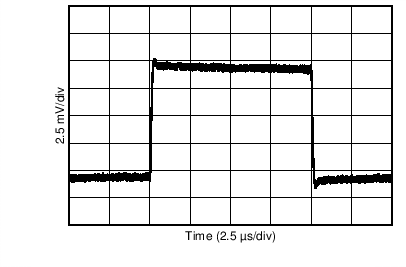

10-mV Input Step
Figure 21. Small-Signal Step Response
INA1650 INA1651 C309_SBOS818.png

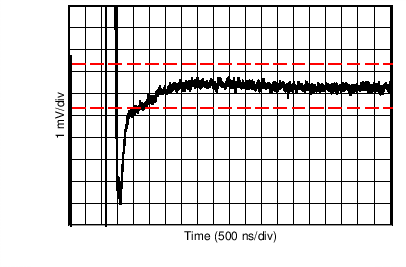

10-V Input Step, 0.01% Settling = ± 1 mV
Figure 23. Rising-Edge Settling Time
INA1650 INA1651 C306_SBOS818.png
Figure 25. No Phase Reversal
INA1650 INA1651 C019_SBOS818.png
5 Typical Units

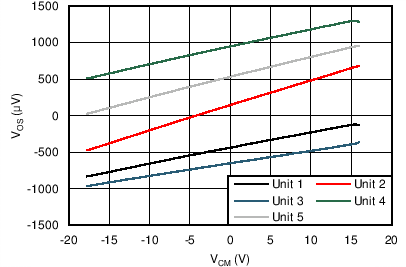

Figure 27. Output Offset Voltage vs Common-Mode Voltage
INA1650 INA1651 C007_SBOS818.png

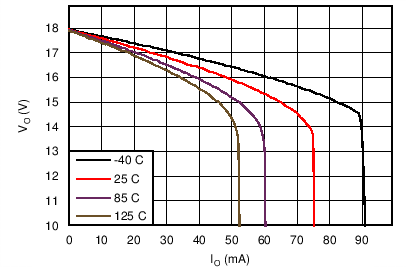

Figure 29. Positive Output Voltage vs Output Current
INA1650 INA1651 C005_SBOS818.png

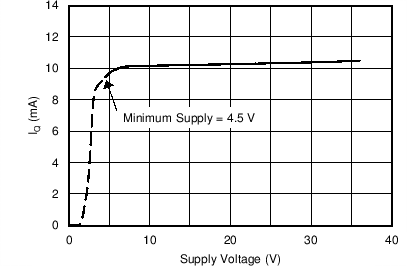

Figure 31. Power Supply Current vs Power Supply Voltage
INA1650 INA1651 ai_C006_SBOS818.png
REF A/B connected to 0 V

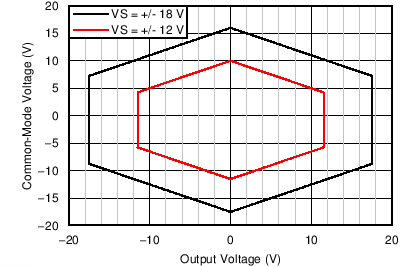

Figure 33. Input Common-Mode Voltage vs Output Voltage
INA1650 INA1651 ai_C008_SBOS818.png
REF A/B connected to VMID(OUT)

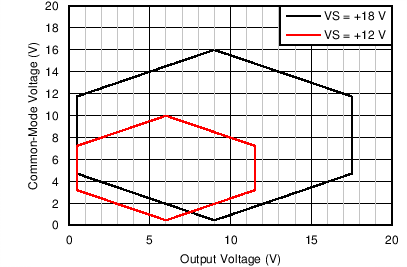

Figure 35. Input Common-Mode Voltage vs Output Voltage
INA1650 INA1651 ai_C010_SBOS818.png
REF A/B connected to 0 V

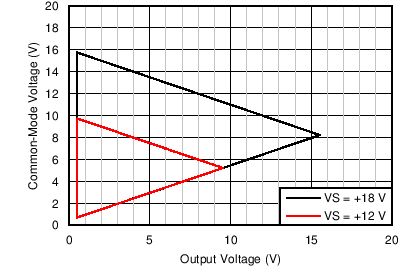

Figure 37. Input Common-Mode Voltage vs Output Voltage
INA1650 INA1651 C109_SBOS818.png

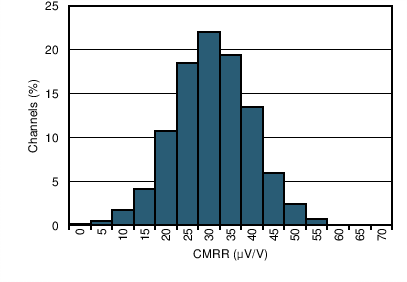

5746 Channels
VREF Pins Connected to VMID(OUT)
Figure 2. Common-Mode Rejection Ratio Distribution
INA1650 INA1651 C111_SBOS818.png
5746 Channels

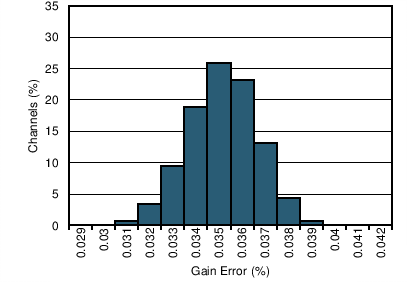

Figure 4. Gain Error Distribution
INA1650 INA1651 C009_SBOS818.png
52 Channels

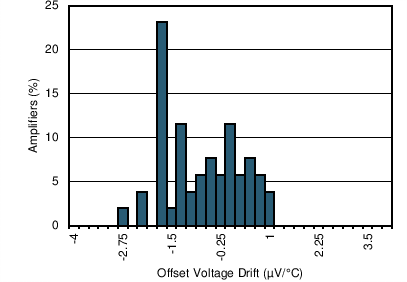

Figure 6. Offset Voltage Drift Distribution

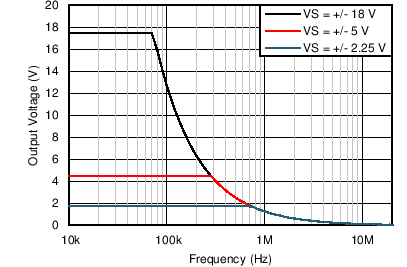

INA1650 INA1651 ai_C012_OPA1678.png
Figure 8. Maximum Output Voltage vs Frequency
INA1650 INA1651 C302_SBOS818.png

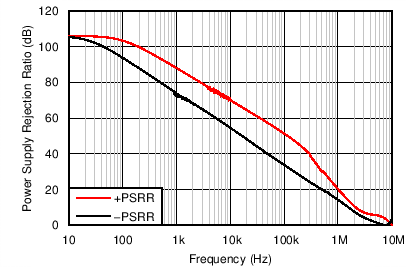

Figure 10. Power Supply Rejection Ratio vs Frequency
INA1650 INA1651 C101_SBOS818.png
3 VRMS, 90-kHz Measurement Bandwidth

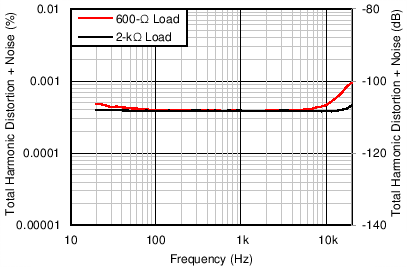

Figure 12. THD+N vs Frequency
INA1650 INA1651 C103_SBOS818.png

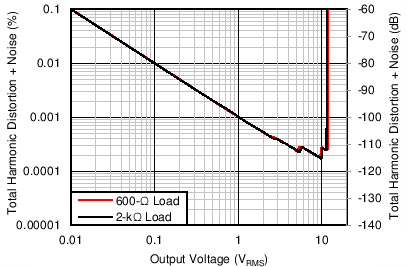

1 kHz, 90-kHz Measurement Bandwidth
Figure 14. THD+N vs Output Amplitude
INA1650 INA1651 C105_SBOS818.png

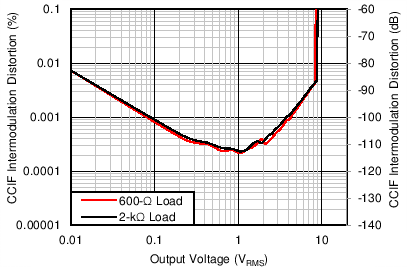

CCIF 19 kHz and 20 kHz, 90-kHz Measurement Bandwidth
Figure 16. CCIF Intermodulation Distortion vs Output Amplitude
INA1650 INA1651 C208_SBOS818.png

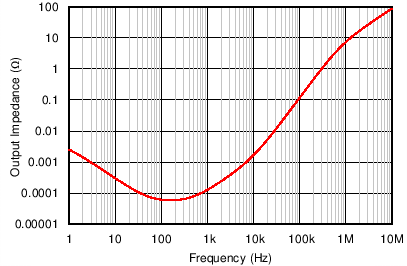

CF = 1 µF
Figure 18. Supply Divider Output Impedance vs Frequency
INA1650 INA1651 C210_SBOS818.png

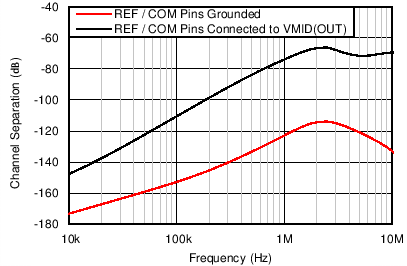

Figure 20. Channel Separation vs Frequency
INA1650 INA1651 C308_SBOS818.png
10-V Input Step

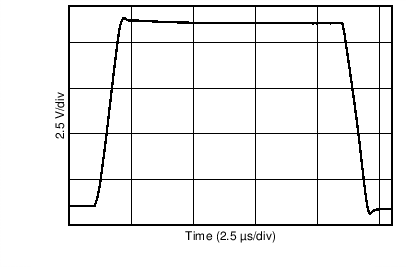

Figure 22. Large-Signal Step Response
INA1650 INA1651 C310_SBOS818.png

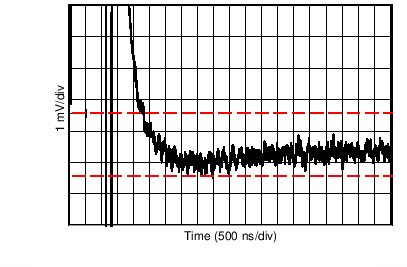

10-V Input Step, 0.01% Settling = ± 1 mV
Figure 24. Falling-Edge Settling Time
INA1650 INA1651 C017_SBOS818.png
5 Typical Units

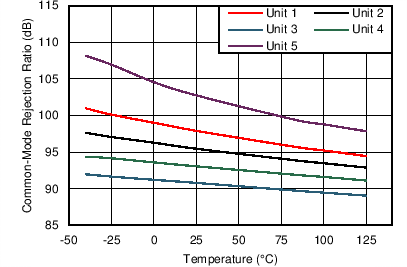

Figure 26. CMRR vs Temperature

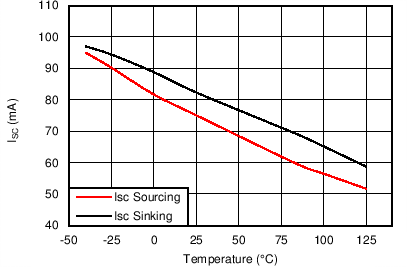

INA1650 INA1651 C006_SBOS818.png
Figure 28. Short-Circuit Current vs Temperature
INA1650 INA1651 C907_SBOS818.png

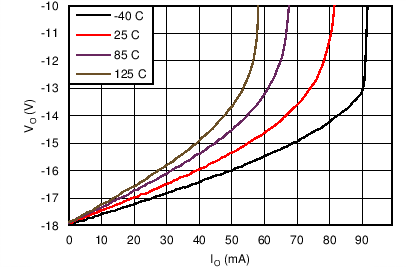

Figure 30. Negative Output Voltage vs Output Current
INA1650 INA1651 C004_SBOS818.png

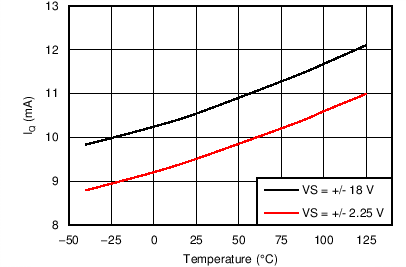

Figure 32. Power Supply Current vs Temperature
INA1650 INA1651 ai_C007_SBOS818.png
REF A/B connected to 0 V

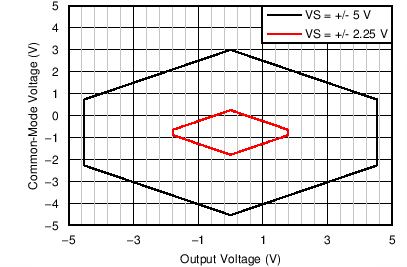

Figure 34. Input Common-Mode Voltage vs Output Voltage
INA1650 INA1651 ai_C009_SBOS818.png
REF A/B connected to VMID(OUT)

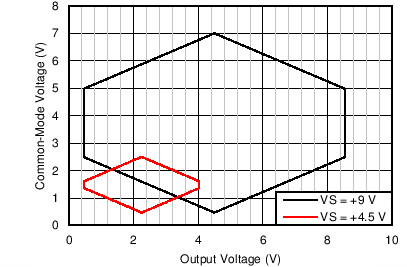

Figure 36. Input Common-Mode Voltage vs Output Voltage
INA1650 INA1651 ai_C011_SBOS818.png
REF A/B connected to 0 V

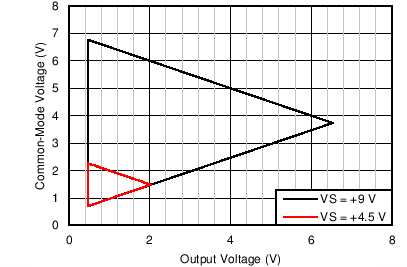

Figure 38. Input Common-Mode Voltage vs Output Voltage
