6.6 Typical Characteristics

At TA = +25°C, V+ = 5 V, VIN+ = 12 V, and RL = 125 kΩ, unless otherwise noted.
INA138 INA168 graph_1_sbos122.gif
Figure 1. Gain vs Frequency
INA138 INA168 graph_3_sbos122.gif
Figure 3. Power-Supply Rejection vs Frequency
INA138 INA168 graph_5_sbos122.gif

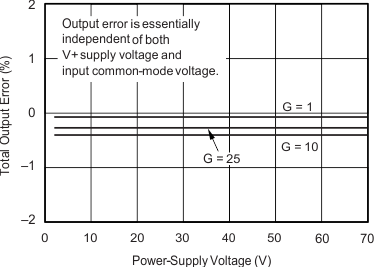

Figure 5. Total Output Error vs Power-Supply Voltage
INA138 INA168 g_stepresp01_gls174.gif
Figure 7. Step Response
INA138 INA168 graph_2_sbos122.gif
Figure 2. Common-Mode Rejection vs Frequency
INA138 INA168 graph_4_sbos122.gif

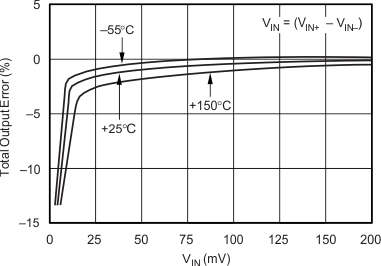

Figure 4. Total Output Error vs VIN
INA138 INA168 graph_6_sbos122.gif
Figure 6. Quiescent Current vs Power-Supply Voltage
INA138 INA168 g_stepresp02_gls174.gif
Figure 8. Step Response
